Connector Views



Component Connector End Views

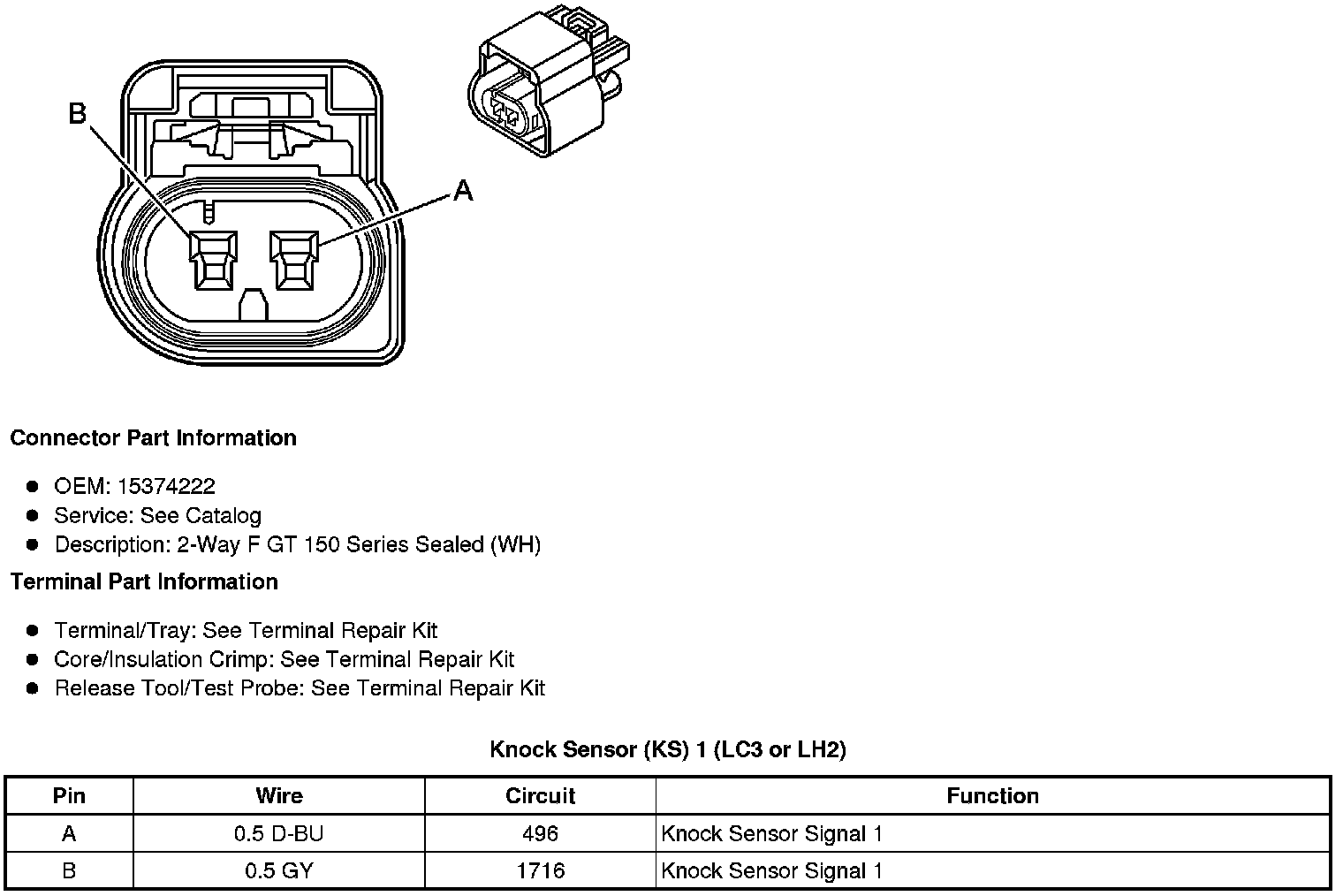

Knock Sensor (KS) 1 (LC3 or LH2)

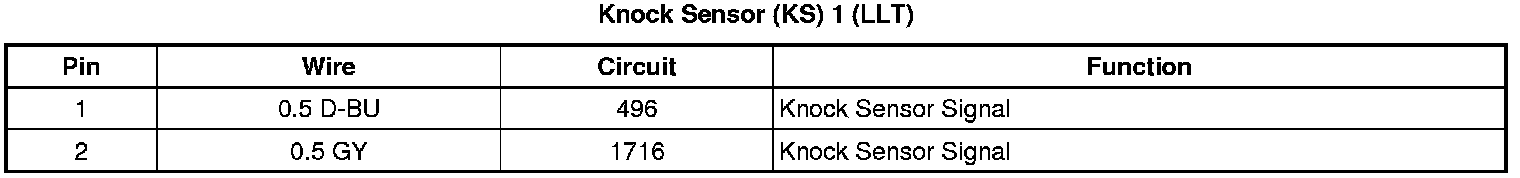

Knock Sensor (KS) 1 (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)

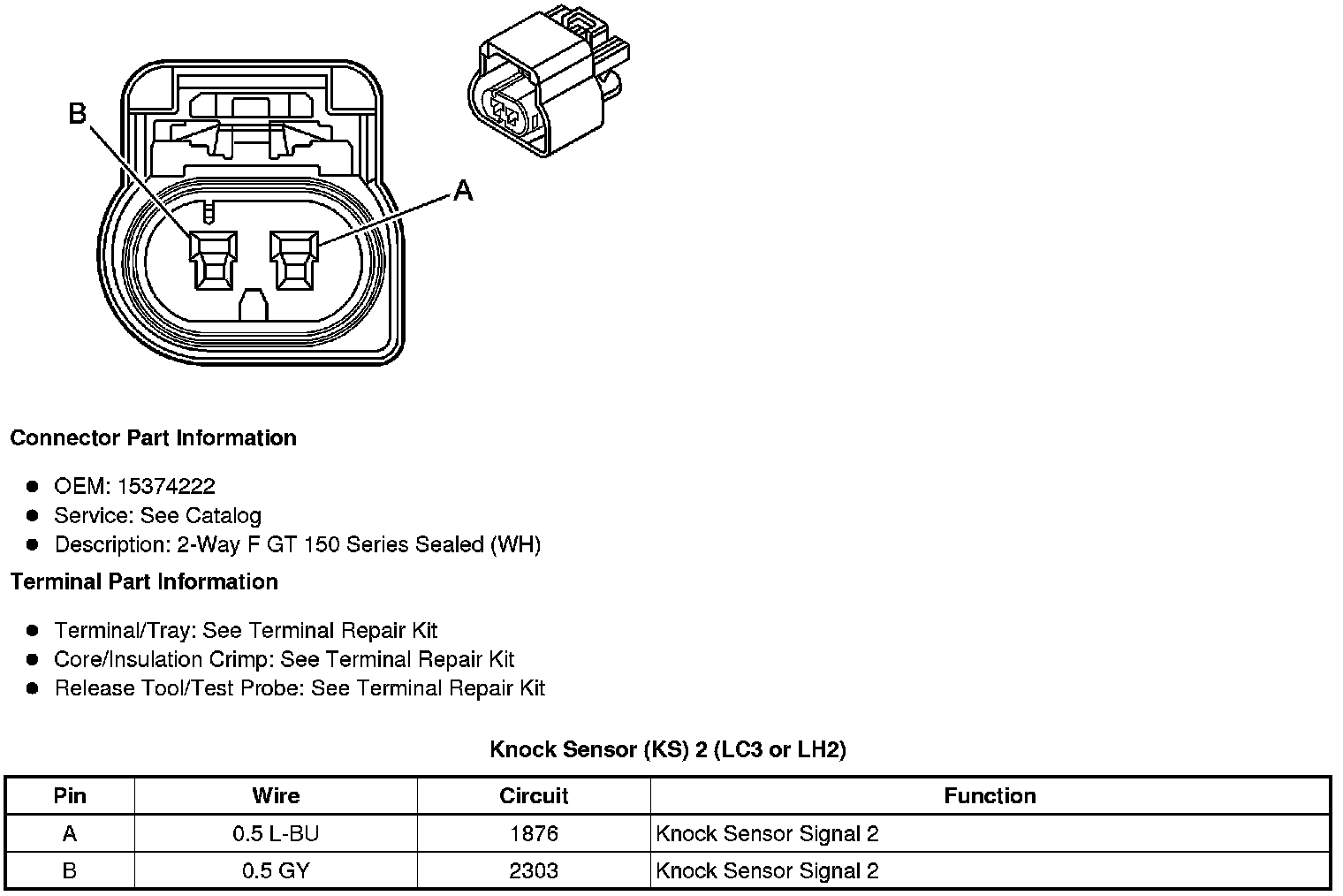

Knock Sensor (KS) 2 (LC3 or LH2)

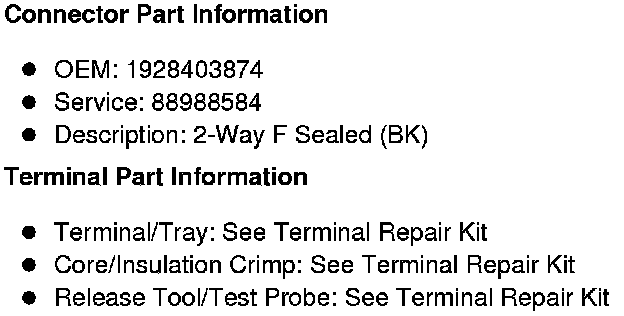

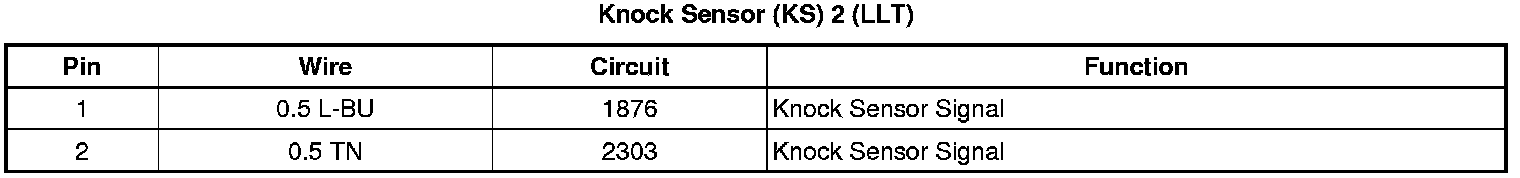

Knock Sensor (KS) 2 (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
