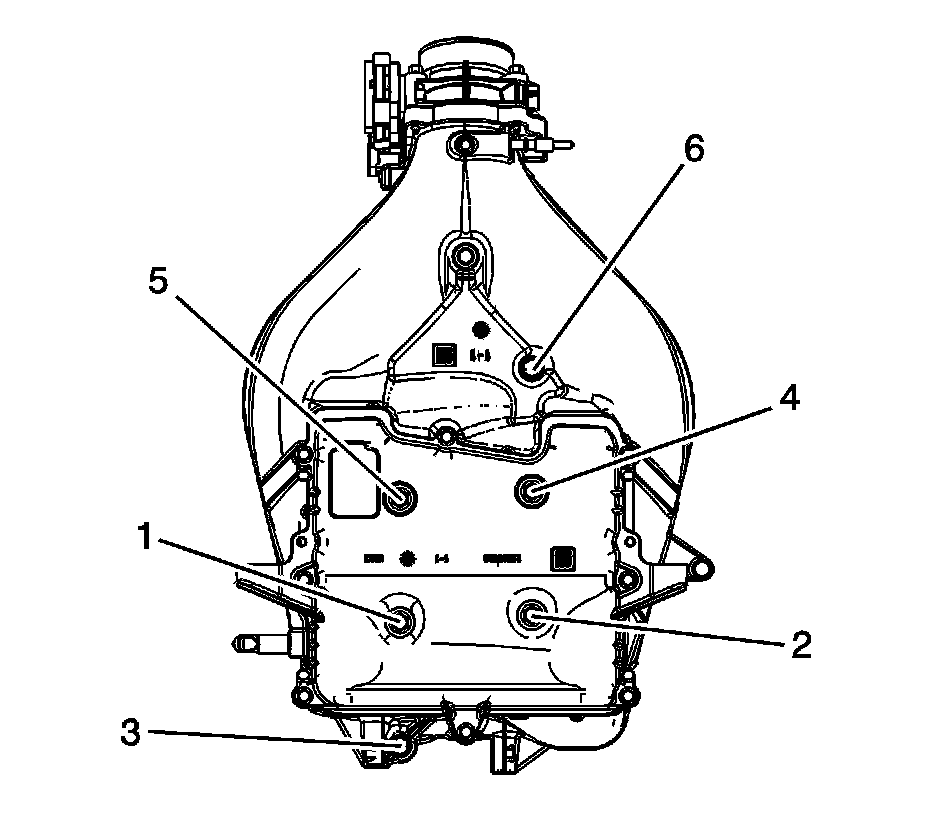

Intake Manifold

Intake Manifold
Brace Bolt - Engine Front Cover M12 65 Nm (48 lb ft.)
Brace Bolt/Ball Stud - Intake Manifold M6 10 Nm (89 lb in.)
Sight Shield Ball Stud 9 Nm (80 lb in.)
Tuning Valve Bolt 10 Nm (89 lb in.)
Upper-to-Cylinder Head Bolt - Long 23 Nm (17 lb ft.)
Upper-to-Cylinder Head Bolt - Short 23 Nm (17 lb ft.)
Upper-to-Lower Intake Manifold Bolt 23 Nm (17 lb ft.)
