Control Assembly, HVAC



Component Connector End Views

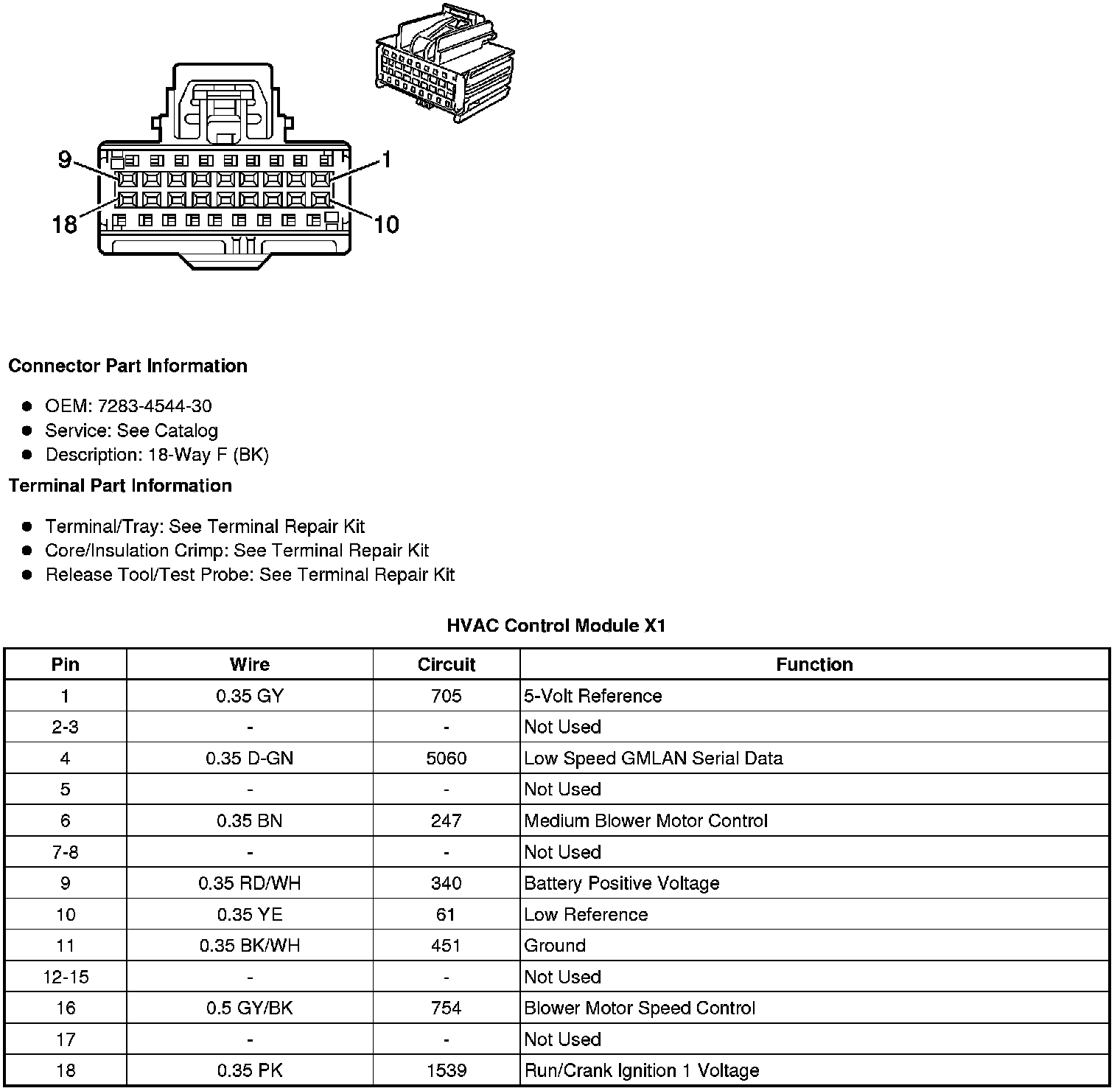

HVAC Control Module X1

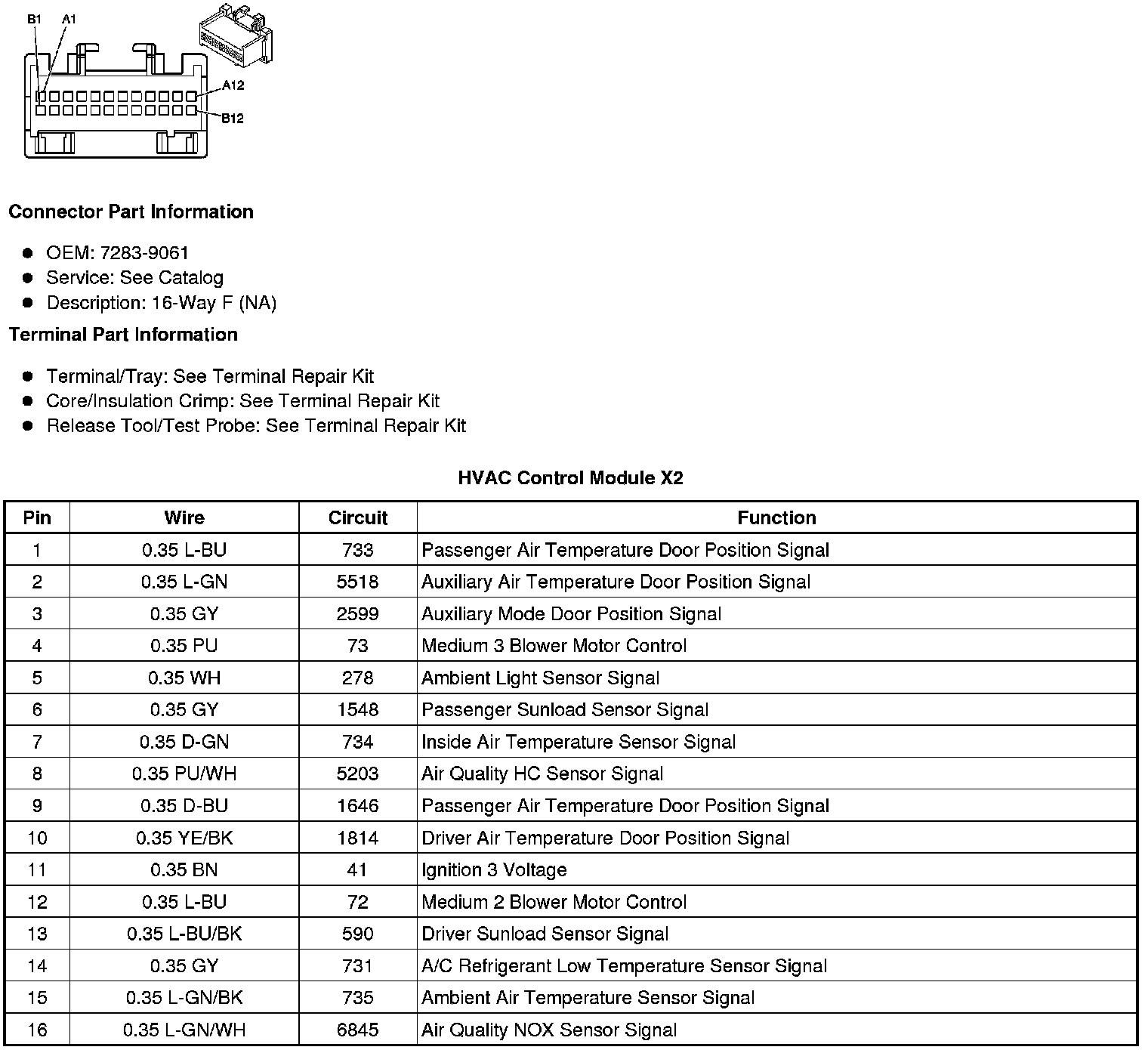

HVAC Control Module X2

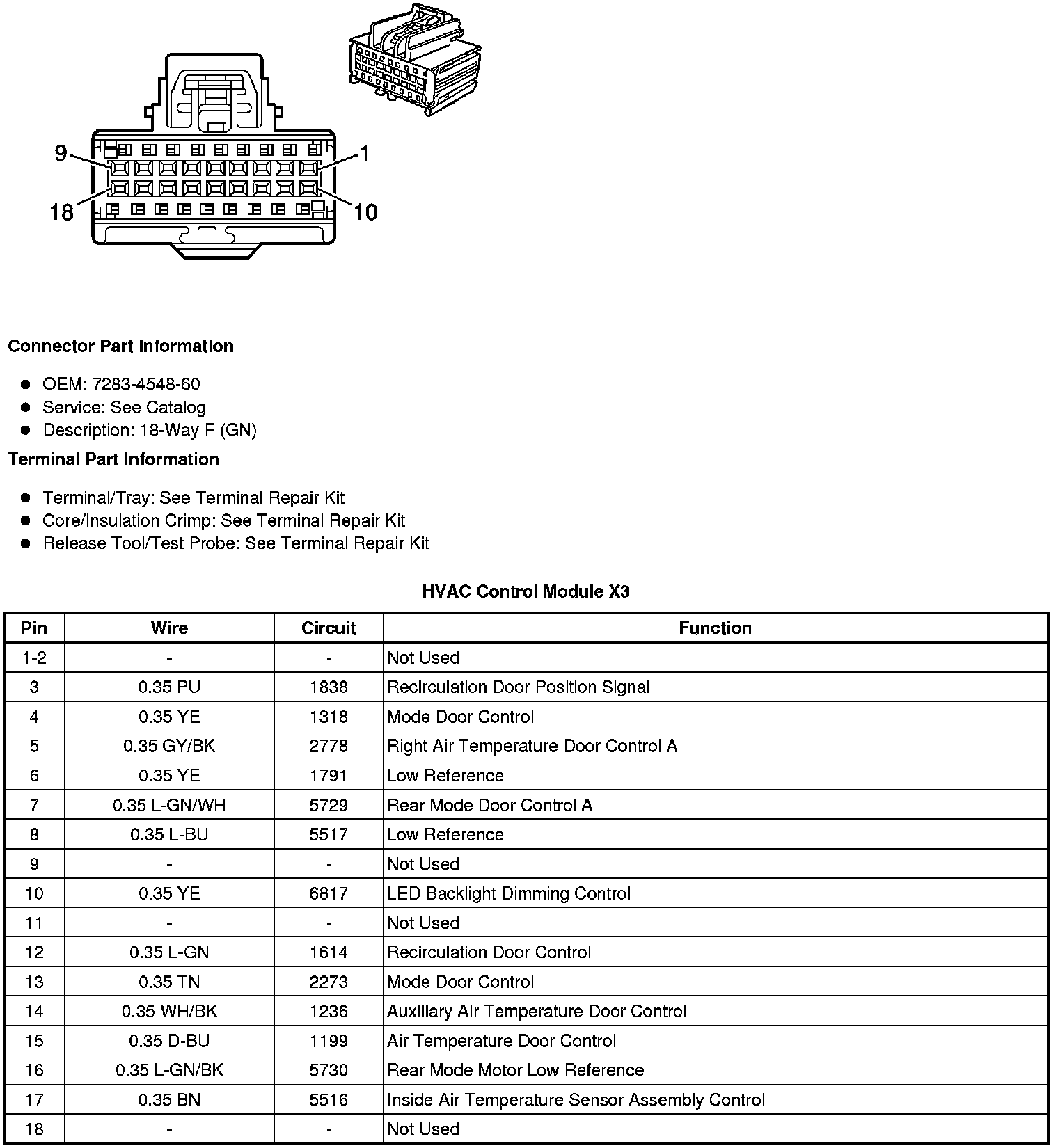

HVAC Control Module X3






HVAC Control Module - Auxiliary (KA6)
