Barometric Pressure Sensor: Diagrams

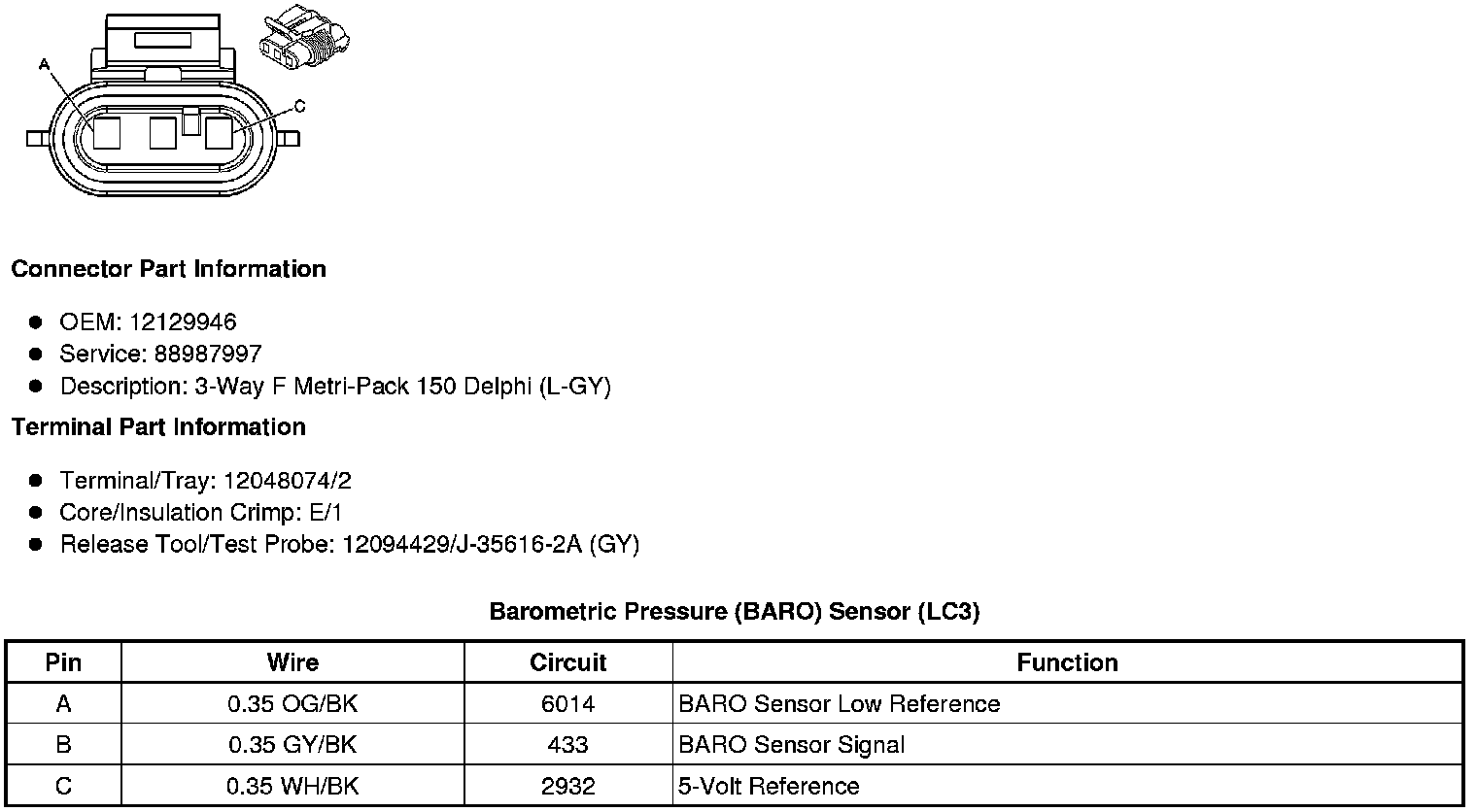

Component Connector End Views

Barometric Pressure (BARO) Sensor (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)
