Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

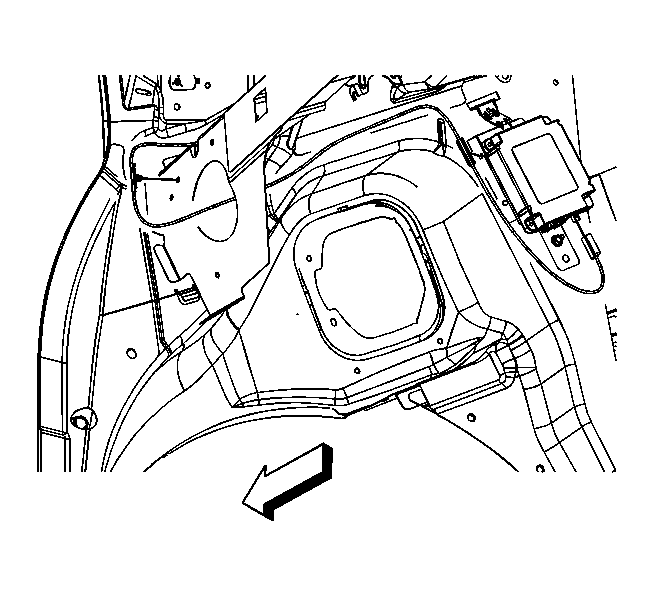

Fig 1: Removing/Installing Receiver

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the receiver and secure with the fastener.
Tighten: Tighten the fastener to 3 N.m (26 lb in).

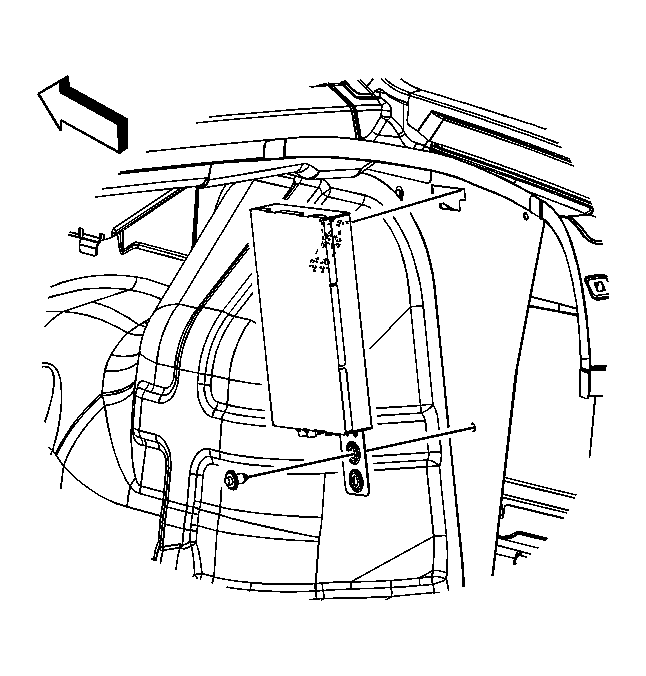

Fig 2: View Of Electrical Connectors And Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the receiver.
Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
Perform the setup procedure for the digital radio receiver. Refer to Control Module References for programming and setup information.
