Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

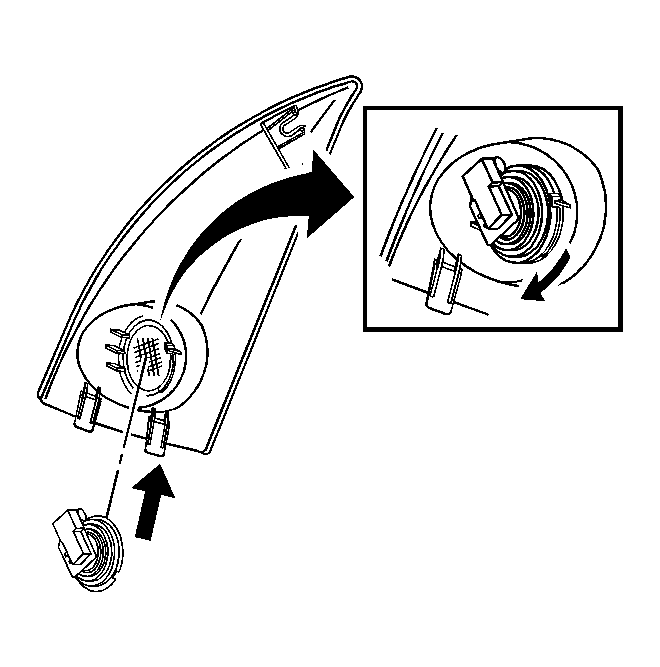

Fig 1: View Of Upper Speaker

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the upper speaker.
Install the upper speaker to the trim panel upper extension.
Install the upper extension to the door trim panel. Refer to Upper Extension Trim Panel Replacement (Front Door w/Speaker) , Upper Extension Trim Panel Replacement (Rear Door) or Upper Extension Trim Panel Replacement (Front Door w/o Speaker) .
