Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

Install the antenna cable at the radio.
Install the radio wire harness connector.

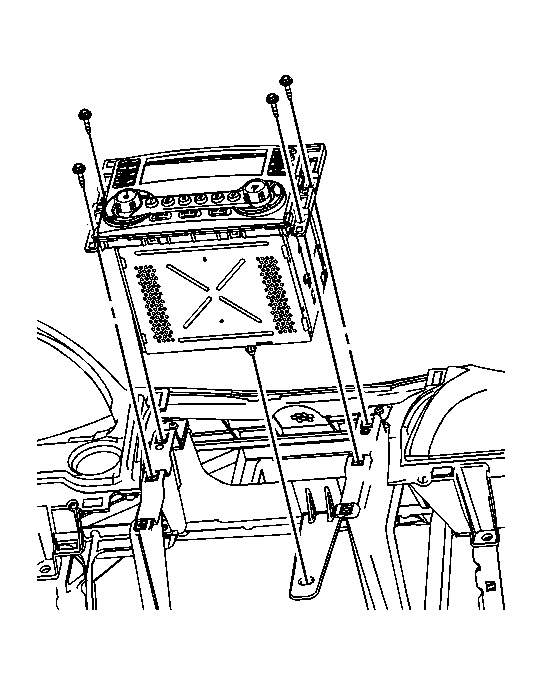

Fig 1: View Of Radio Mounting Screws

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension.

Install the radio.

NOTE: Refer to Fastener Notice .

Install the radio screws.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
Install the HVAC control module. Refer to HVAC Control Module Replacement .
Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
Program the radio after replacement. Refer to Control Module References .
