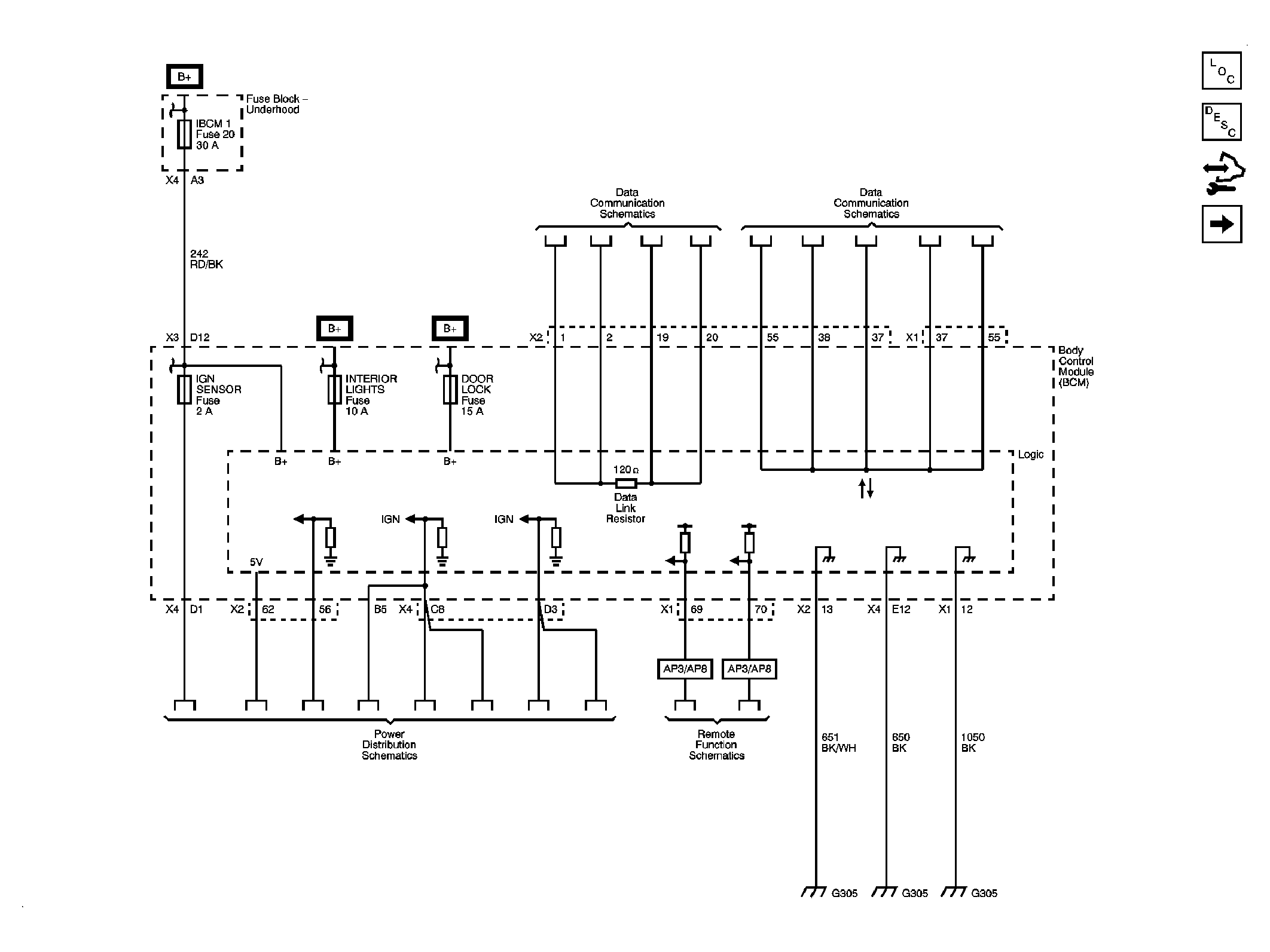

Fig 1: Power, Ground And Serial Data - Schematic
Courtesy of GENERAL MOTORS CORP.

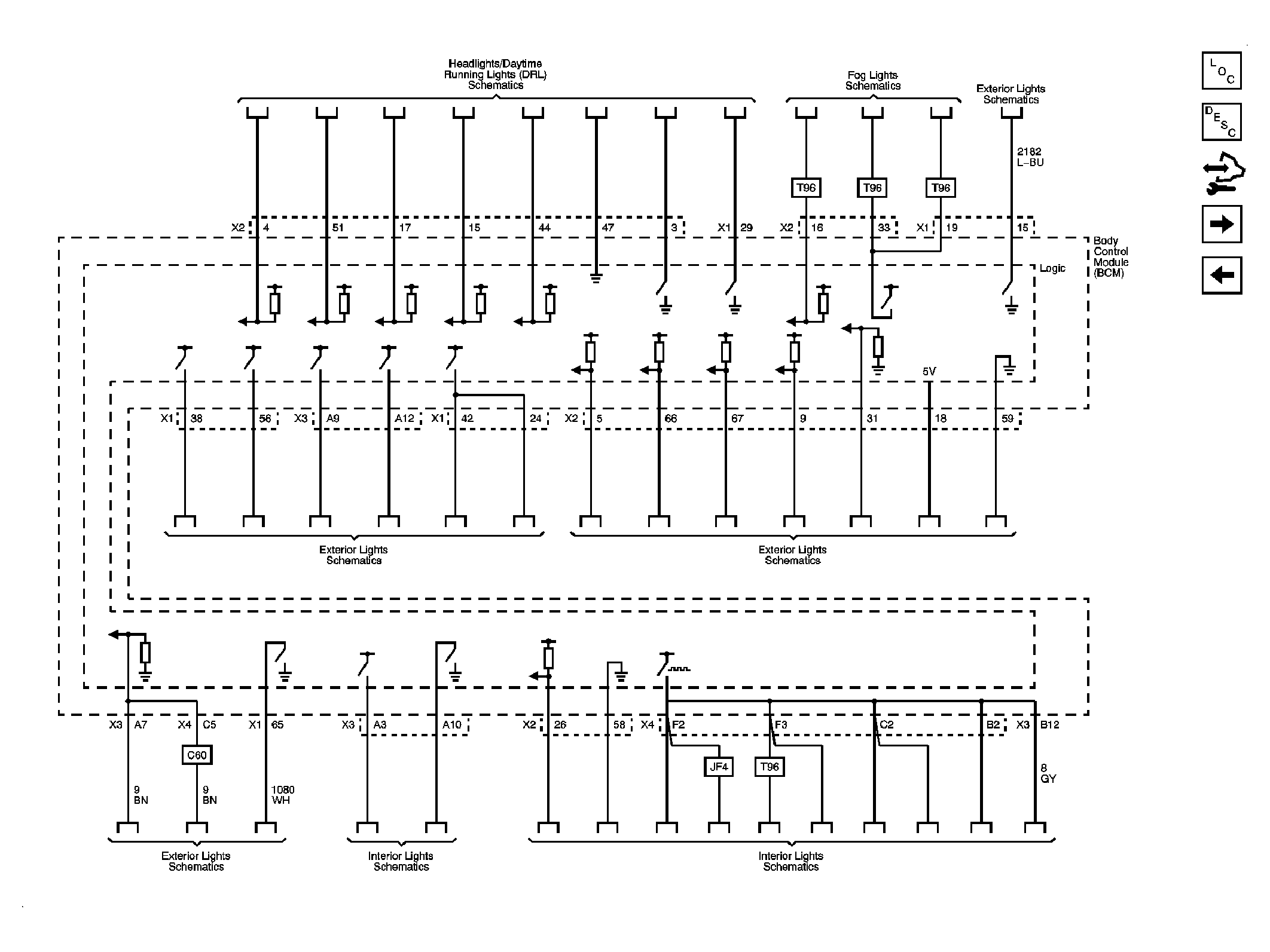

Fig 2: Controlled/Monitored Subsystem References (1 Of 4) - Schematic
Courtesy of GENERAL MOTORS CORP.

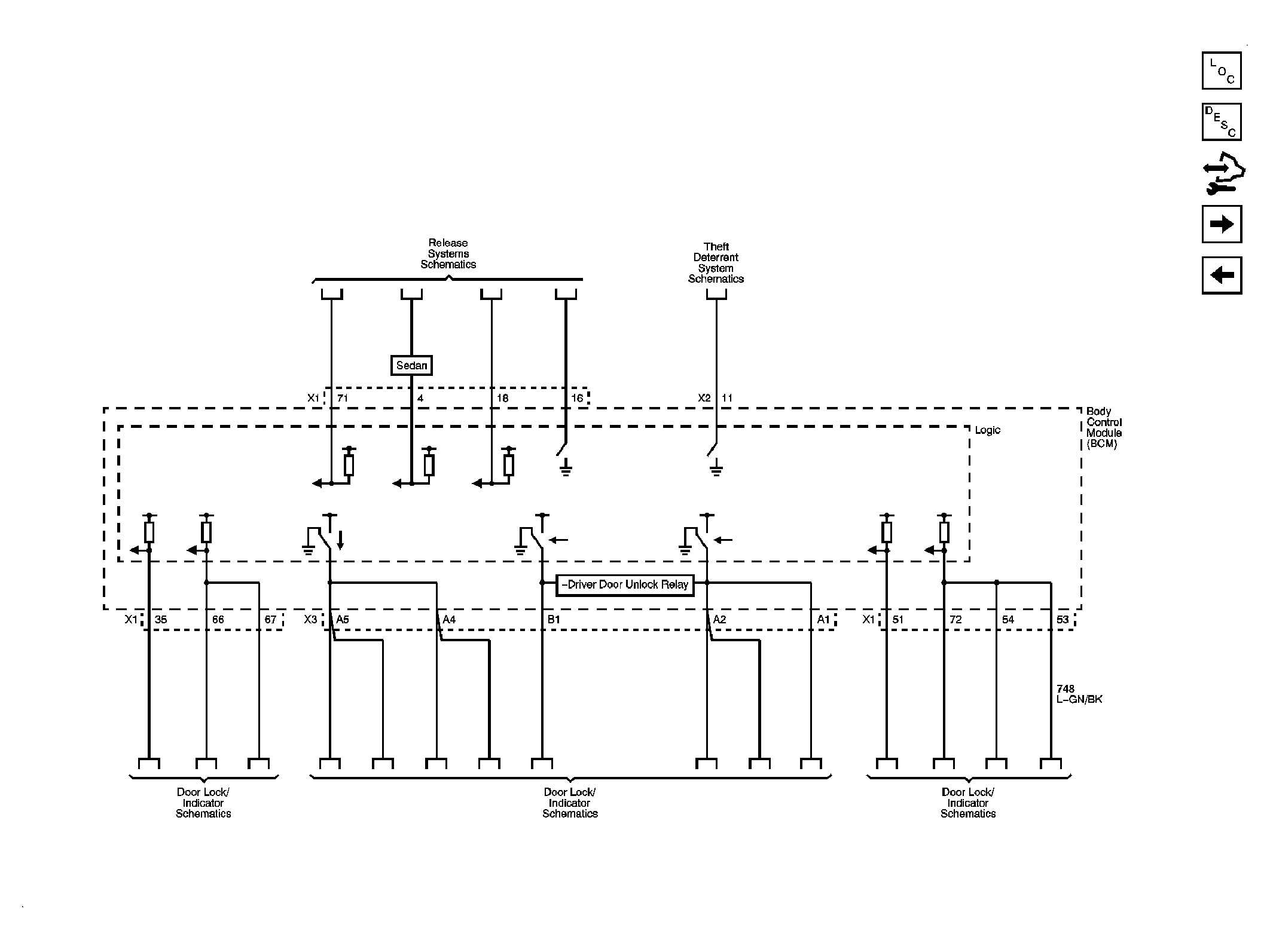

Fig 3: Controlled/Monitored Subsystem References (2 Of 4) - Schematic
Courtesy of GENERAL MOTORS CORP.

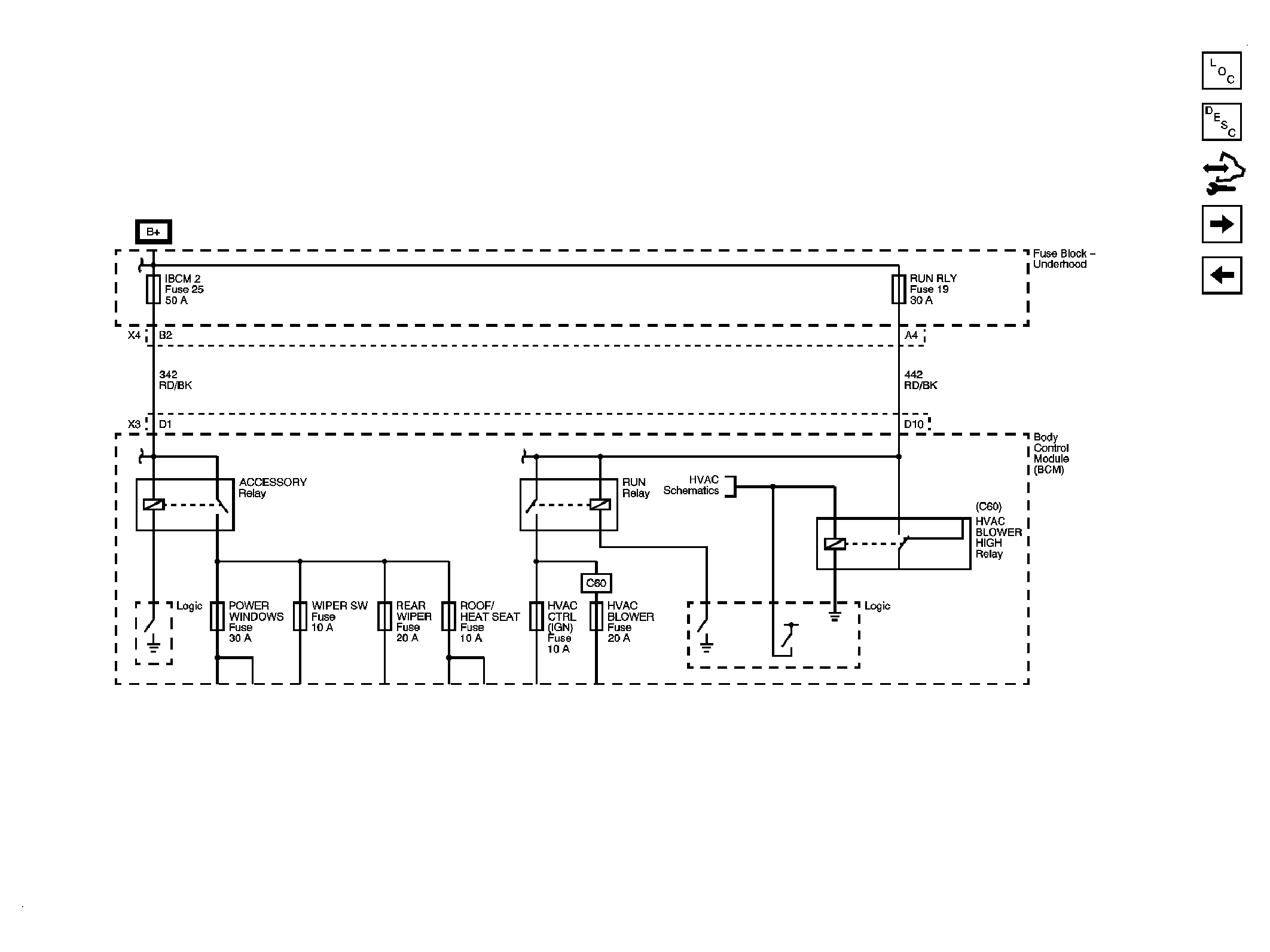

Fig 4: Controlled/Monitored Subsystem References (3 Of 4) - Schematic
Courtesy of GENERAL MOTORS CORP.

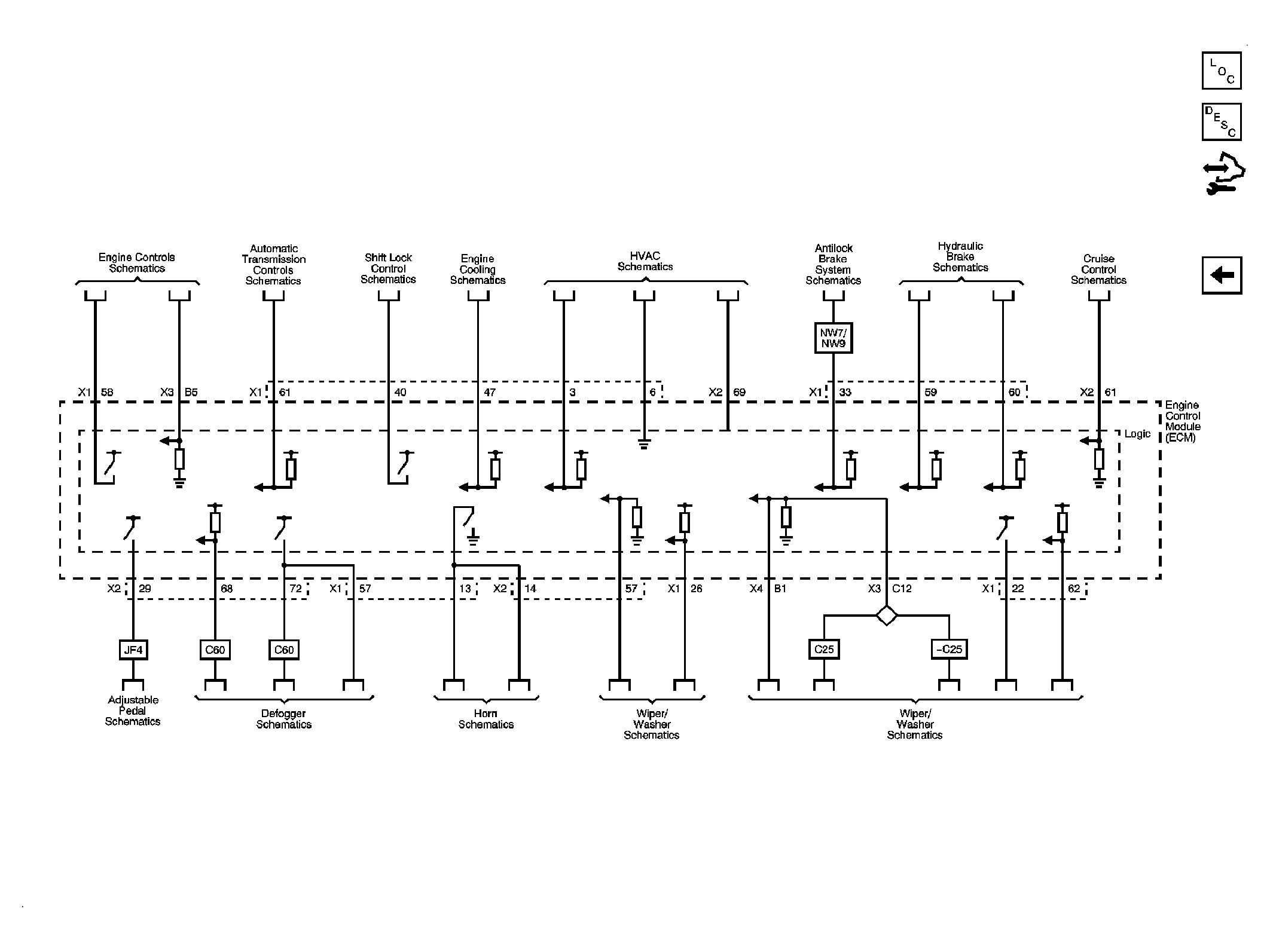

Fig 5: Controlled/Monitored Subsystem References (4 Of 4) - Schematic
