Wiring Systems And Power Management - Electrical Center Identification View & Component Connector End View Index
>>
Electrical Center Identification View
>>
Fuse Block - Underhood Bottom View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse Block - Underhood Bottom View

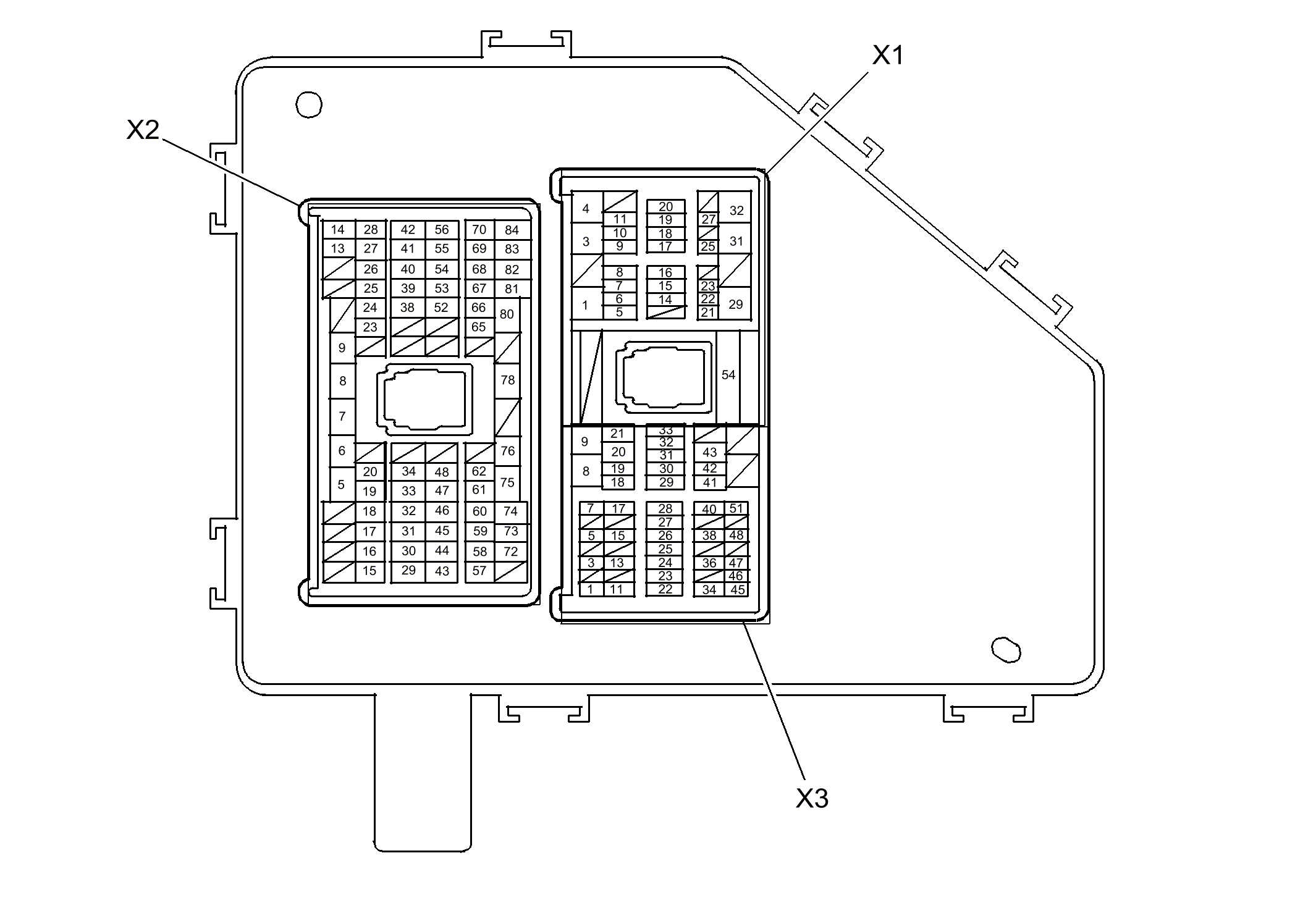

Fig 1: Fuse Block - Underhood Bottom View
Courtesy of GENERAL MOTORS CORP.
