Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

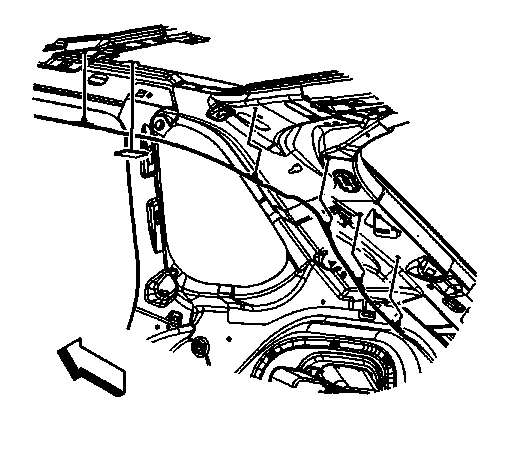

Fig 1: View Of Coaxial Cable And Inner Body Side

Courtesy of GENERAL MOTORS CORP.

Install the coaxial cable to inner body side.

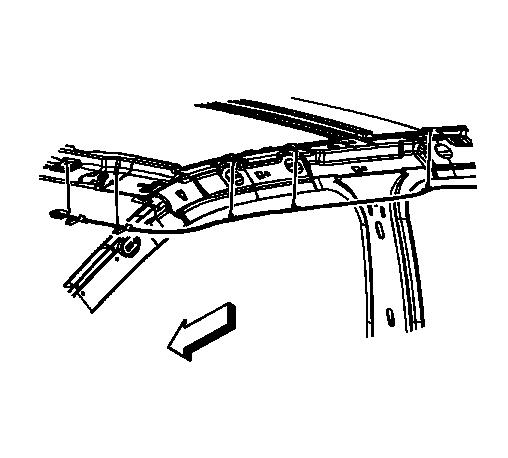

Fig 2: View Of Coaxial Cable And Front Roof Bow

Courtesy of GENERAL MOTORS CORP.

Install the coaxial cable to the front roof bow.
Install the rear window shelf panel. Refer to Rear Window Shelf Trim Panel Replacement (Sedan) .
Install the headliner. Refer to Headlining Trim Panel Replacement (Sedan) .
