Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

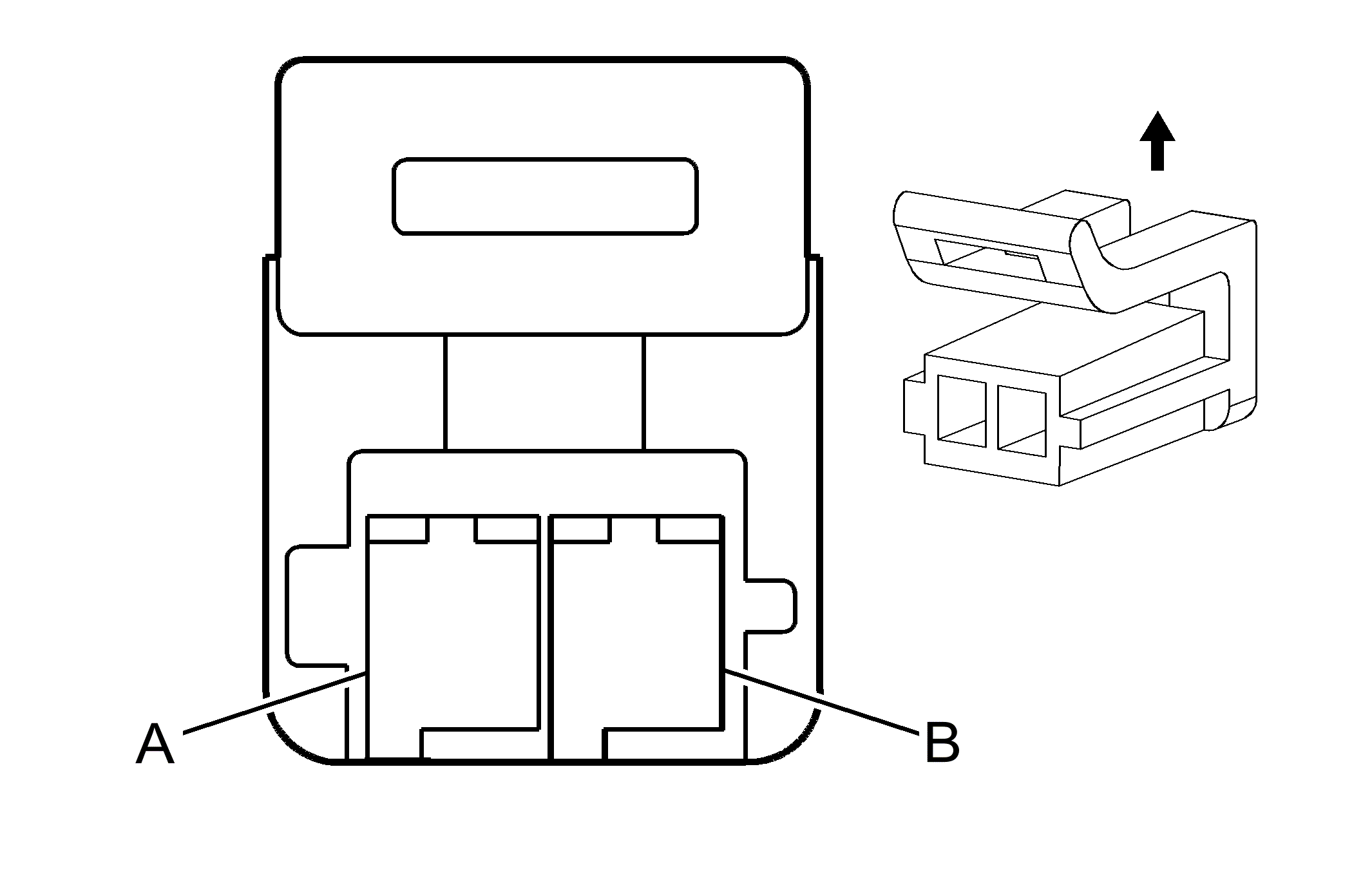

Fig 1: Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side Connector End View
GM95784Courtesy of GENERAL MOTORS CORP.
Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side

Pin Wire Circuit Function
A 0.5 RD 839 Ignition 1 Voltage
B 0.35 TN 418 Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Control
Connector Part Information
  • OEM: 12162202
  • Service: Non-Serviceable
  • Description: 2-Way F Micro-Pack 150.2 Series P2S (BU)
Terminal Part Information
  • Terminal: Non-Serviceable
  • Core/Insulation Crimp: Non-Serviceable
  • Release Tool/Test Probe: Non-Serviceable
