Fuse Block - Rear Top View
WARNING:
This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

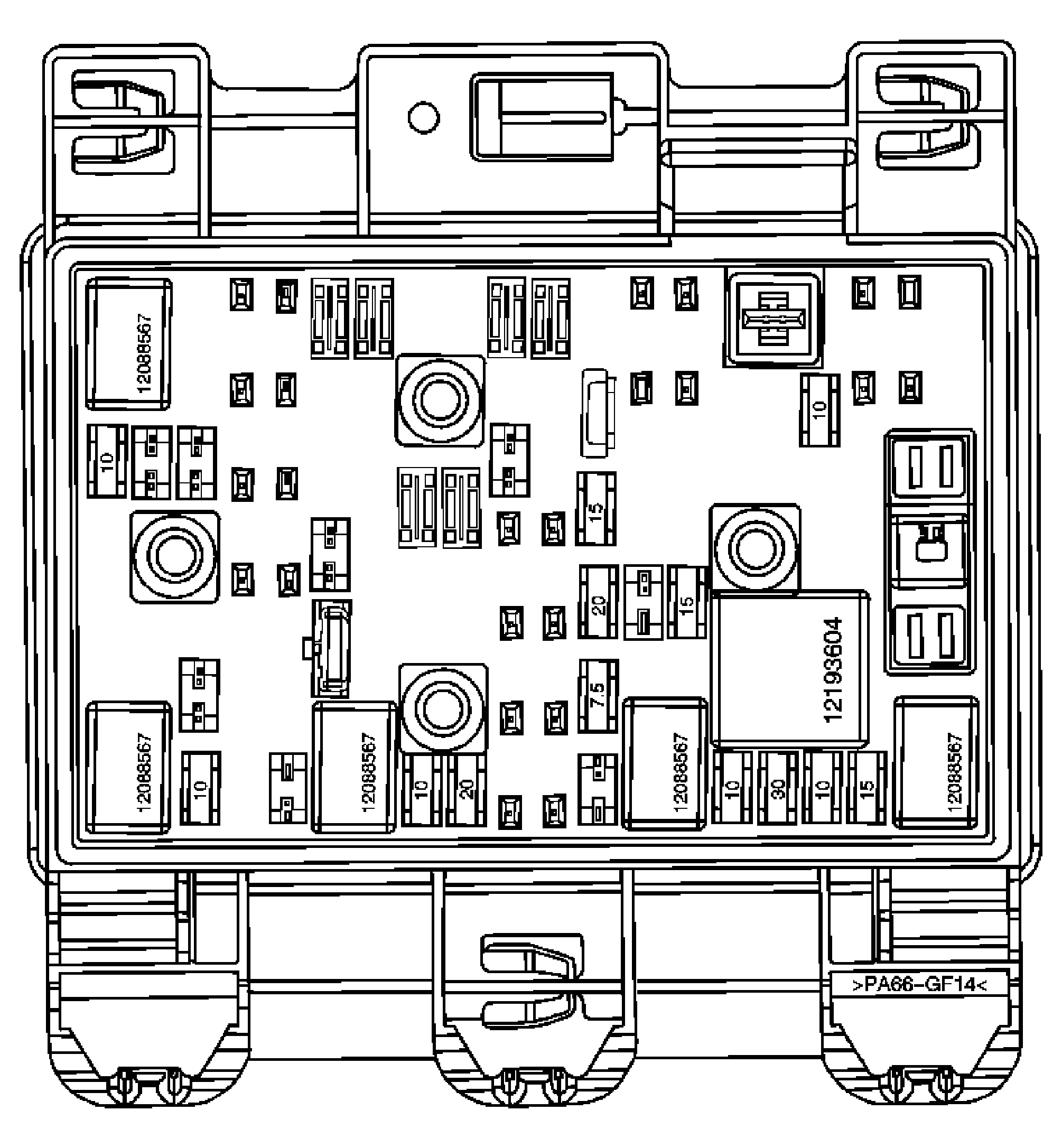

Fig 1: Fuse Block - Rear Top View
Courtesy of GENERAL MOTORS CORP.
