Installation Procedure

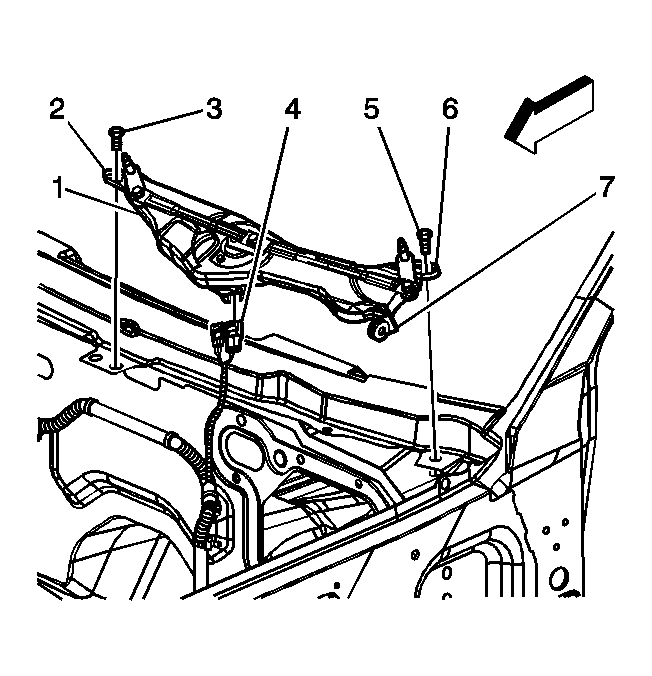

    Fig 1: View Of Windshield Wiper Motor Components
    GM776830Courtesy of GENERAL MOTORS CORP.
  1. Place the wiper motor module into the vehicle.
  2. Connect the wiper motor module electrical connector (4).
  3. Align the wiper module locator hole (7) to the pin located inside rail of the driver side fender.
  4. Align the locator hole (6) to the hole in the pillar flange.
    5. NOTE: Refer to Fastener Notice .
  5. Install the outer bolt (5).

    Tighten:  Tighten the outer bolt to 10 N.m (89 lb in).

  6. Install the center bolt (3).

    Tighten:  Tighten the center bolt to 10 N.m (89 lb in).

  7. Install the air inlet grille (1,3). Refer to Air Inlet Grille Panel Replacement .
  8. Install the wiper arm assemblies. Refer to Windshield Wiper Arm Replacement .
  9. Install the wiper motor fuses to the underhood fuse block.
