Front of Vehicle/Engine Compartment Component Views
| Callout | Component Name |
|---|---|
| 1 | Headlamp Low Beam - Left (-TT6/TT7/TT8) |
| 2 | Repeater Lamp - Left |
| 3 | Headlamp High Beam - Left |
| 4 | Park Lamp - Left Front |
| 5 | Sidemarker Lamp - Left Front |
| 6 | Turn Signal Lamp - Left Front |
| 7 | Fog Lamp - Left Front |
| 8 | Heated Washer Nozzle - Left (LC3/XA7) |
| 9 | Repeater Lamp - Right |
| 10 | Headlamp Low Beam - Right (-TT6/TT7/TT8) |
| 11 | Headlamp High Beam - Right |
| 12 | Heated Washer Nozzle - Left (LC3/XA7) |
| 13 | Park Lamp - Right Front |
| 14 | Turn Signal Lamp - Right Front |
| 15 | Fog Lamp - Right Front |
| 16 | Sidemarker Lamp - Right Front |

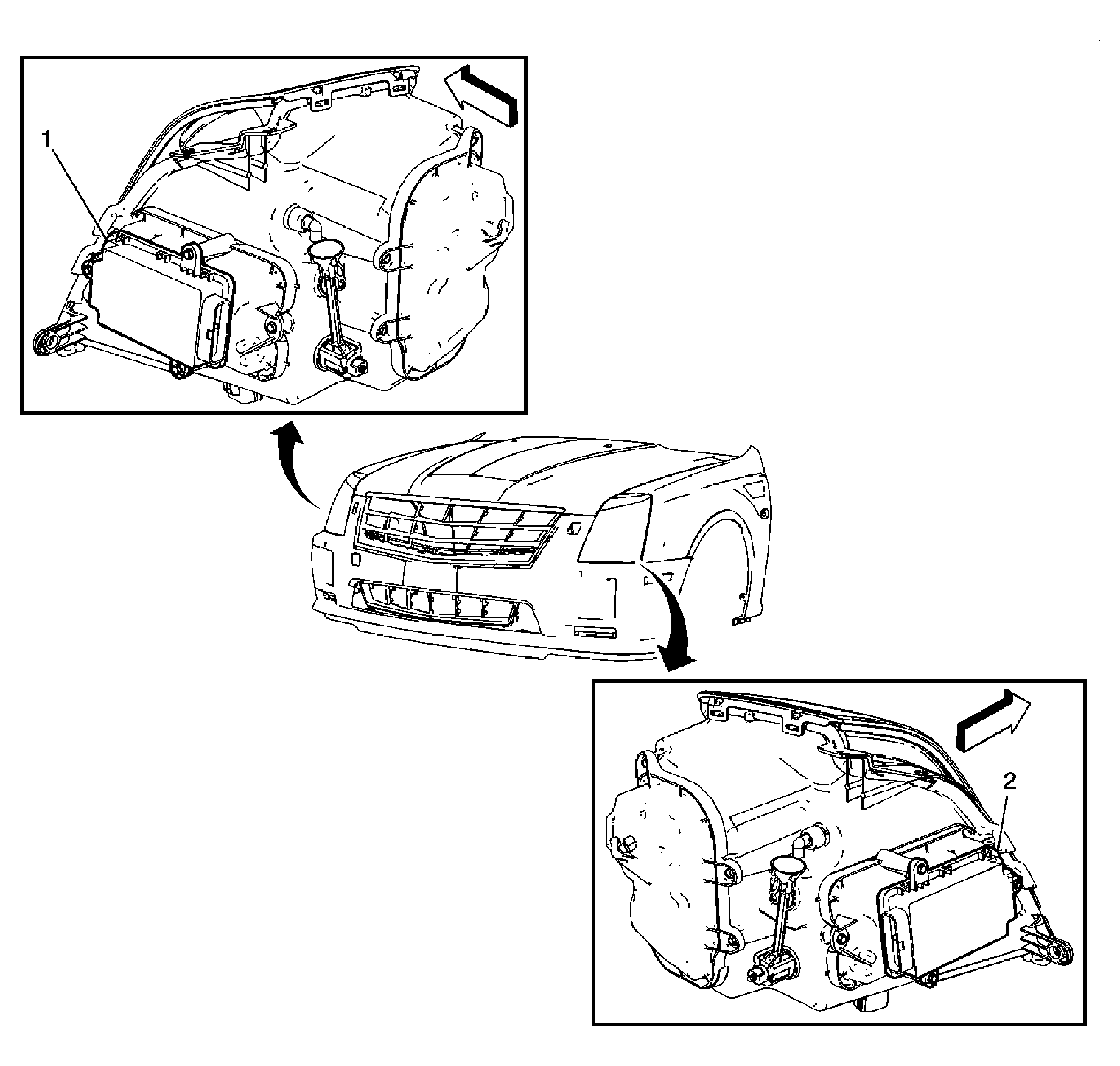

| Callout | Component Name |
|---|---|
| 1 | Headlamp Ballast - Right (TT6/TT7/TT8) |
| 2 | Headlamp Ballast - Left (TT6/TT7/TT8) |

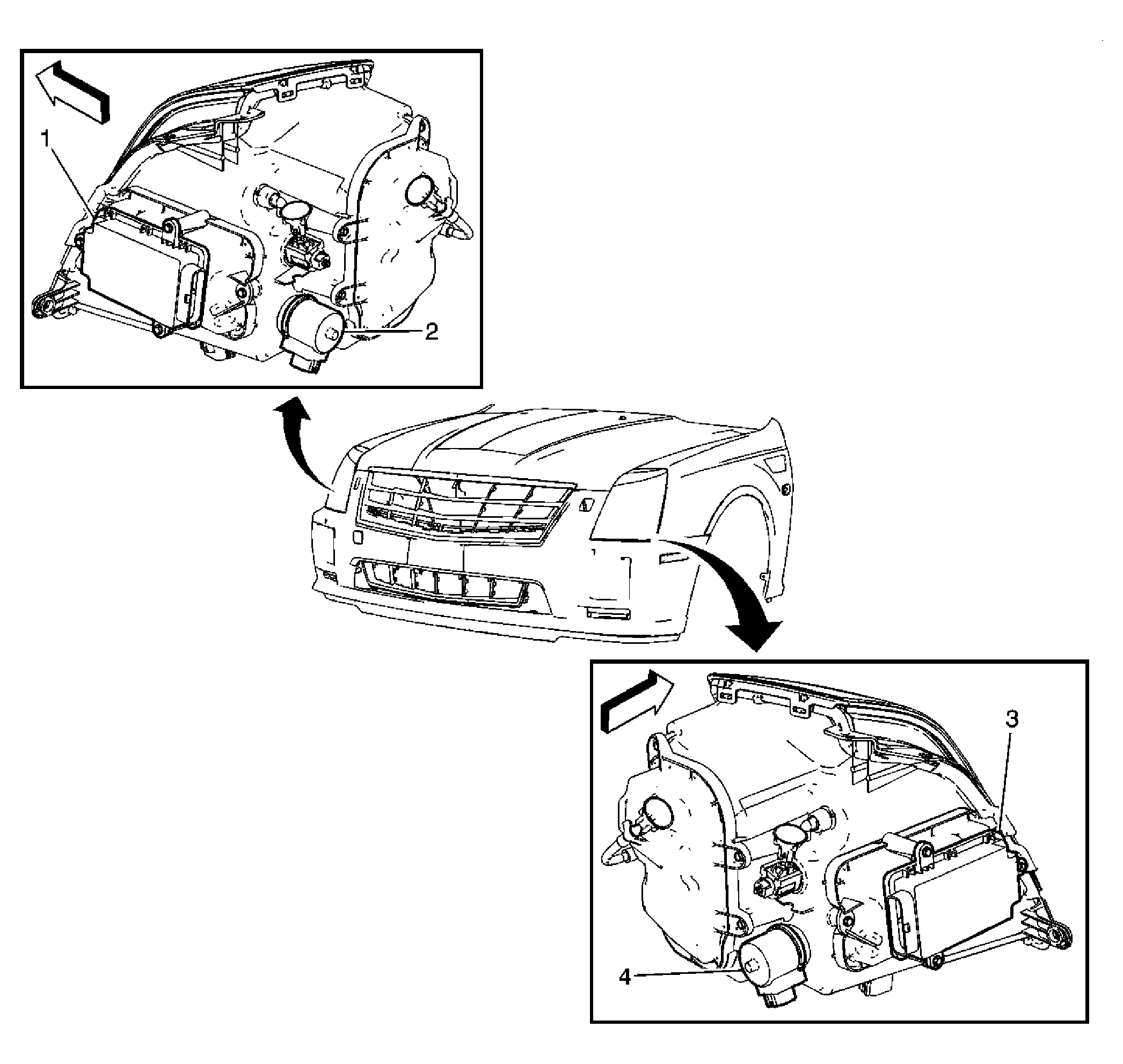

| Callout | Component Name |
|---|---|
| 1 | Headlamp Ballast - Right (TT6/TT7/TT8) |
| 2 | Headlamp Leveling Actuator - Right (TR7) |
| 3 | Headlamp Ballast - Left (TT6/TT7/TT8) |
| 4 | Headlamp Leveling Actuator - Left (TR7) |
| Callout | Component Name |
|---|---|
| 1 | Ambient Air Temperature Sensor |
| 2 | Hood Ajar Switch |
| 3 | Distance Sensing Cruise Control Module (K59) |
| 4 | Tire Pressure Receiver - Right Front (UH3) |
| 5 | Headlamp Leveling Module (TR7) |
| 6 | Air Quality Sensor (K14) |
| 7 | Cooling Fans-Standard (LH2/LY7) |
| 8 | Tire Pressure Receiver - Left Front (UH3) |
| 9 | Horn Assembly-Dual |
| 10 | Cooling Fans-Heavy Duty (LH2) |
| Callout | Component Name |
|---|---|
| 1 | Windshield Washer Fluid Level Switch |
| 2 | Headlamp Washer Fluid Pump (CE4) |
| 3 | Windshield Washer Fluid Pump |
| 4 | Fuse Block-Underhood |
| 5 | Battery |
| 6 | Battery Current Sensor |
| 7 | Brake Fluid Level Switch |
| 8 | Coolant Level Switch |
| 9 | Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor |
| 10 | Engine Control Module (ECM) (LH2/LC3) |
| 11 | Inflatable Restraint Front End Sensor - Left |
| 12 | Electronic Brake Control Module (EBCM) |
| 13 | Brake Fluid Pressure Sensor |
| 14 | Brake Pressure Modulator Valve (BPMV) |
| 15 | Inflatable Restraint Front End Sensor - Right |

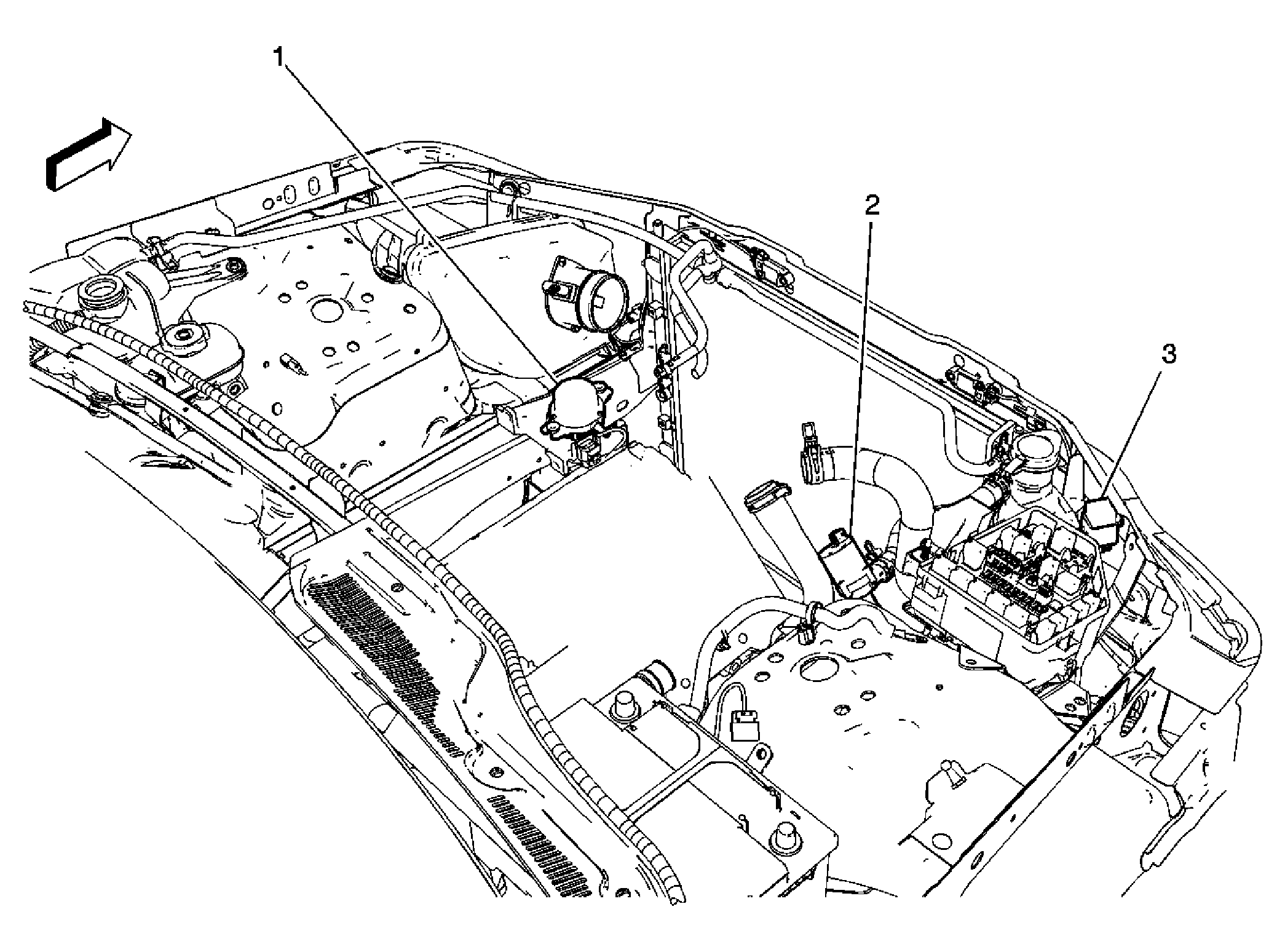

| Callout | Component Name |
|---|---|
| 1 | After Boil Heater Pump (LH2 +V92/V03) |
| 2 | Charge Air Cooler (CAC) Coolant Pump (LC3) |
| 3 | Headlamp Washer Fluid Pump Relay (CE4) |
