Instrument Panel/Center Console Component Views
| Callout | Component Name |
|---|---|
| 1 | Head-Up Display (HUD) (UV6) |
| 2 | Speaker - Left Front I/P |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Turn Signal/Multifunction Switch |
| 5 | Inflatable Restraint Steering Wheel Module |
| 6 | Windshield Wiper/Washer Switch Assembly |
| 7 | Sunload Sensor Assembly |
| 8 | Speaker - Center I/P |
| 9 | Radio/Navigation Unit |
| 10 | Speaker - Right Front I/P |
| 11 | Inflatable Restraint I/P Module |
| 12 | HVAC Control Module |
| 13 | Heated Seat Switch-Left Rear |
| 14 | Heated Seat Switch-Right Rear |
| 15 | Speaker - Rear Console (UY5) |
| 16 | Auxiliary Power Outlet - Rear Ashtray |
| 17 | HVAC Control Module - Rear Auxiliary (KA6) |
| 18 | Steering Wheel Controls - Right |
| 19 | Steering Wheel Controls - Left |
| 20 | Data Link Connector (DLC) |
| 21 | I/P Dimmer/HUD Switches (UV6) |
| Callout | Component Name |
|---|---|
| 1 | Mode Actuator-Auxiliary |
| 2 | Hazard Switch |
| 3 | Air Temperature Sensor-Inside |
| 4 | Ignition Mode Switch |
| 5 | Traction Control Switch |
| 6 | Audio/Video Phono Connectors |
| 7 | Auxiliary Power Outlet - Console |
| 8 | Keyless Entry Antenna |
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint I/P Module |
| 2 | Speaker - Left Front I/P |
| 3 | Radio/Navigation Unit |
| 4 | Turn Signal/Multifunction Switch |
| 5 | Speaker - Center I/P |
| 6 | Sunload Sensor Assembly |
| 7 | Inflatable Restraint Steering Wheel Module |
| 8 | Instrument Panel Cluster (IPC) |
| 9 | Speaker - Right Front I/P |
| 10 | Head-Up Display (HUD) (UV6) |
| 11 | I/P Dimmer/HUD Switches (UV6) |
| 12 | Data Link Connector (DLC) |
| 13 | Windshield Wiper/Washer Switch Assembly |
| 14 | Steering Wheel Controls - Right |
| 15 | Steering Wheel Controls - Left |
| 16 | Heated Seat Switch-Right Rear |
| 17 | HVAC Control Module - Rear Auxiliary (KA6) |
| 18 | Auxiliary Power Outlet - Rear Ashtray |
| 19 | Speaker - Rear Console (UY5) |
| 20 | Heated Seat Switch-Left Rear |
| 21 | HVAC Control Module |

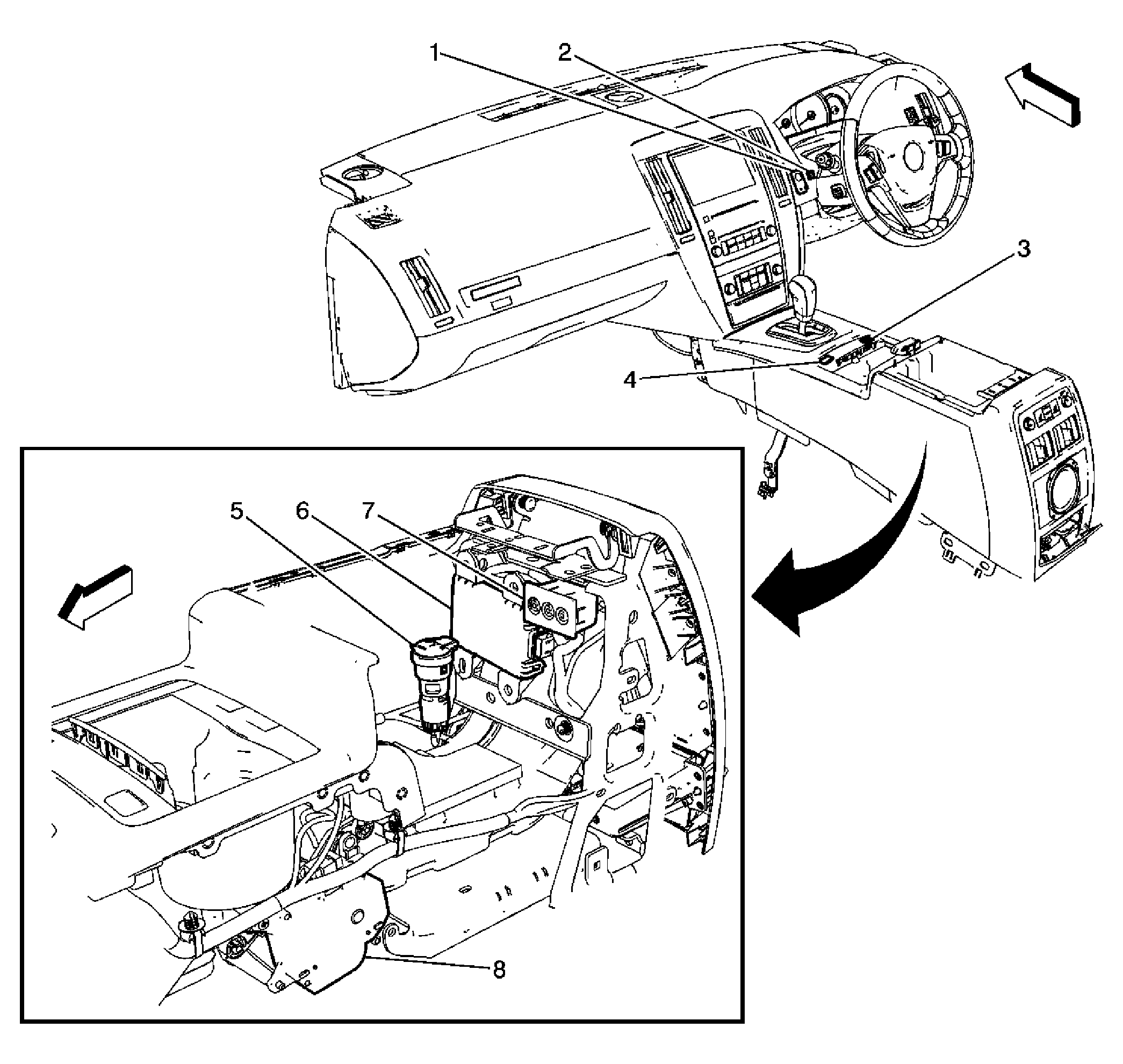

| Callout | Component Name |
|---|---|
| 1 | Ignition Mode Switch |
| 2 | Air Temperature Sensor-Inside |
| 3 | Traction Control Switch |
| 4 | Hazard Switch |
| 5 | Auxiliary Power Outlet - Console |
| 6 | Keyless Entry Antenna |
| 7 | Audio/Video Phono Connectors |
| 8 | Mode Actuator-Auxiliary |
