Engine Components - Right Side (LSA)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFW or LFX)B26 Crankshaft Position Sensor (LSA)
2: M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X2 (LFW or LFX)M64 Starter Motor X2 (LSA)
3: T8H Ignition Coil 8 (LSA) T8H Ignition Coil 8 (LSA)
4: T8F Ignition Coil 6 T8F Ignition Coil 6 (LFW or LFX)T8F Ignition Coil 6 (LSA)
5: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFW or LFX)T8D Ignition Coil 4 (LSA)
6: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFW or LFX)T8B Ignition Coil 2 (LSA)
7: Q36 Supercharger Bypass Solenoid Valve (LSA) Q36 Supercharger Bypass Solenoid Valve (LSA)
8: Q36 Supercharger Bypass Solenoid Valve (LSA) Q36 Supercharger Bypass Solenoid Valve (LSA)
9: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
10: B68B Knock Sensor 2 B68B Knock Sensor 2
11: B35C Engine Oil Level and Temperature Sensor (LSA) B35C Engine Oil Level and Temperature Sensor (LSA)
12: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFW or LFX)B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LSA)
13: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LSA)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (MG9)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (MV7)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (MYA)

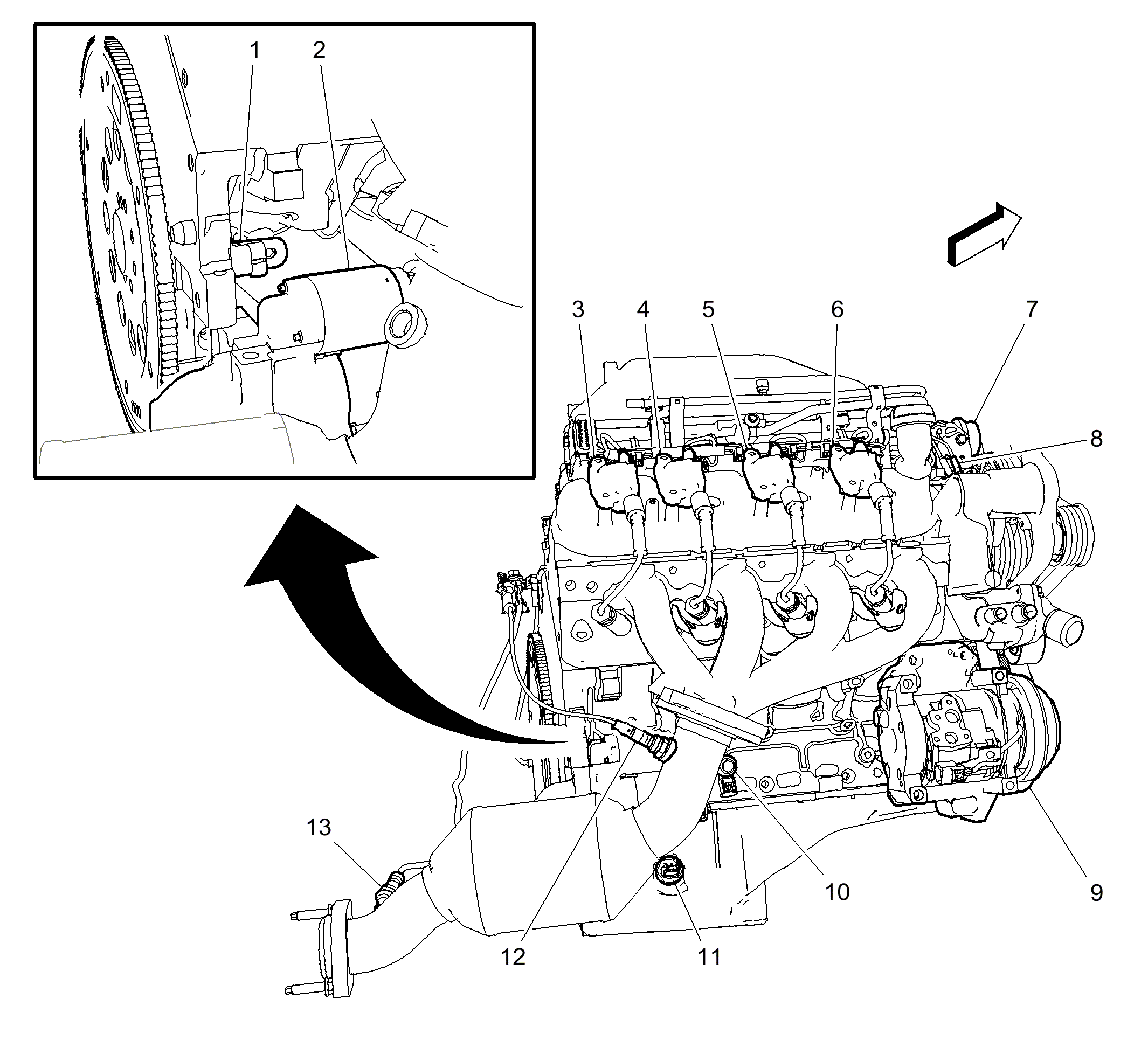

Fig 1: Engine Components - Right Side (LSA)

Courtesy of GENERAL MOTORS COMPANY
