Radio/Navigation System Schematics

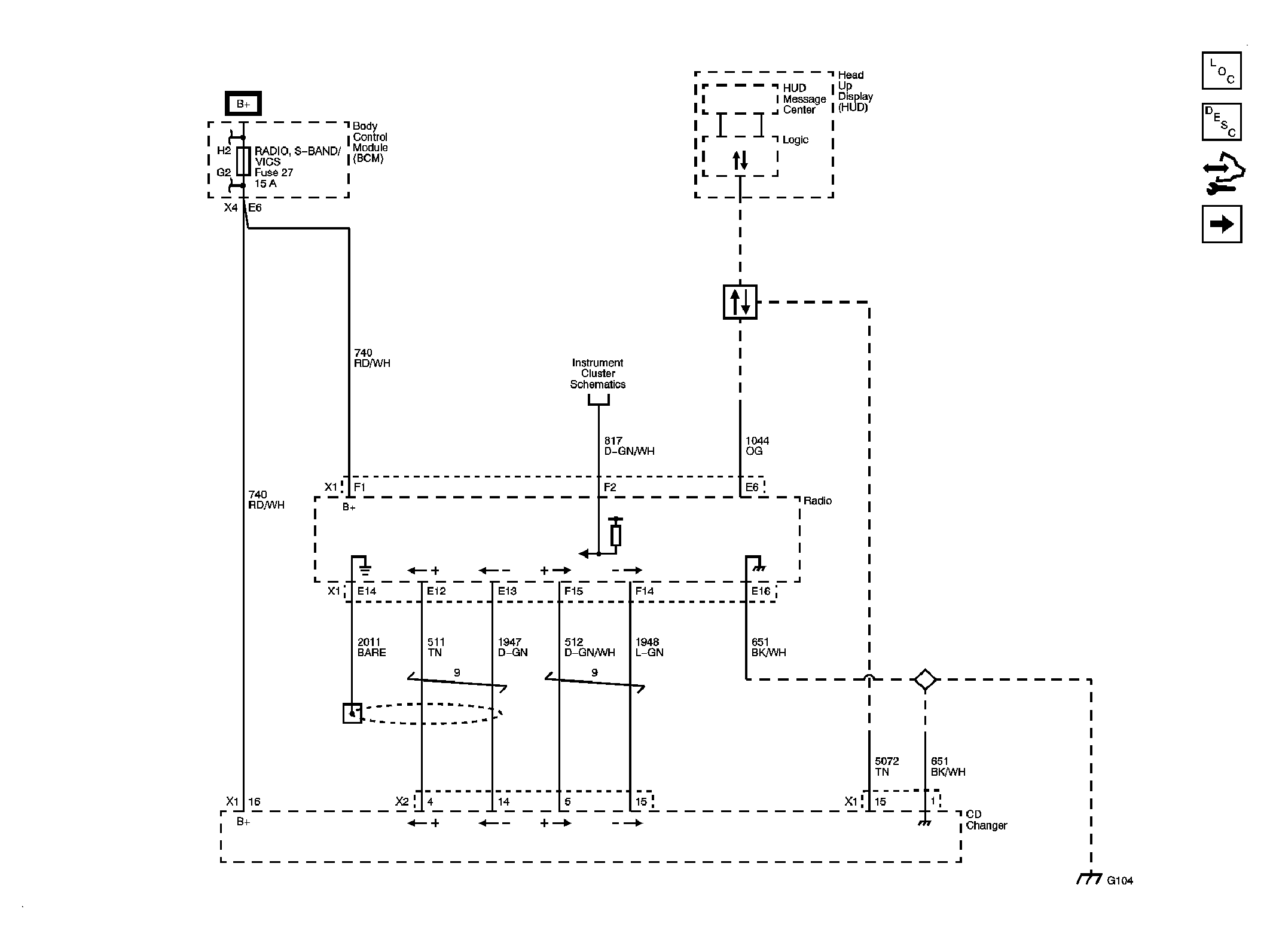

Fig 1: Power, Ground, Messages, and Radio to CD Player Audio Signals

Courtesy of GENERAL MOTORS CORP.

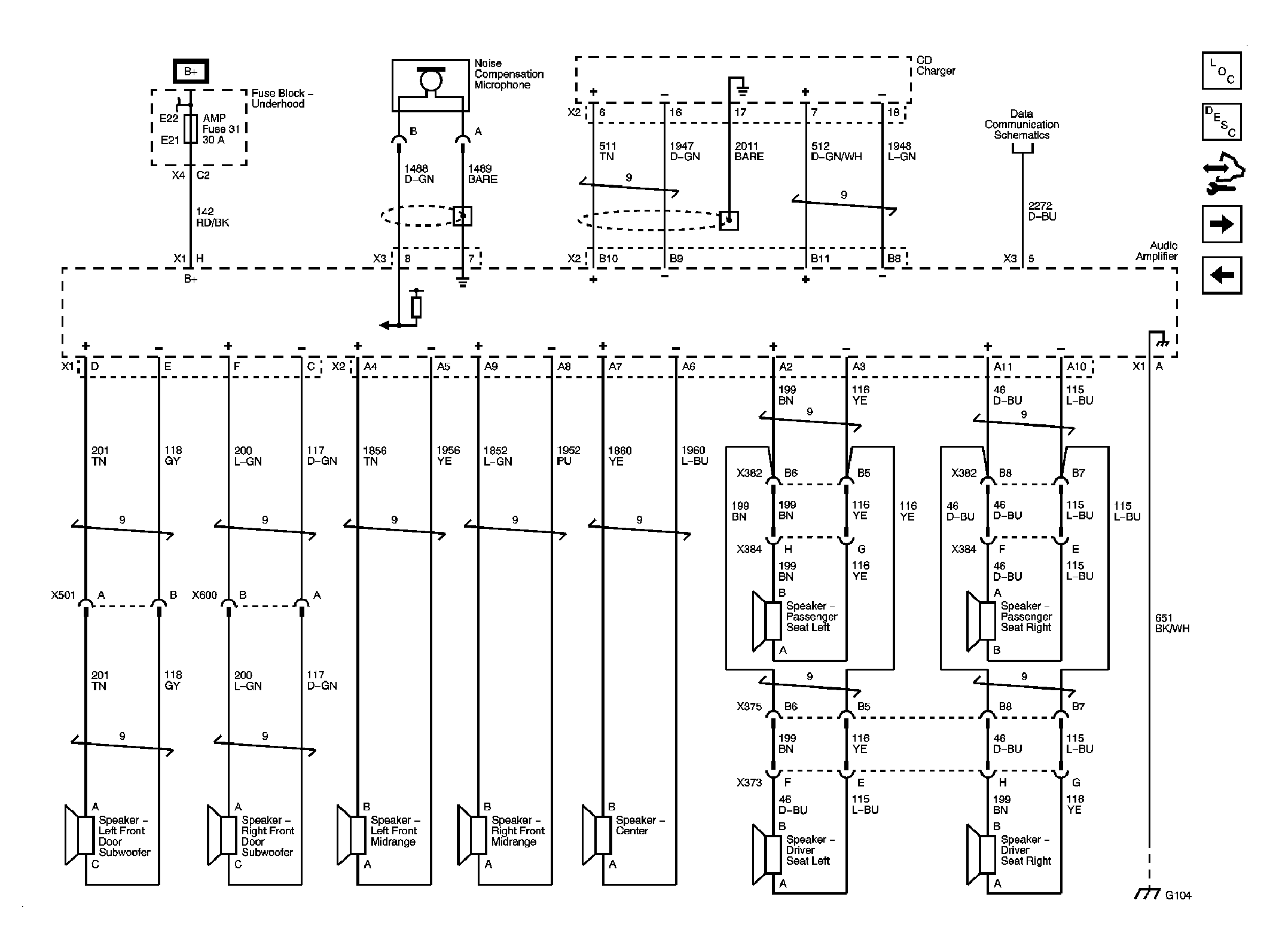

Fig 2: Amplification

Courtesy of GENERAL MOTORS CORP.

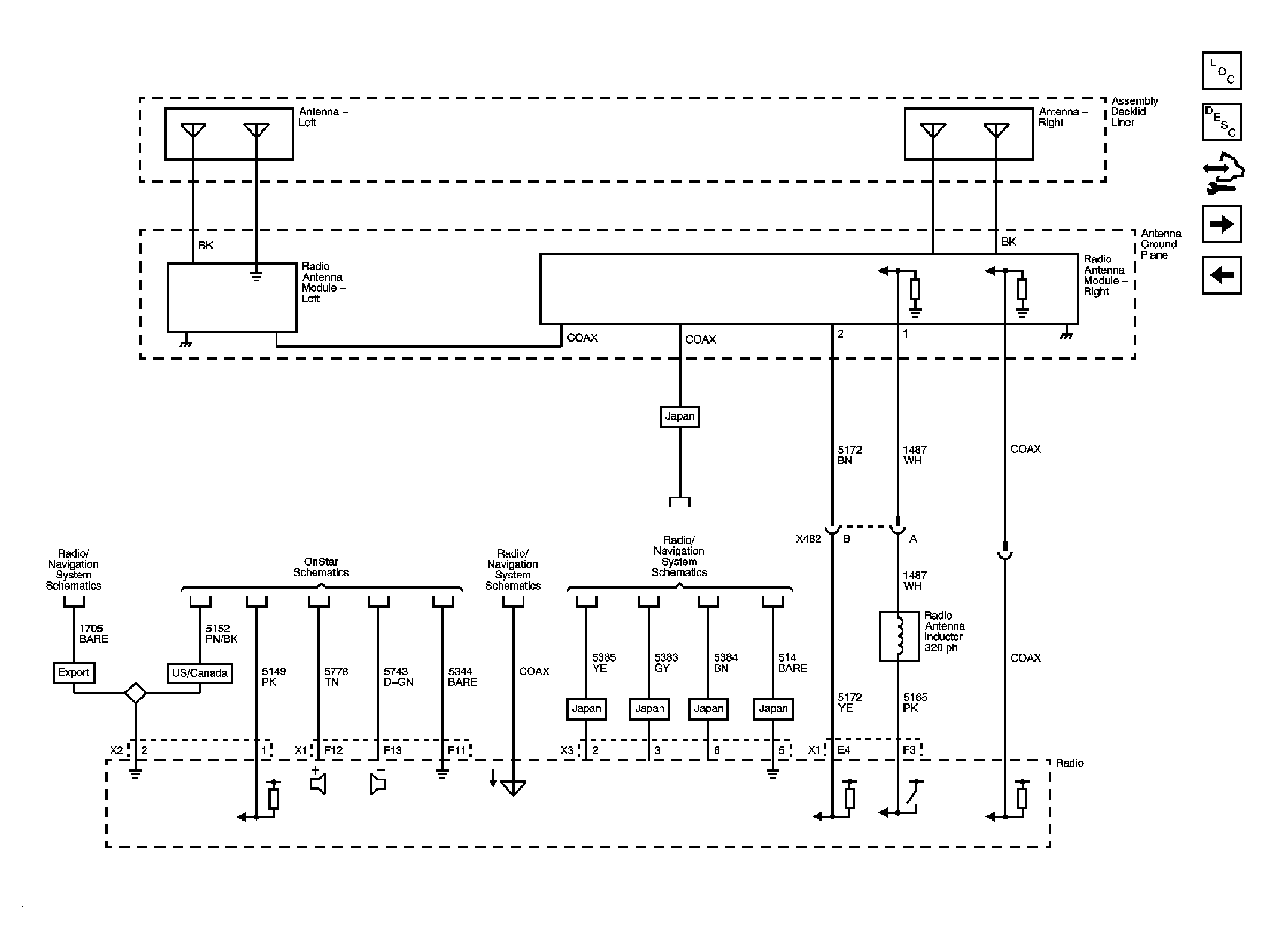

Fig 3: AM and FM Antennas and OnStar References

Courtesy of GENERAL MOTORS CORP.

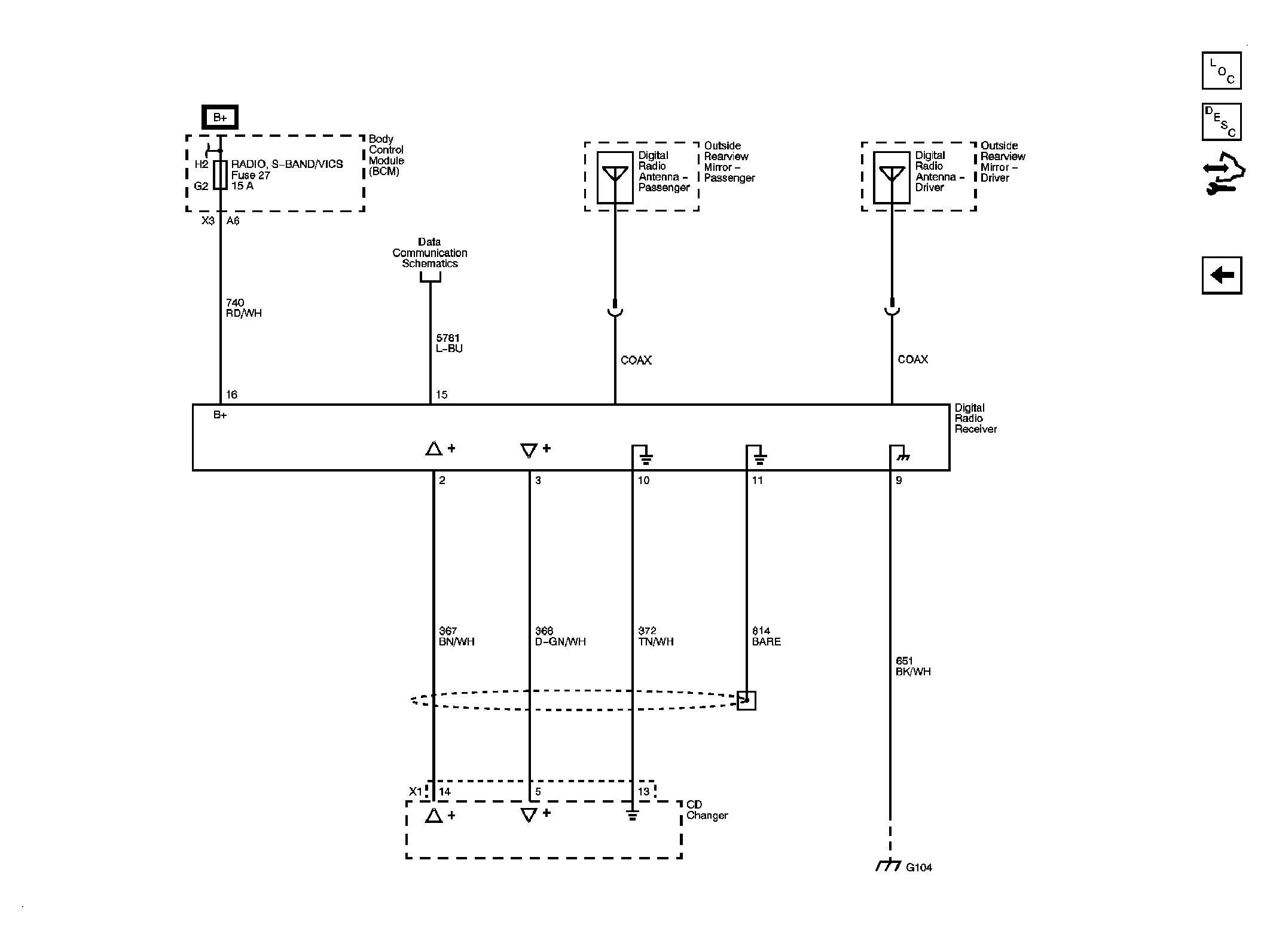

Fig 4: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

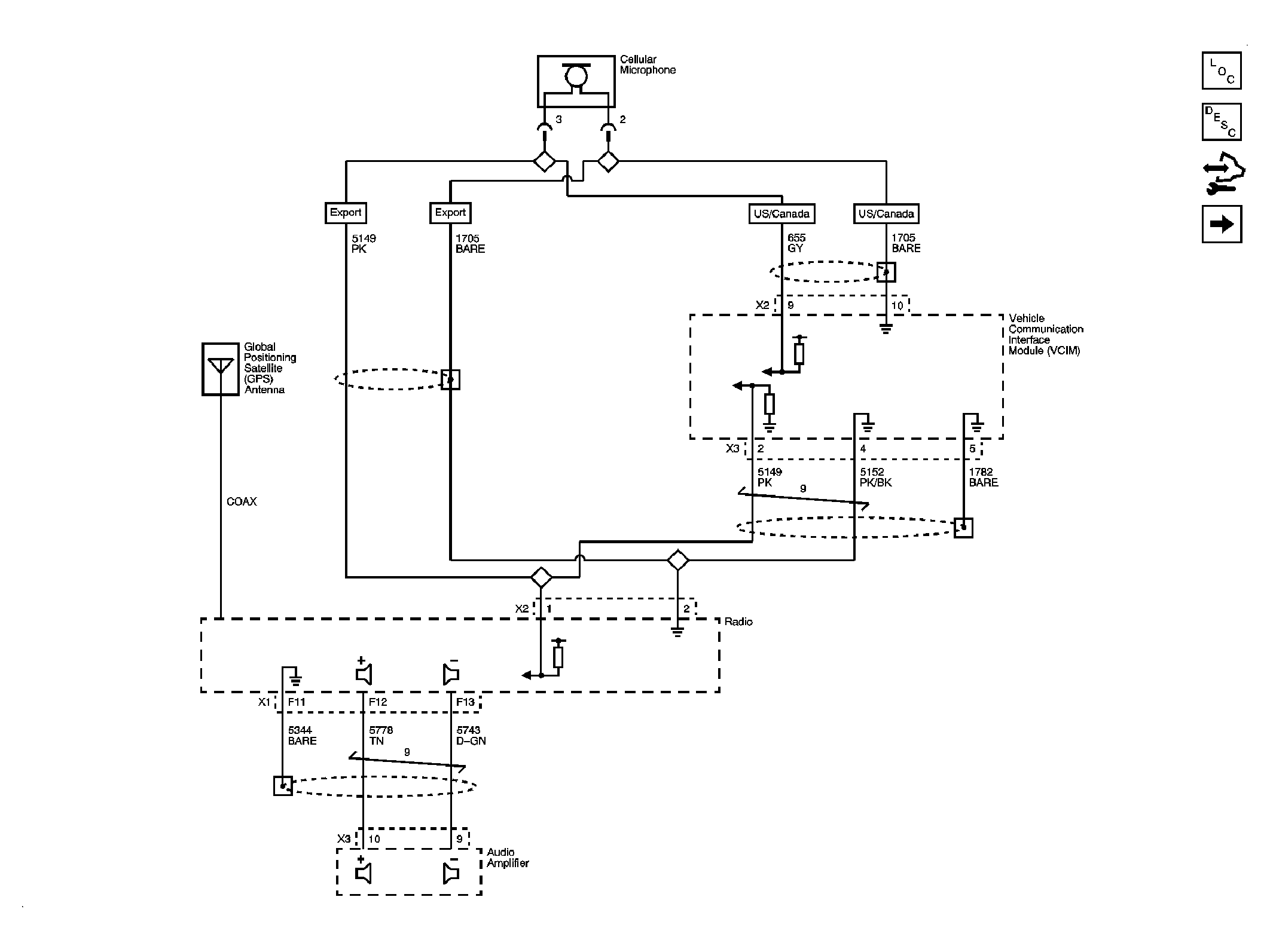

Fig 5: Navigation - Except Japan

Courtesy of GENERAL MOTORS CORP.

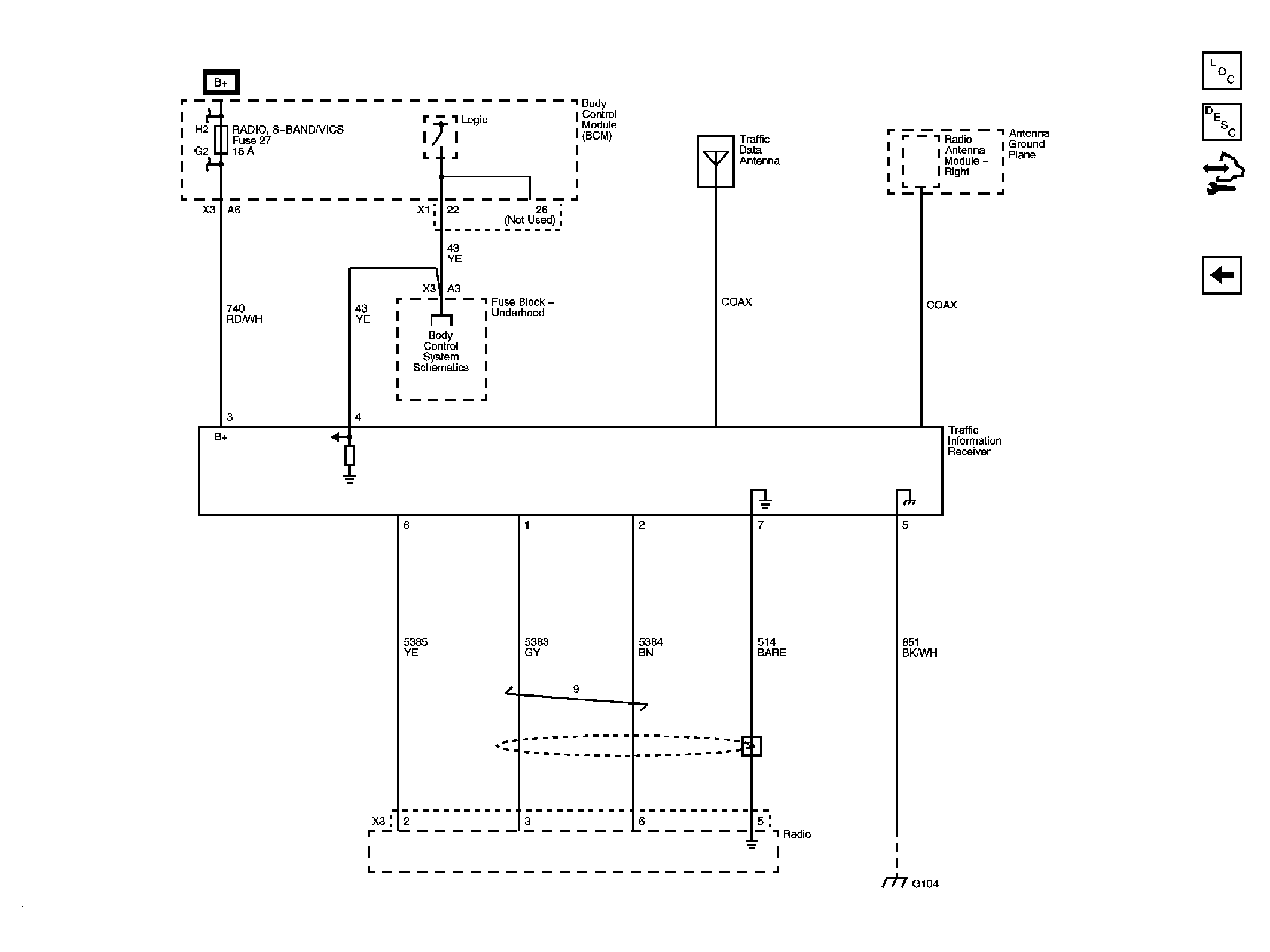

Fig 6: Navigation - Japan

Courtesy of GENERAL MOTORS CORP.
