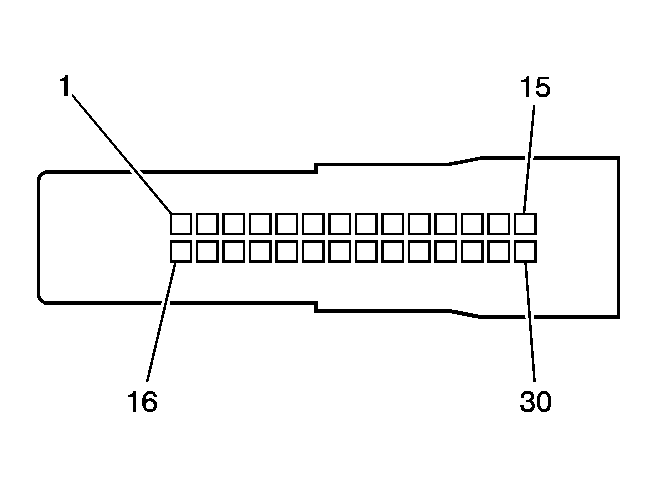

Adaptive Cruise Module (ACM)
Courtesy of GENERAL MOTORS CORP. Adaptive Cruise Module (ACM)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.35 L-GN/BK |
6432 |
CAN Bus (-) |
| 3 |
0.35 TN/WH |
6433 |
CAN Bus (+) |
| 4-7 |
- |
- |
Not Used |
| 8 |
0.35 TN |
2501 |
High Speed GMLAN Serial Data Bus (-) |
| 9 |
0.35 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus (+) |
| 10-11 |
- |
- |
Not Used |
| 12 |
0.35 BK |
750 |
Ground |
| 13 |
- |
- |
Not Used |
| 14 |
0.35 PK |
1039 |
Ignition 1 Voltage |
| 15 |
0.35 RD/WH |
340 |
Battery Positive Voltage |
| 16-22 |
- |
- |
Not Used |
| 23 |
0.35 TN |
2501 |
High Speed GMLAN Serial Data Bus (-) |
| 24 |
0.35 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus (+) |
| 25-30 |
- |
- |
Not Used |
Connector Part Information
- OEM: 12185289
- Service: 88988932
- Description: 30-Way F (BG)
|
Terminal Part Information
- Terminal/Tray: 1411560-2/25
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
