Cellular Microphone

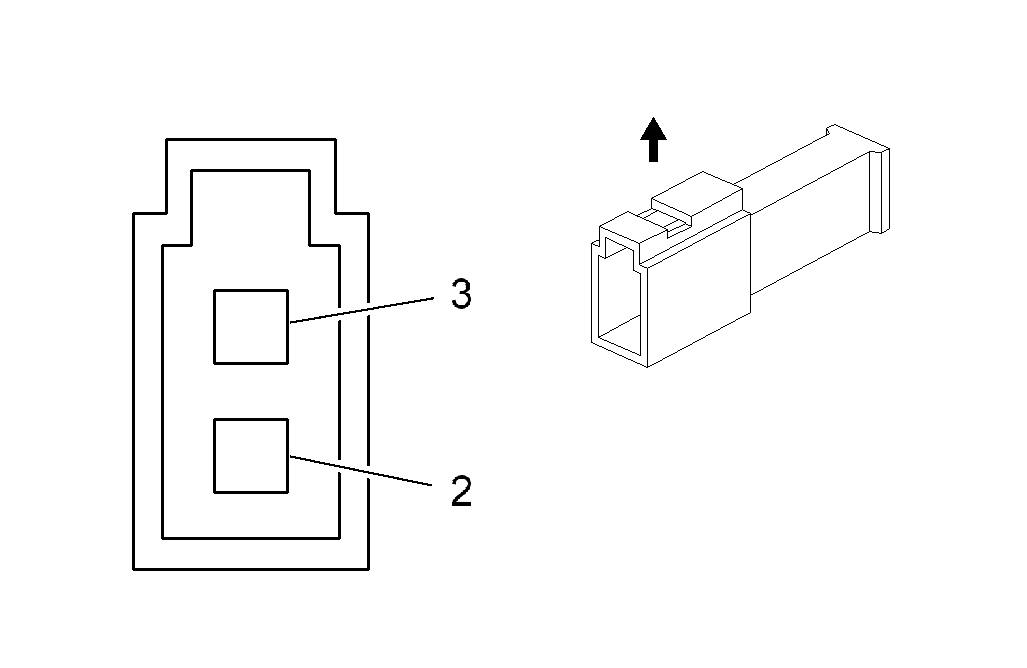

Fig 1: Cellular Microphone Connector End View
GM1868782Courtesy of GENERAL MOTORS CORP.
Cellular Microphone

Pin Wire Circuit Function
2 0.35 BARE 1705 Drain
3 0.35 GY 655 Cellular Microphone Signal (UE1)
0.35 PK 5149 Voice Recognition Audio Signal (w/o UE1)
Connector Part Information
  • OEM: 10780414
  • Service: 88988371
  • Description: 2-Way M 1.6 Series, Unsealed (BK)
Terminal Part Information
  • Terminal/Tray: 963898-3/24
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: J-38125-560/J-35616-3 (GY)
