Courtesy Lamp Switch - Console

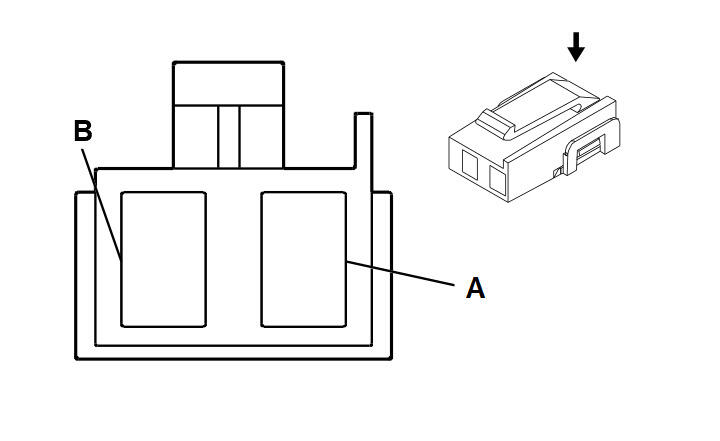

Fig 1: Courtesy Lamp Switch - Console Connector End View
GM258297Courtesy of GENERAL MOTORS CORP.
Courtesy Lamp Switch - Console

Pin Wire Circuit Function
A 0.35 PU 635 Console Lamp Switch Signal
B 0.5 BK 1550 Ground
Connector Part Information
  • OEM: 12015197
  • Service: 12102626
  • Description: 2-Way F Metri-Pack 280 Series (BU)
Terminal Part Information
  • Terminal/Tray: 12034046/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
