Hazard Switch

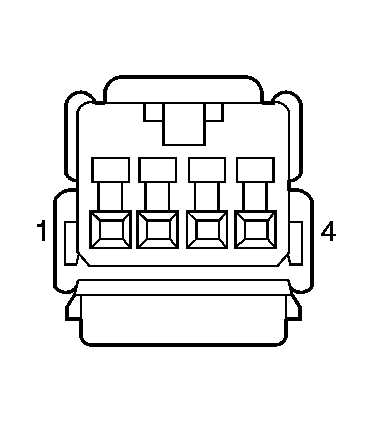

Fig 1: Hazard Switch Connector End View
GM1331436Courtesy of GENERAL MOTORS CORP.
Hazard Switch

Pin Wire Circuit Function
1 0.35 TN 2144 Hazard Switch Signal
2 0.35 BK 1450 Ground
3 0.35 GY/BK 1458 Instrument Panel Lamps Supply Voltage 4
4 0.35 BN 27 Hazard Flasher Signal
Connector Part Information
  • OEM: 15364004
  • Service: 88953314
  • Description: 4-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 173681-2/17
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
