Radio Antenna Module - Right

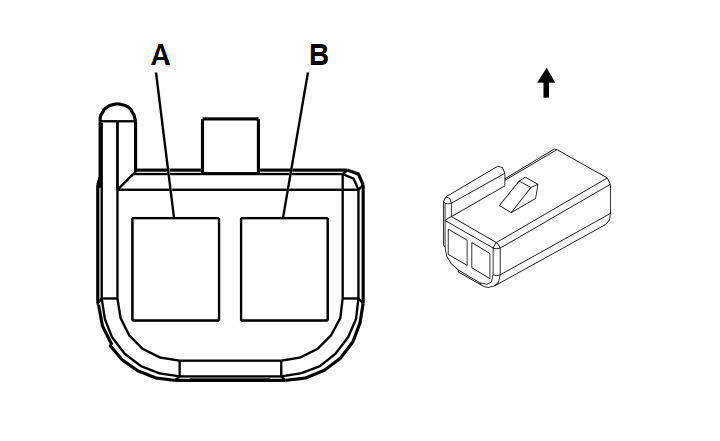

Fig 1: Radio Antenna Module - Right Connector End View
GM35451Courtesy of GENERAL MOTORS CORP.
Radio Antenna Module - Right

Pin Wire Circuit Function
A 0.35 WH 1487 Antenna Enable Signal
B 0.35 BN 5172 FM Composite Signal
Connector Part Information
  • OEM: 12059251
  • Service: 12101848
  • Description: 2-Way F Metri-Pack 150 Series (RD)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
