Seat Adjuster Motor Assembly - Front Passenger

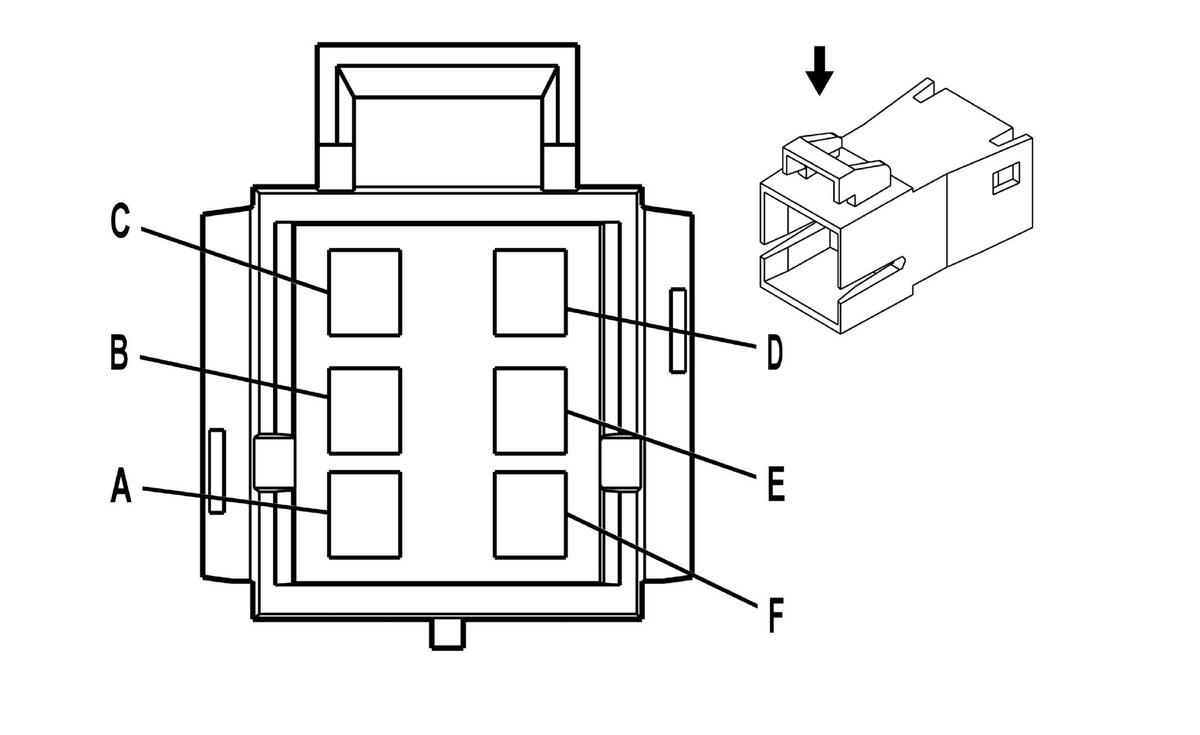

Fig 1: Seat Adjuster Motor Assembly - Front Passenger Connector End View
GM39689Courtesy of GENERAL MOTORS CORP.
Seat Adjuster Motor Assembly - Front Passenger

Pin Wire Circuit Function
A 3 TN 296 Passenger Seat Horizontal Motor Forward Control
B 3 L-GN 290 Passenger Seat Horizontal Motor Rearward Control
C 3 D-GN 297 Passenger Seat Front Vertical Motor Up Control
D 3 D-BU 298 Passenger Seat Front Vertical Motor Down Control
E 3 YE 288 Passenger Seat Rear Vertical Motor Up Control
F 3 L-BU 289 Passenger Seat Rear Vertical Motor Down Control
Connector Part Information
  • OEM: 12064754
  • Service: 15305872
  • Description: 6-Way M Metri-Pack 280 Series, Self Lock (BK)
Terminal Part Information
  • Terminal/Tray: 12084856/4
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
