TU/TD Assembly Harness X1

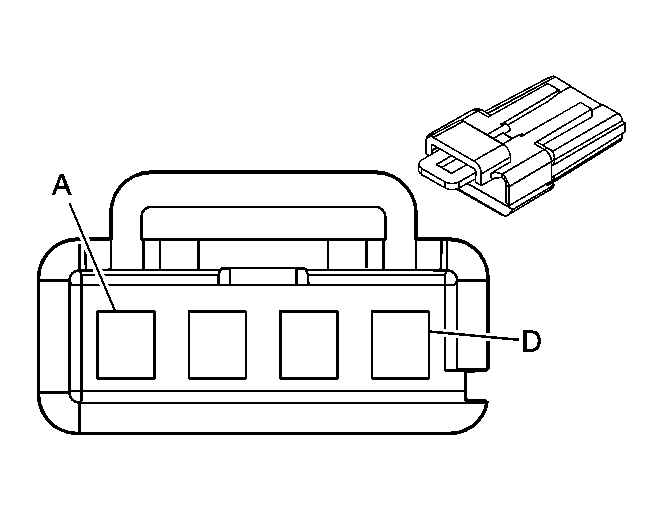

Fig 1: TU/TD Assembly Harness X1 Connector End View
GM1682170Courtesy of GENERAL MOTORS CORP.
TU/TD Assembly Harness X1

Pin Wire Circuit Function
A 0.35 TN 28 Horn Trace (B+)
B 0.35 BK 1450 Horn Plate (Ground)
C 0.35 PK 1039 TU/TD Power
D 0.35 PU 5526 TU/TD Feedback
Connector Part Information
  • OEM: 12092163
  • Service: 12092163
  • Description: 4-Way F W/S" Clip 2973342 Type 105
Terminal Part Information
  • Terminal/Tray: Packard 12059894
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
