TU/TD Assembly Harness X4

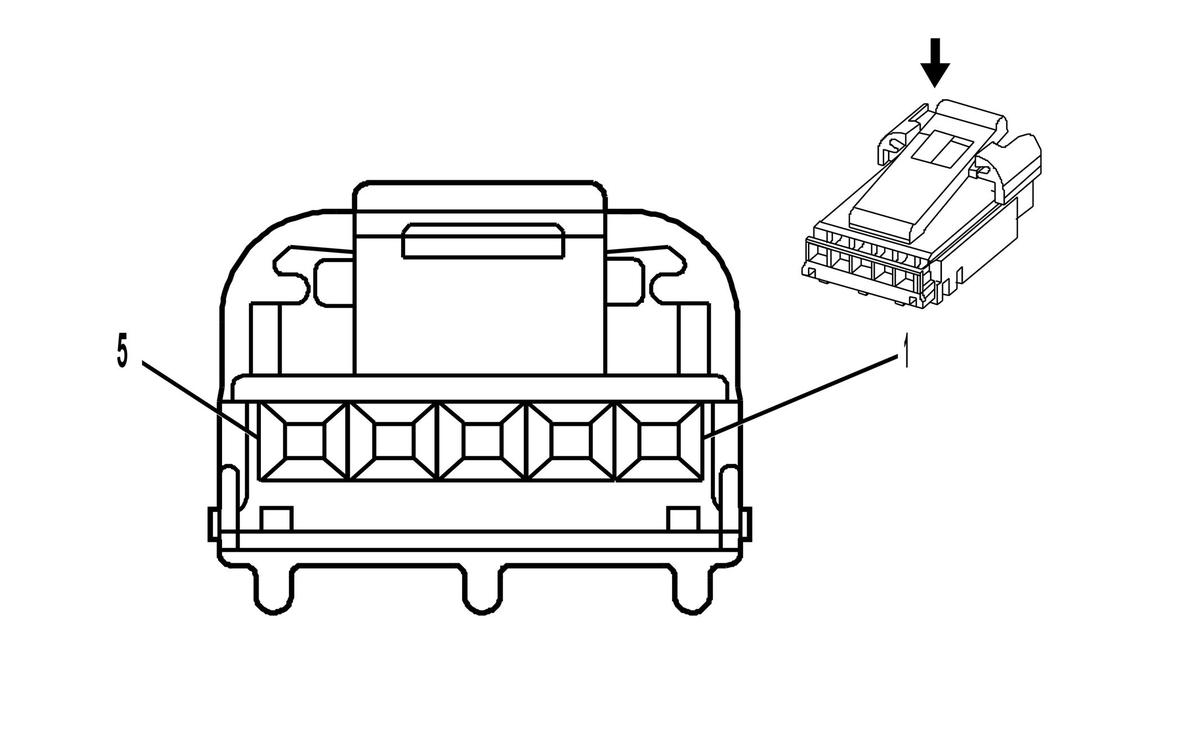

Courtesy of GENERAL MOTORS CORP. TU/TD Assembly Harness X4
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PU |
2663 |
TU Feedback |
| 2 |
0.35 PK |
1039 |
TU/TD Feedback |
| 3 |
0.35 PK |
1039 |
TU/TD Power |
| 4 |
0.35 TN |
2664 |
TD Feedback |
| 5 |
0.35 PU |
5526 |
TU/TD Feedback |
Connector Part Information
- OEM: 31072-1010 / Delphi 15422578
- Service: Non-Serviceable
- Description: 5-Way F Molex (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
