TU/TD Assembly Harness X5

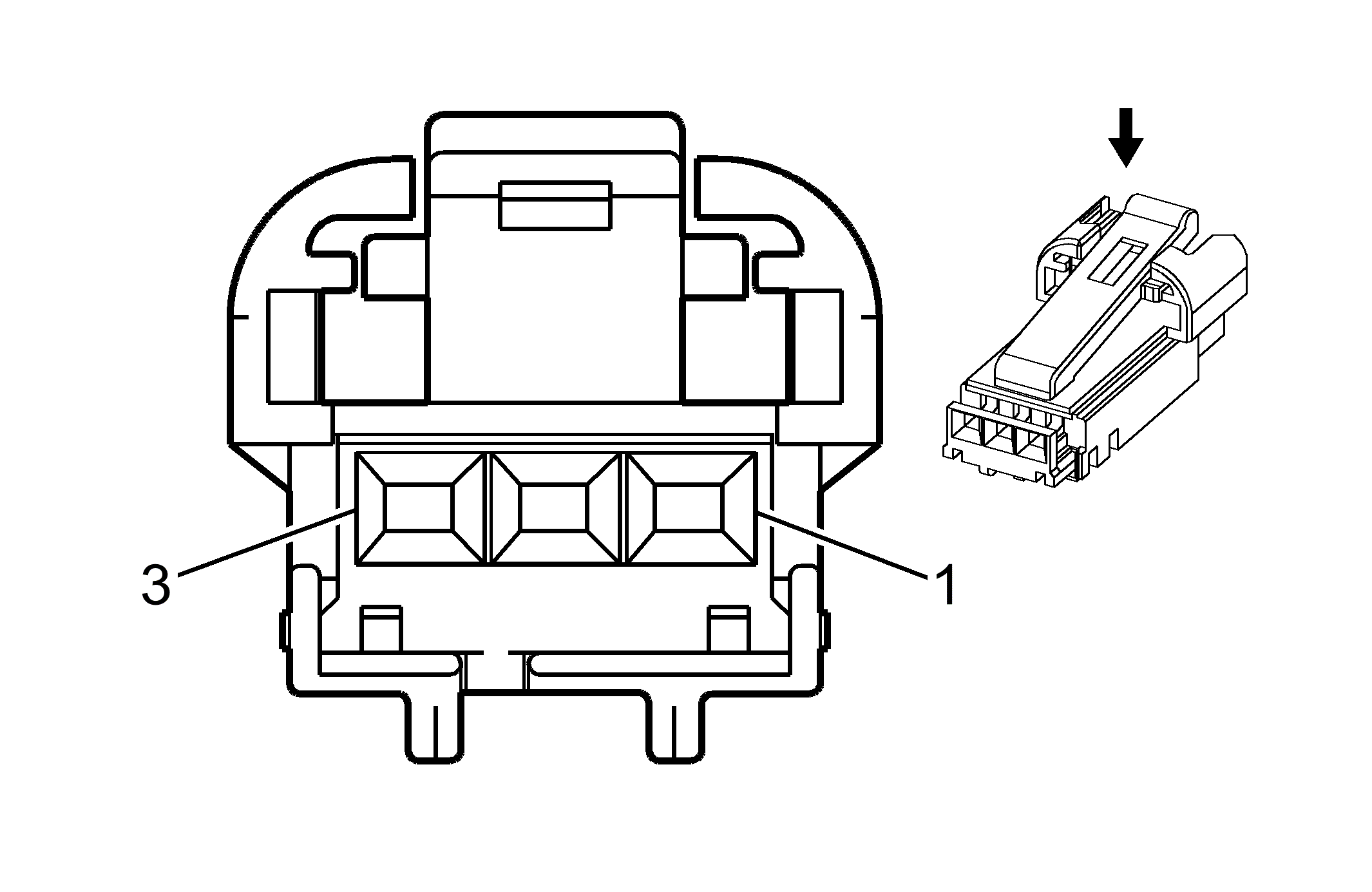

Fig 1: TU/TD Assembly Harness X5 Connector End View
GM1682181Courtesy of GENERAL MOTORS CORP.
TU/TD Assembly Harness X5

Pin Wire Circuit Function
1 0.35 TN 2664 TD Feedback
2 0.35 PK 1039 TU/TD Power
3 0.35 PU 2663 TU/TD Feedback
Connector Part Information
  • OEM: 31067-1012
  • Service: Non-Serviceable
  • Description: 3-Way F Molex (BN)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
