Video Display Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

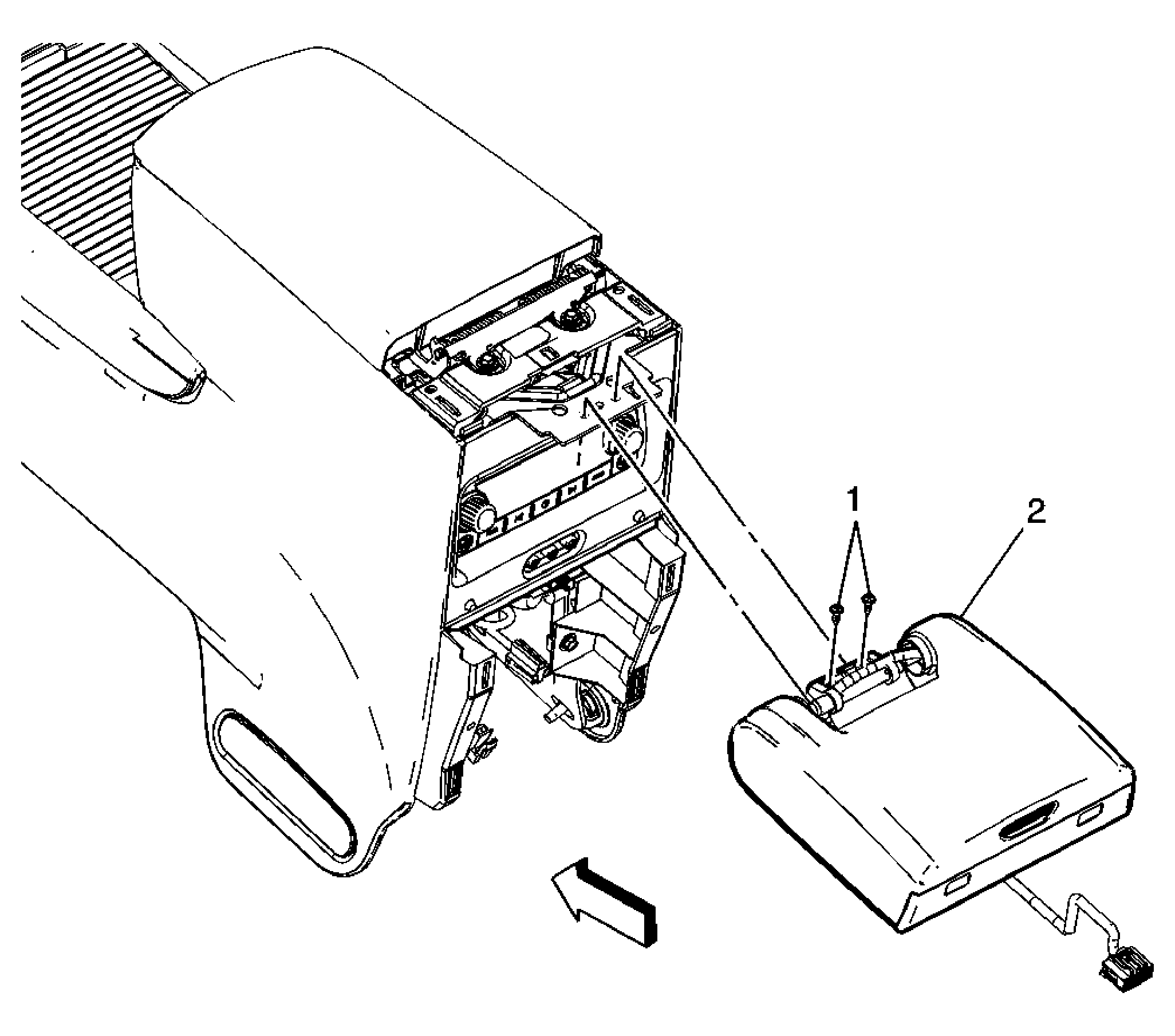

Fig 1: Identifying Video Display

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement (Right Hand Drive) or Front Floor Console Rear Cover Replacement (Left Hand Drive) . Remove the console rear trim plate. Refer to Console Rear Trim Plate Replacement (Left Hand Drive) or Console Rear Trim Plate Replacement (Right Hand Drive) .
1	Video Display Screw (Qty 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Video Display Procedure: Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement (Right Hand Drive) or Front Floor Console Rear Cover Replacement (Left Hand Drive) .
Remove the console rear trim plate. Refer to Console Rear Trim Plate Replacement (Left Hand Drive) or Console Rear Trim Plate Replacement (Right Hand Drive) .

Video Display Screw (Qty 2)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Video Display
Procedure:
Disconnect the electrical connectors.
