Alarm Module, (Vehicle Antitheft)



Component Connector End Views

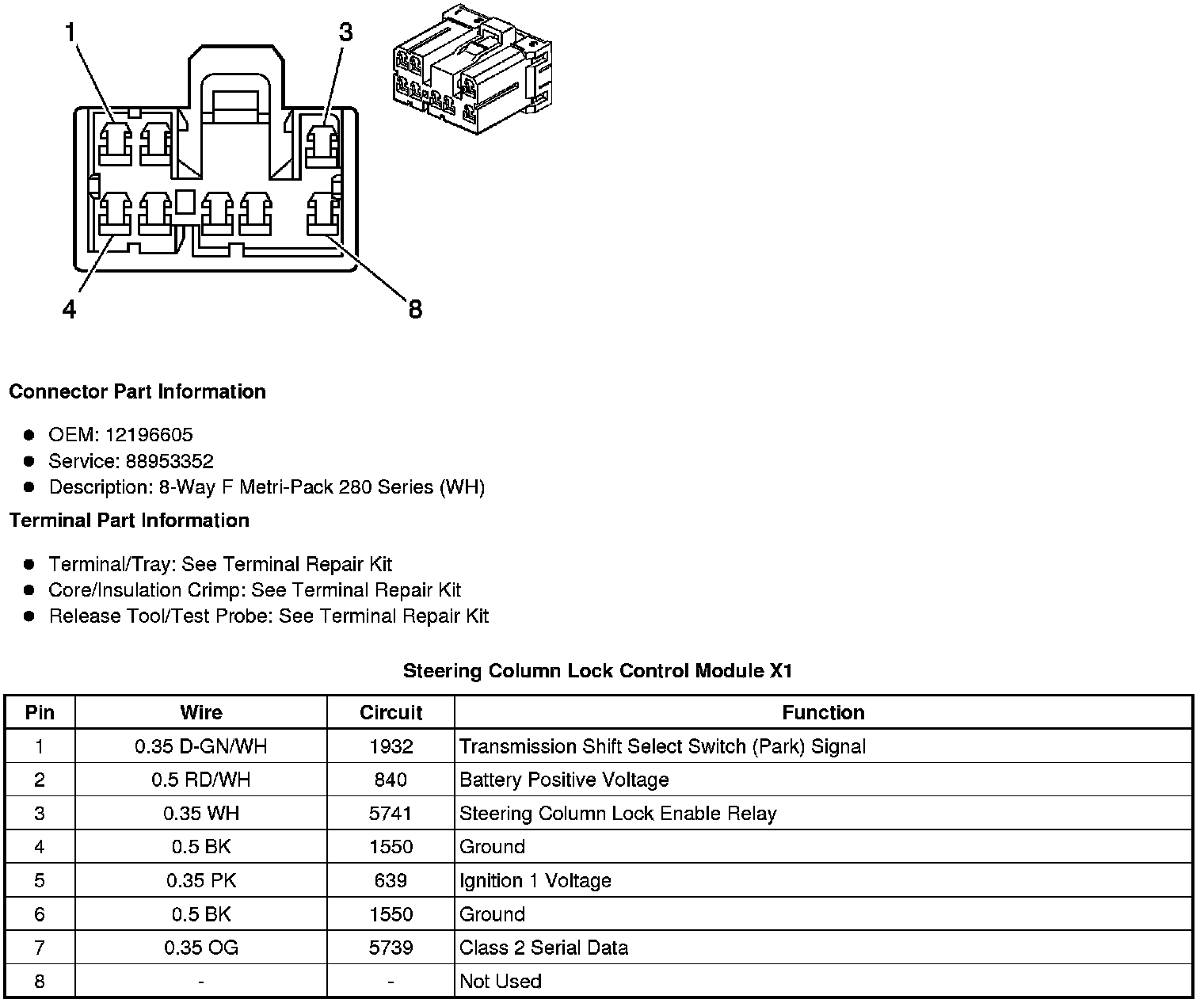

Steering Column Lock Control Module X1

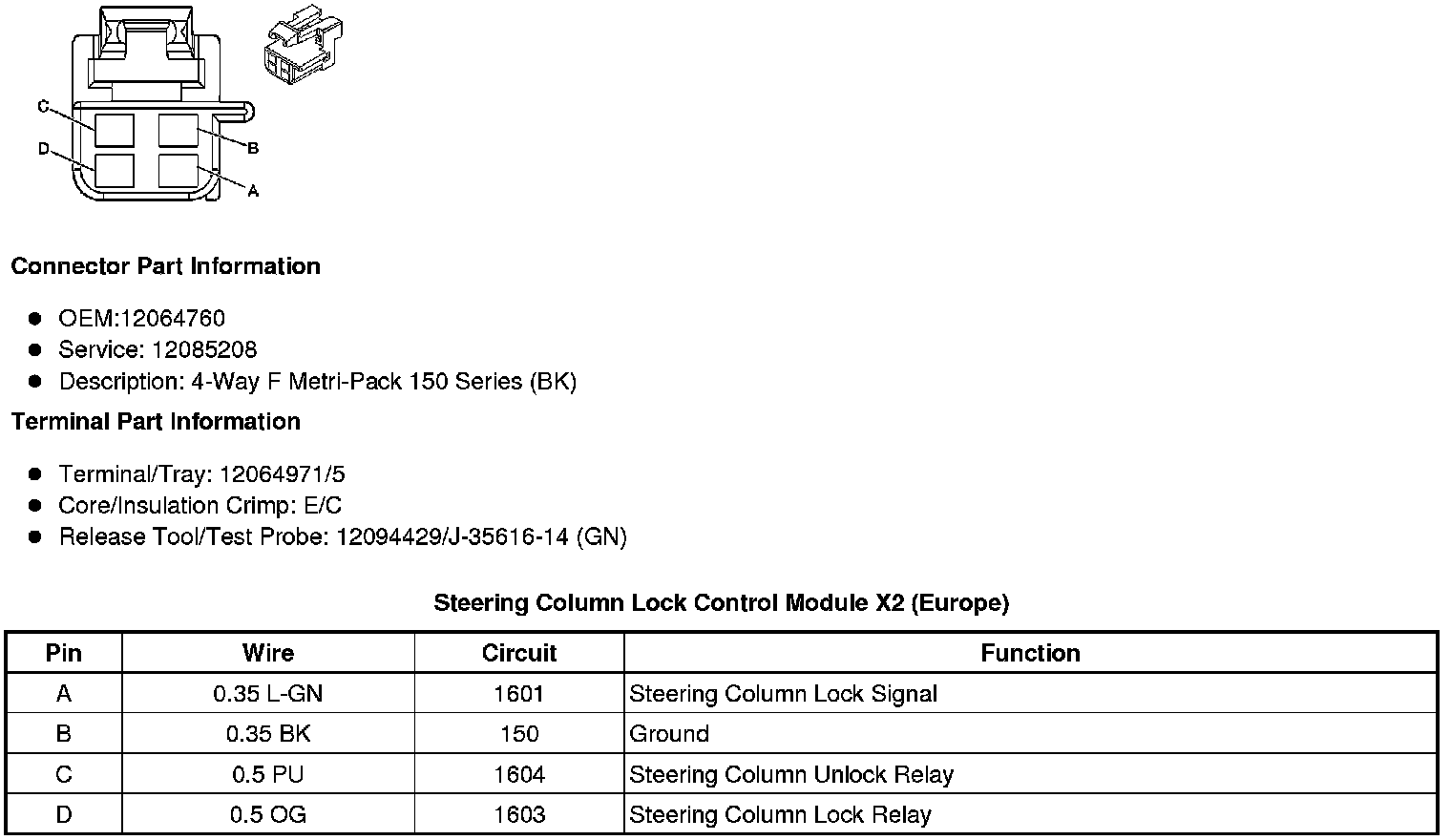

Steering Column Lock Control Module X2 (Europe)
