Oil Temperature Sensor/Switch, Engine



Component Connector End Views

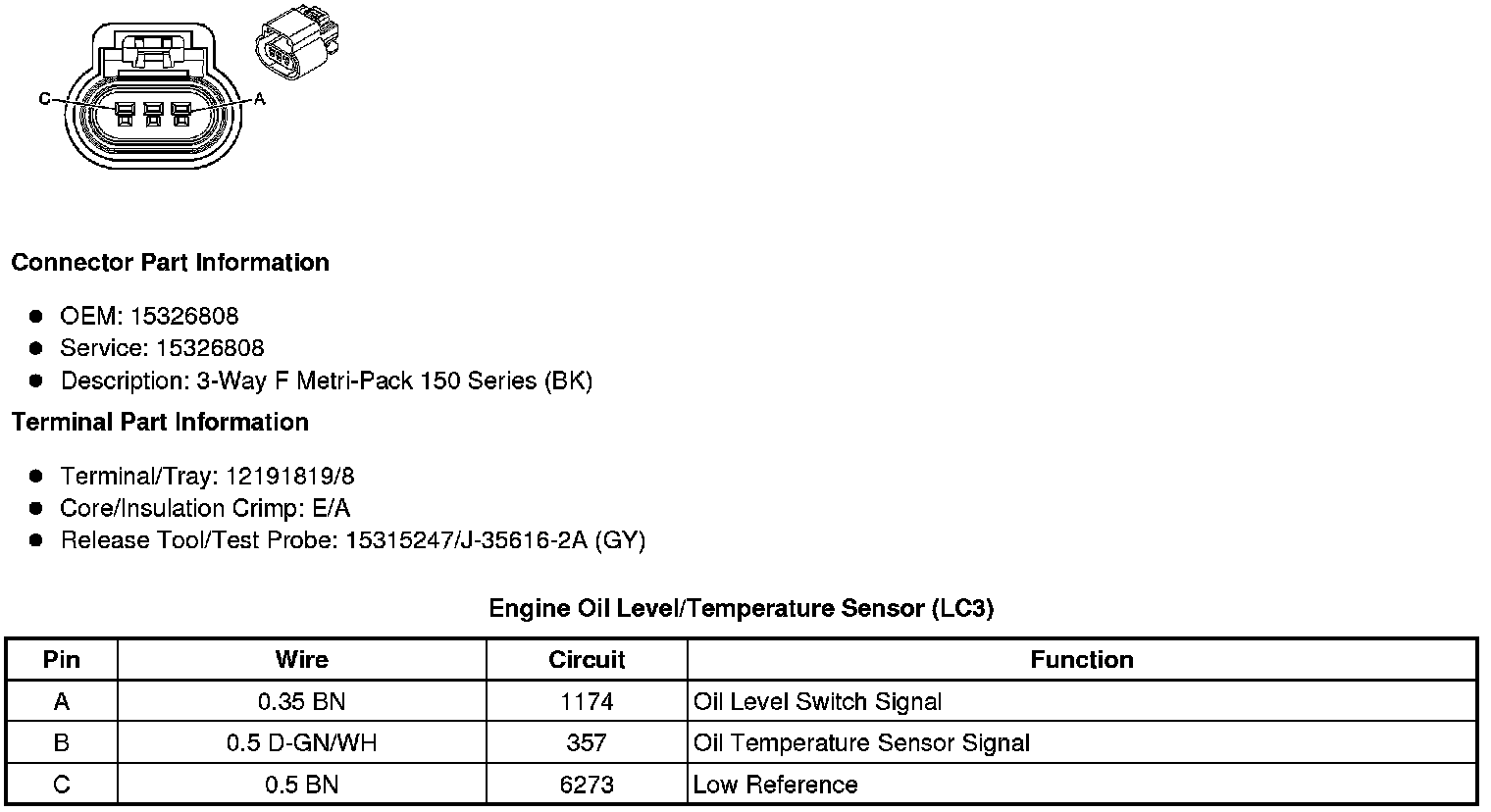

Engine Oil Level/Temperature Sensor (LC3 - 8 Cyl, 4.4L, SC, DOHC)
