Ride Height Sensor, Suspension Control



Component Connector End Views

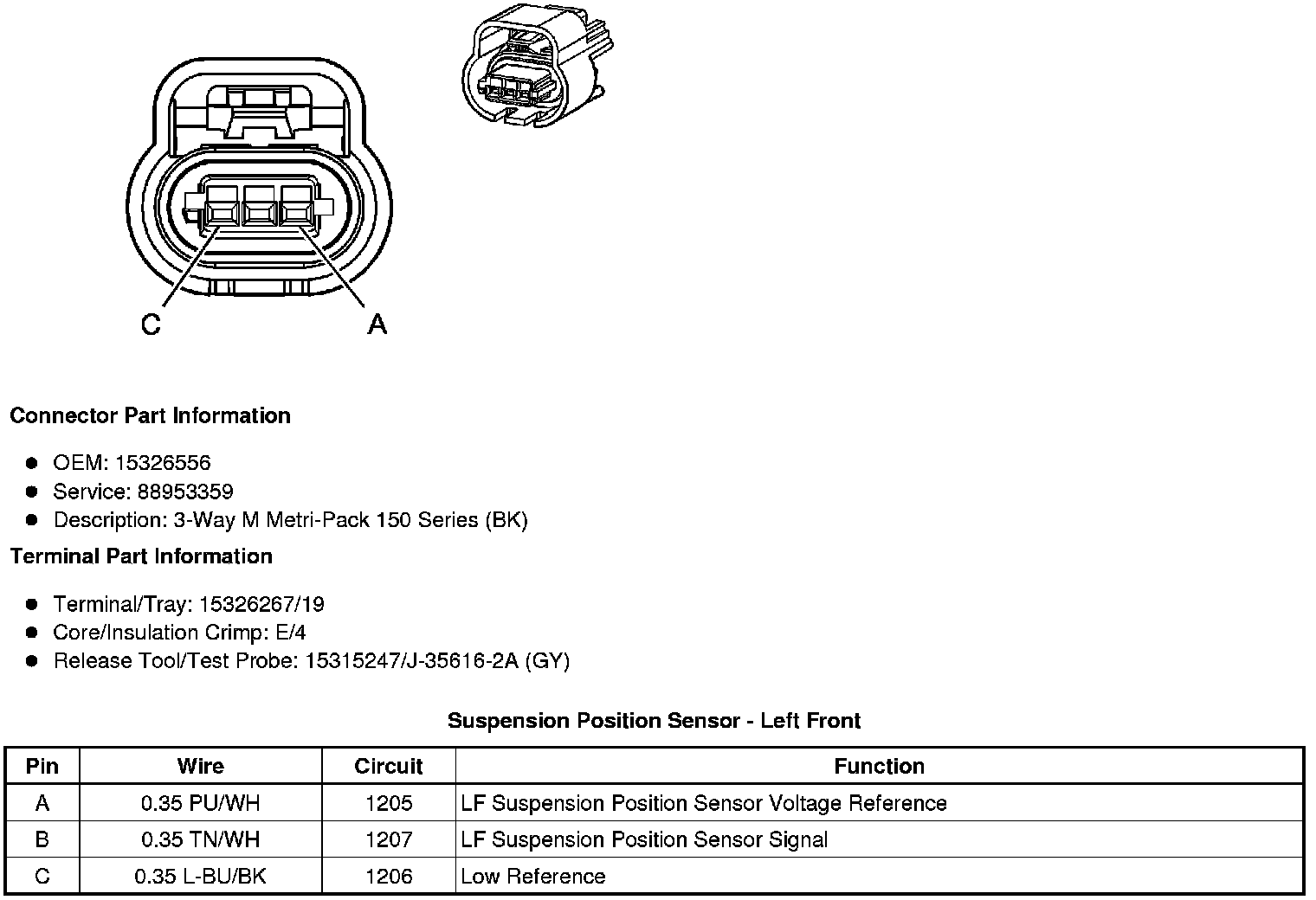

Suspension Position Sensor - Left Front






Suspension Position Sensor - Left Rear






Suspension Position Sensor - Right Front






Suspension Position Sensor - Right Rear
