Seat Temperature Control Module
Component Connector End Views

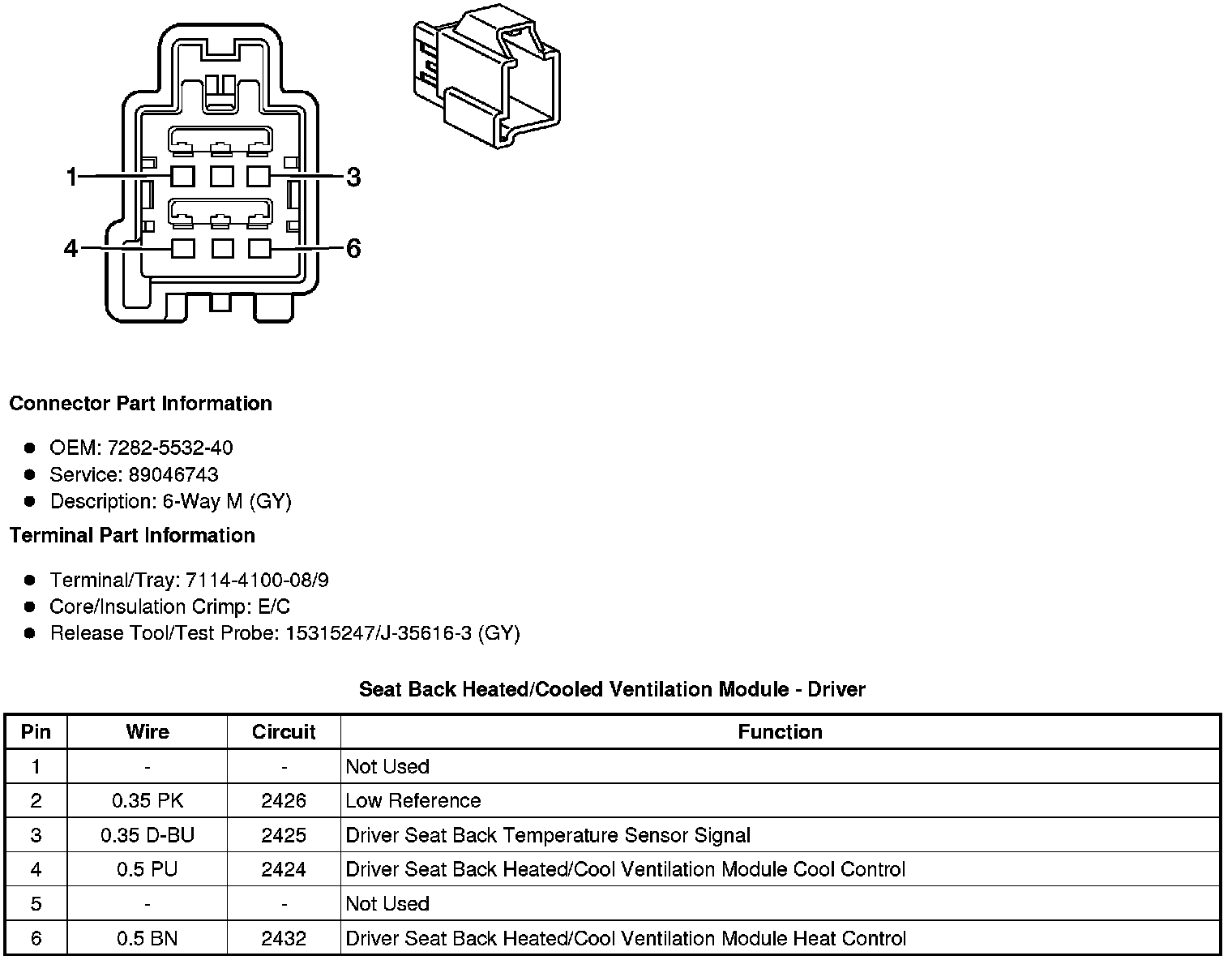

Seat Back Heated/Cooled Ventilation Module - Driver

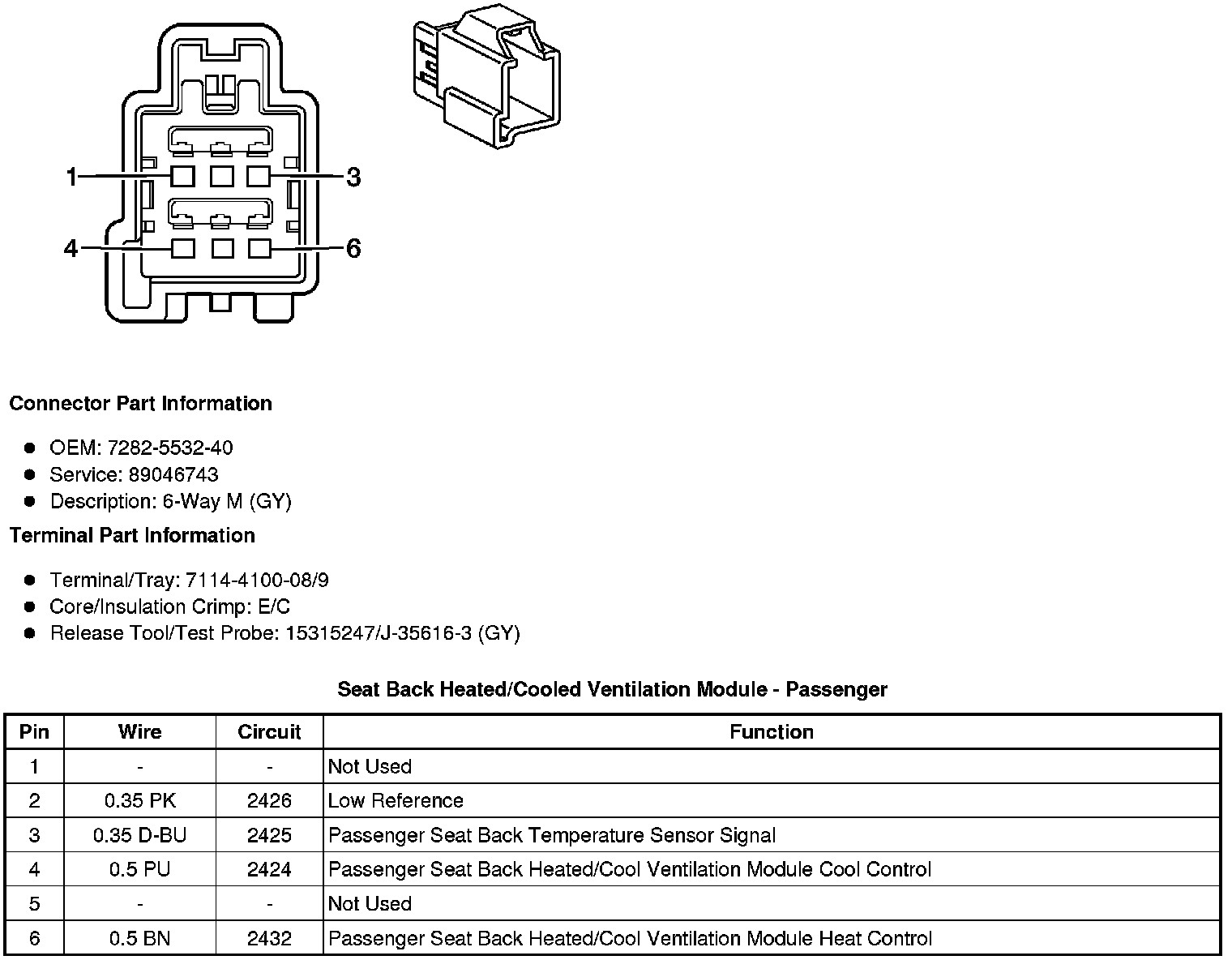

Seat Back Heated/Cooled Ventilation Module - Passenger

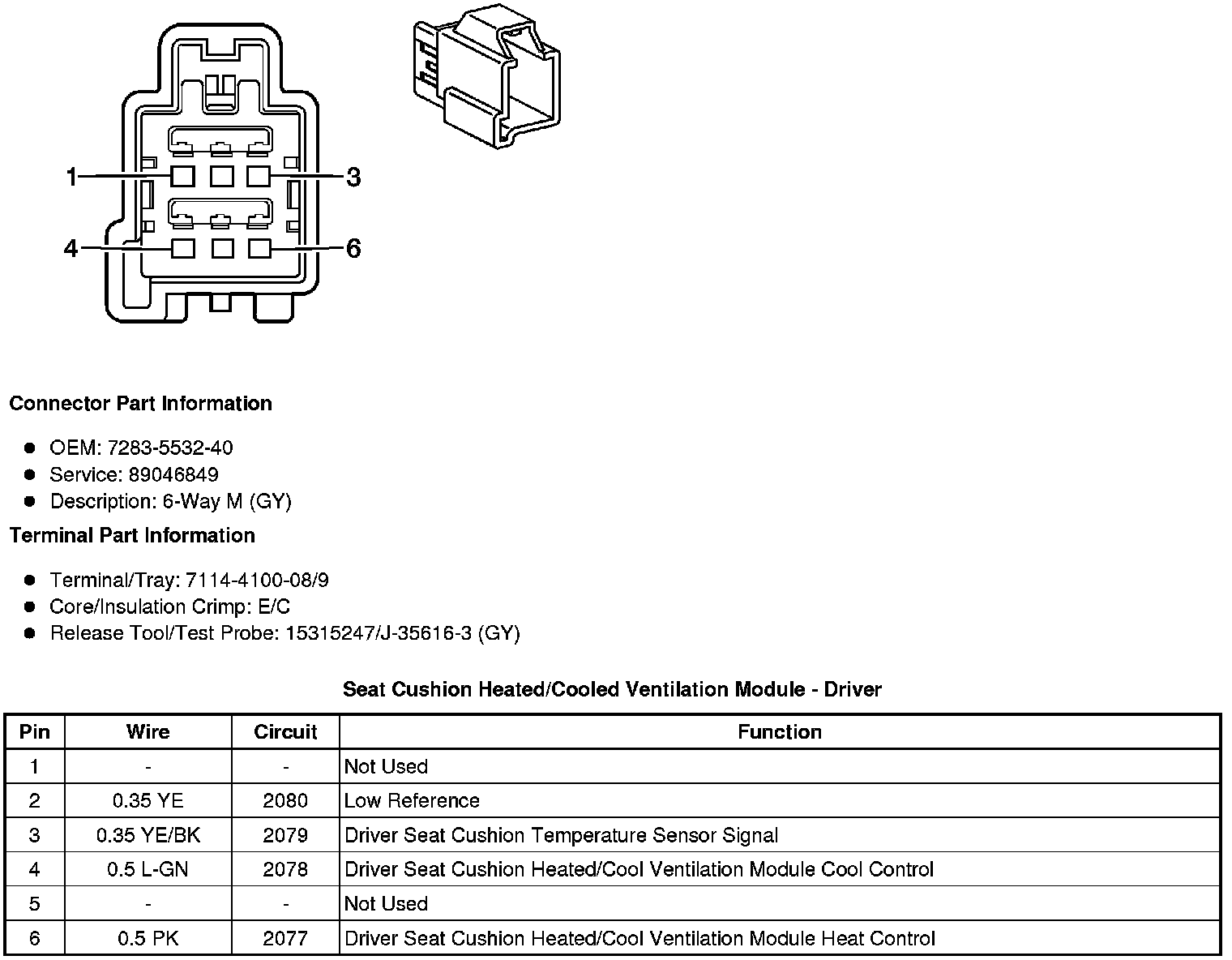

Seat Cushion Heated/Cooled Ventilation Module - Driver
Seat Cushion Heated/Cooled Ventilation Module - Passenger
