Coolant Temperature Sensor/Switch (For Computer): Diagrams



Component Connector End Views

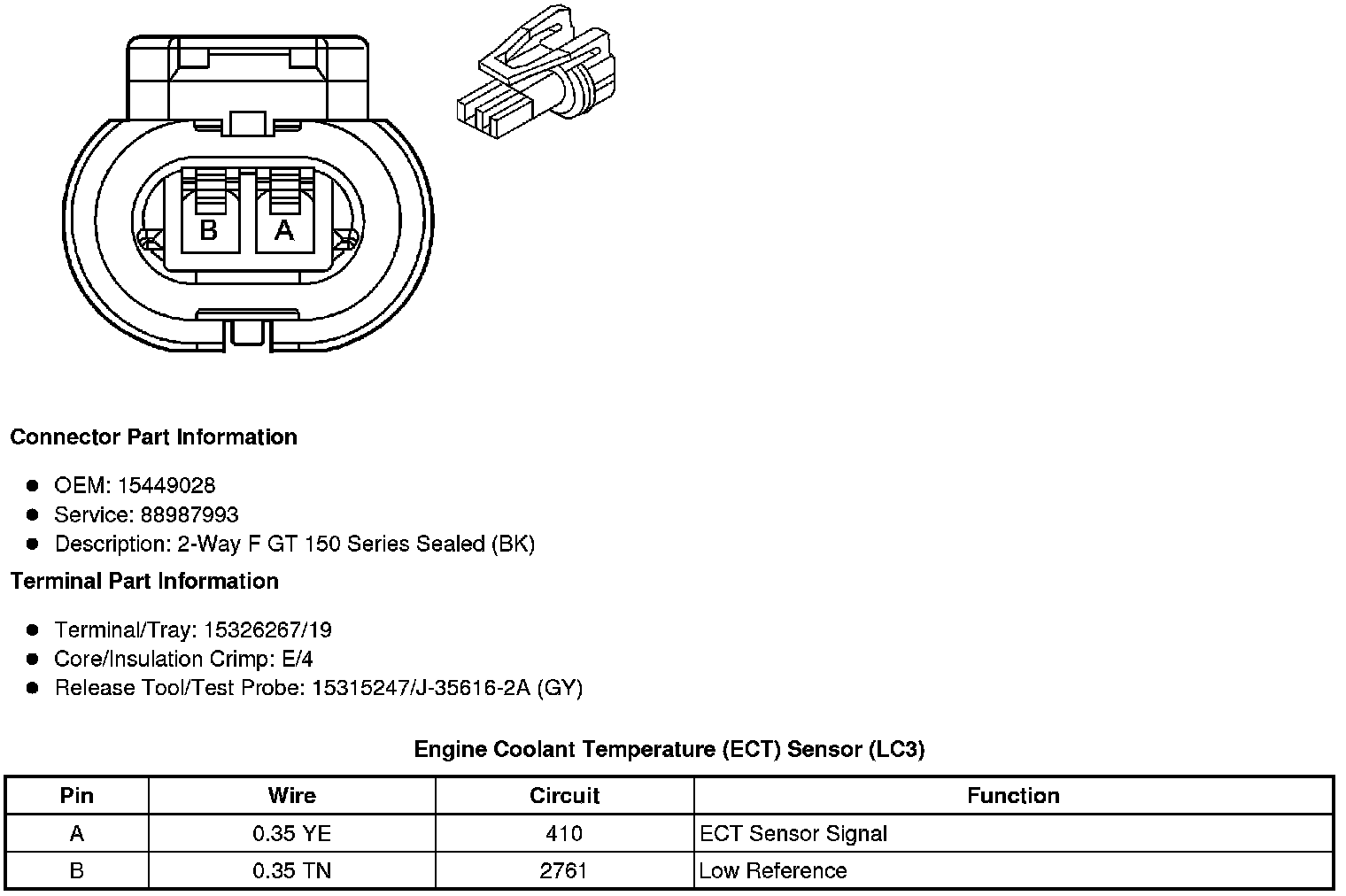

Engine Coolant Temperature (ECT) Sensor (LC3 - 8 Cyl, 4.4L, SC, DOHC)

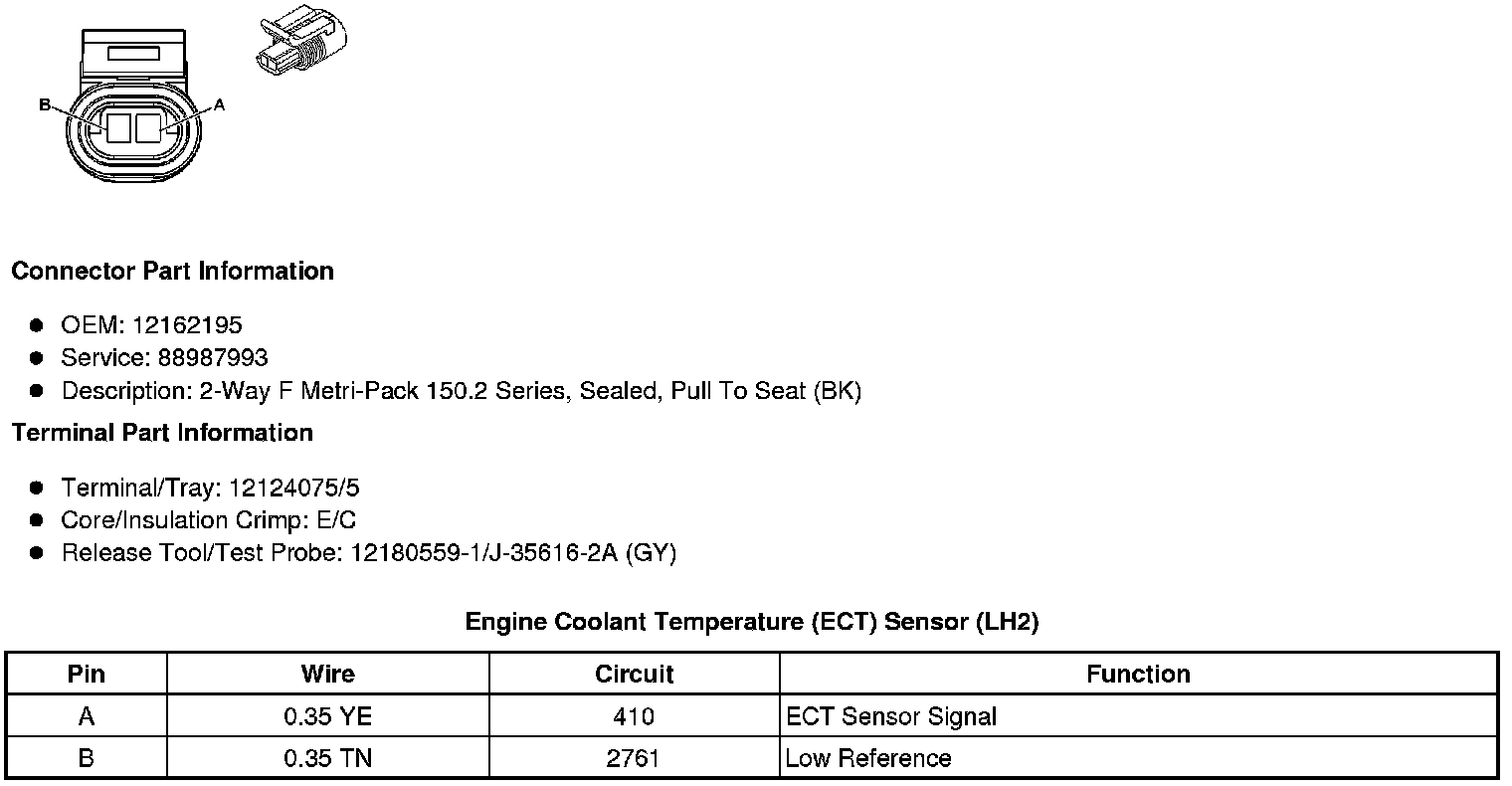

Engine Coolant Temperature (ECT) Sensor (LH2 - 8 CYL, 4.6L, DOHC, HO)
