Fuel Level Sensor: Locations

Harness Routing Views

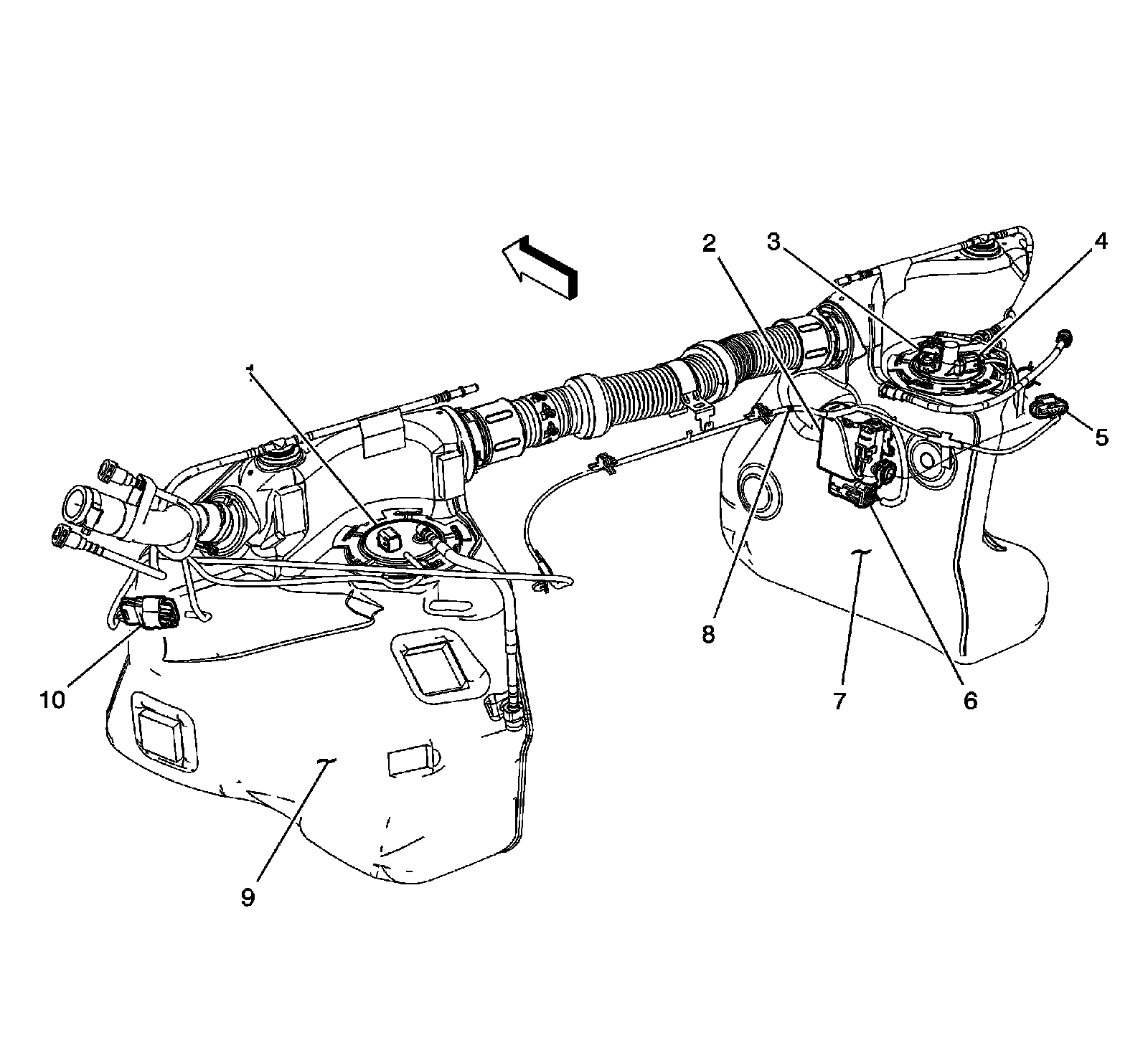

Fuel Tank




1 - Fuel Pump and Sender Assembly
2 - Evaporative Emission (EVAP) Canister Vent Solenoid
3 - Fuel Tank Pressure (FTP) Sensor
4 - Fuel Level Sensor - Right
5 - X460
6 - X420
7 - Fuel Tank-Right
8 - J460
9 - Fuel Tank-Left
10 - X459

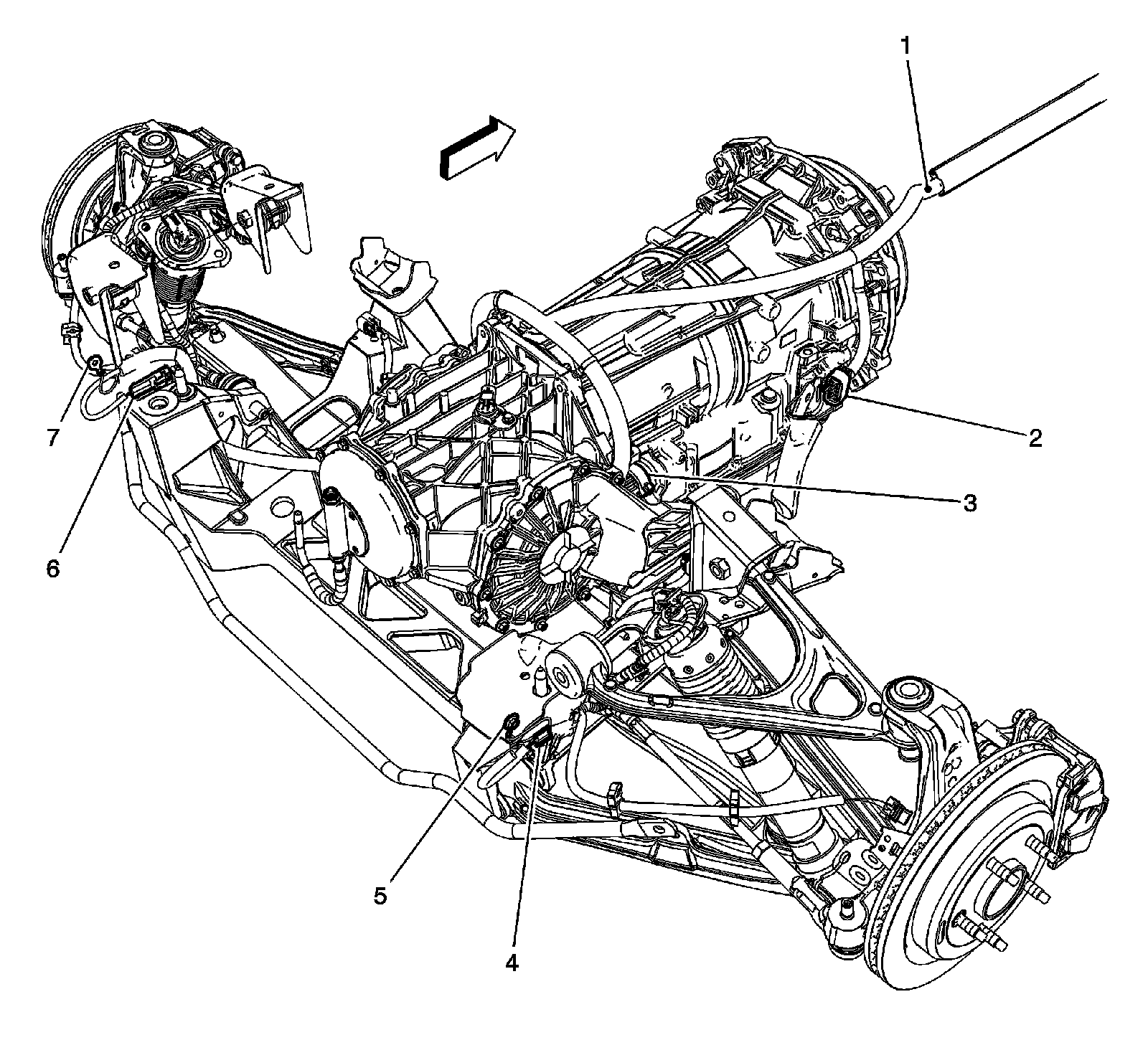

Transmission Harness




1 - J420
2 - X420
3 - X400
4 - X440
5 - G402
6 - X439
7 - G401
