Oil Level Sensor



Component Connector End Views

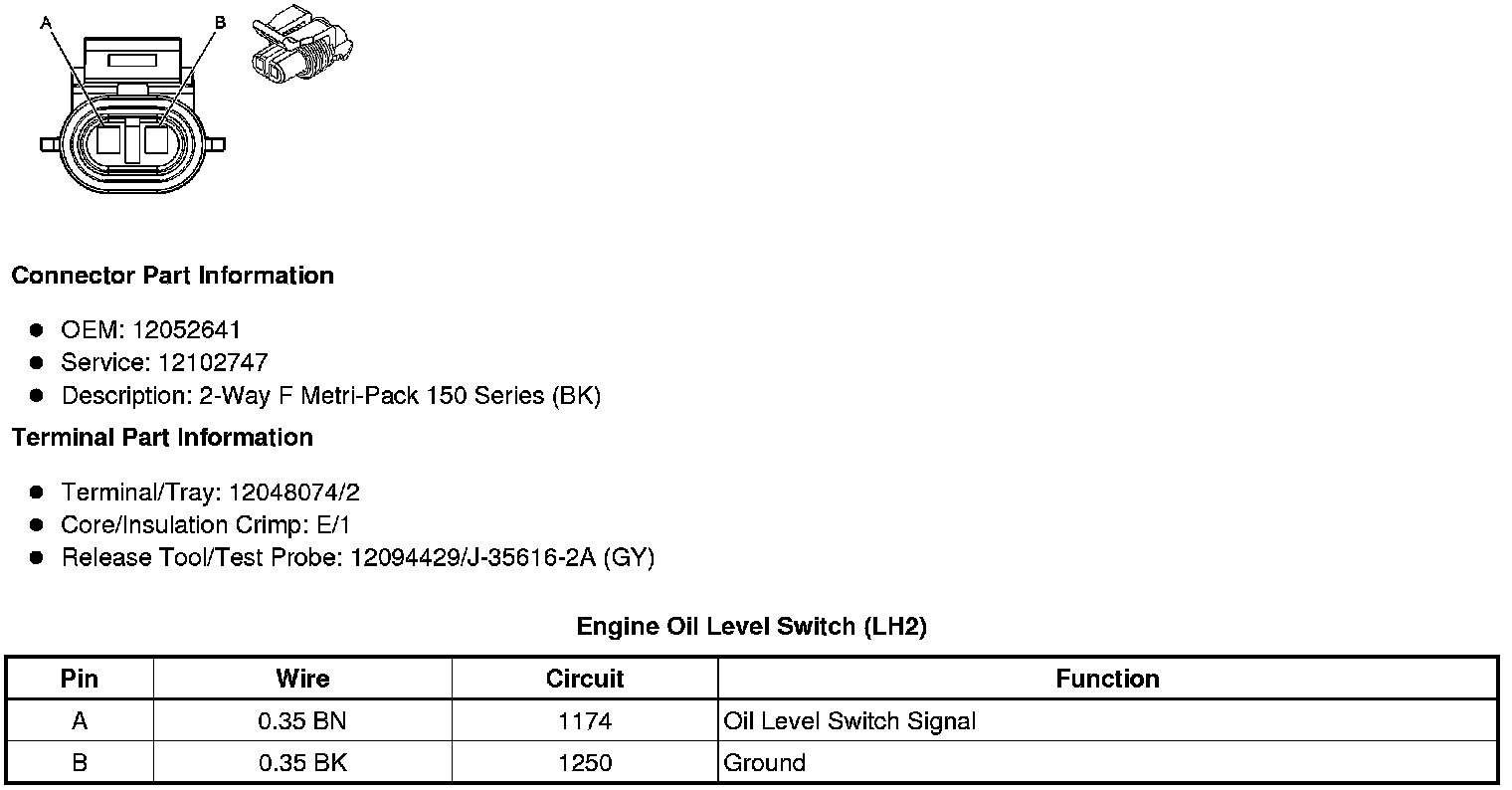

Engine Oil Level Switch (LH2 - 8 CYL, 4.6L, DOHC, HO)






Engine Oil Level/Temperature Sensor (LC3 - 8 Cyl, 4.4L, SC, DOHC)
