Map Light




Component Connector End Views

Courtesy/Reading Lamp - Left Front






Courtesy/Reading Lamp - Left Rear

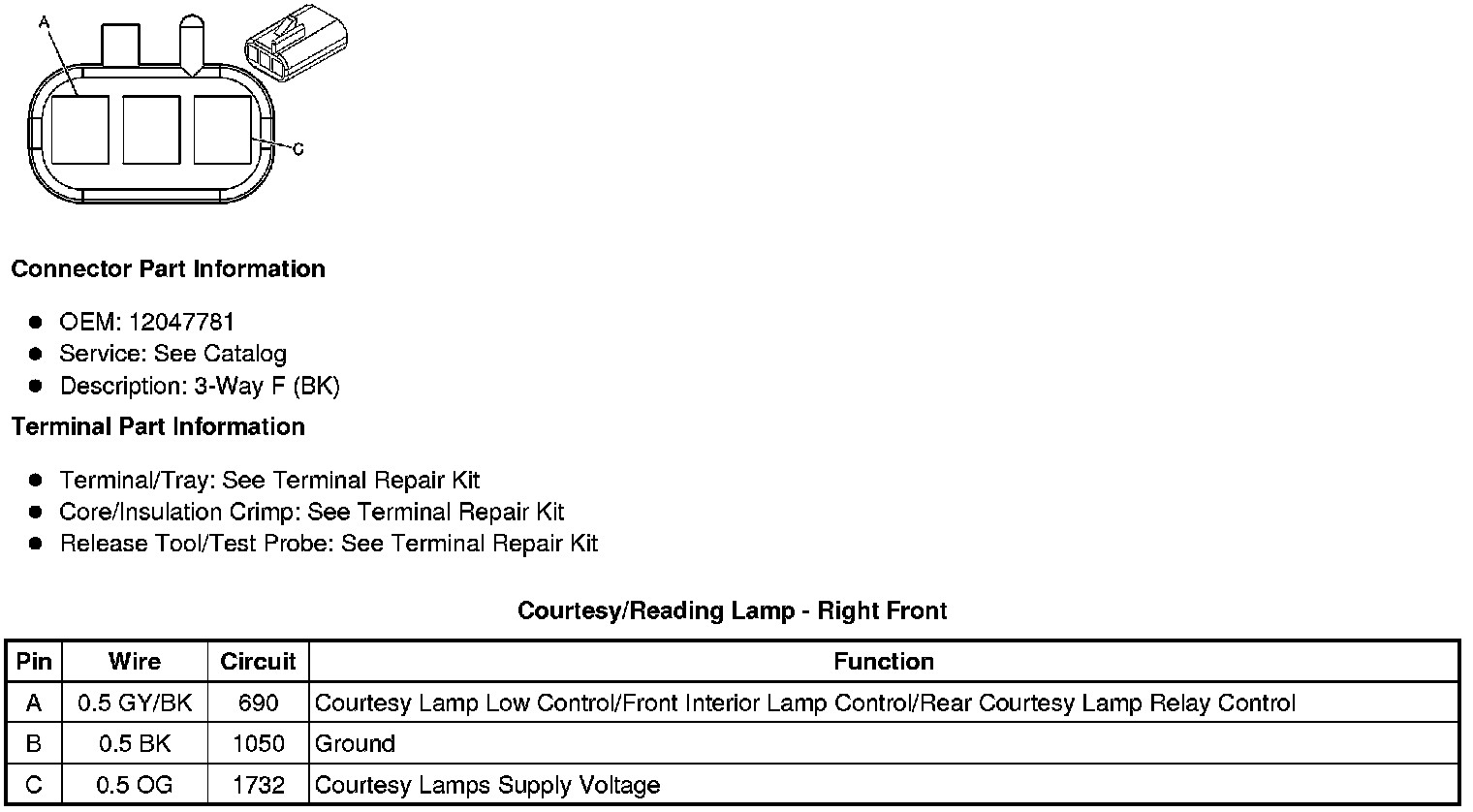

Courtesy/Reading Lamp - Right Front






Courtesy/Reading Lamp - Right Rear
