Power Window Switch




Component Connector End Views

Door Lock/Window Switch - Driver X1






Door Lock/Window Switch - Driver X2

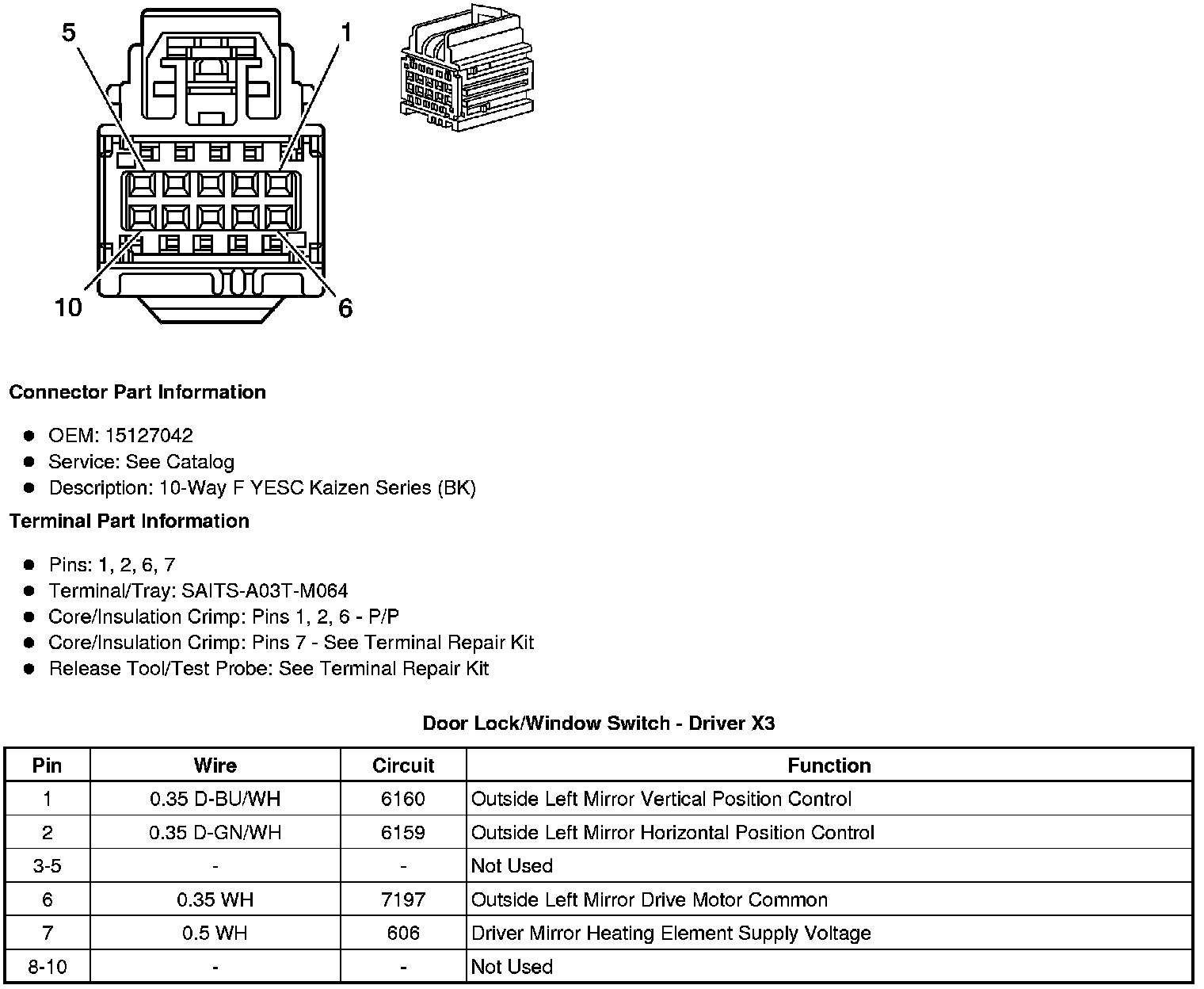

Door Lock/Window Switch - Driver X3

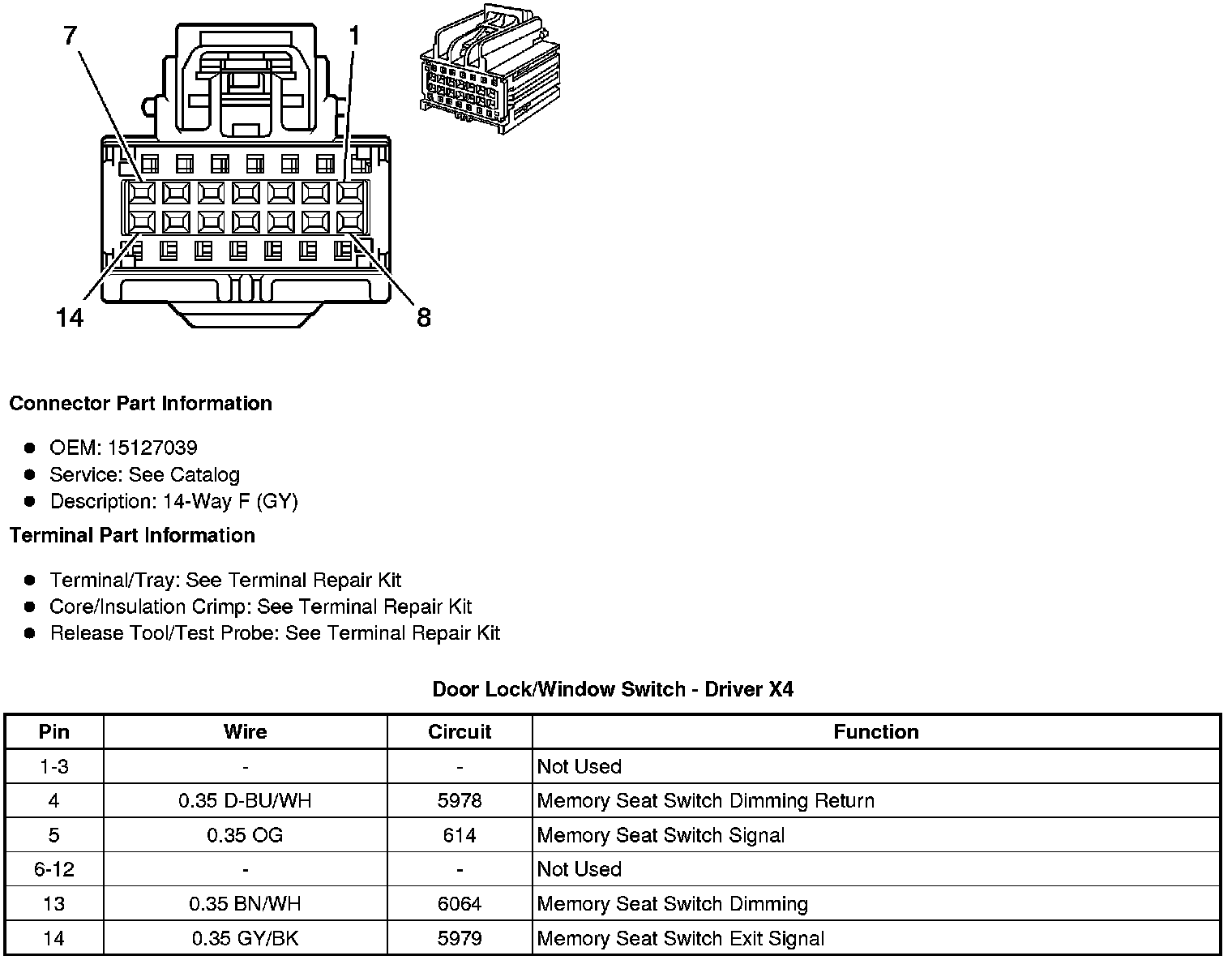

Door Lock/Window Switch - Driver X4

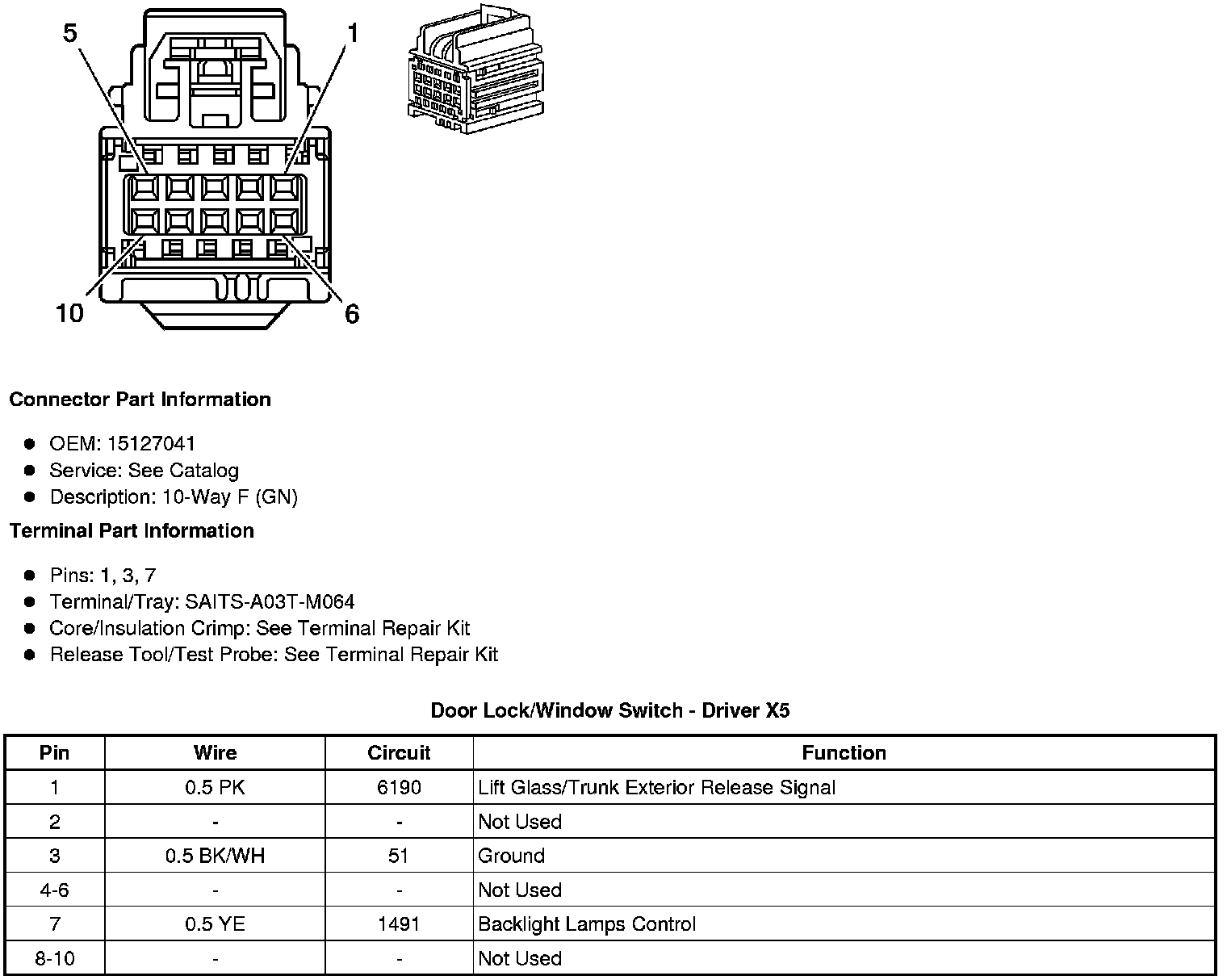

Door Lock/Window Switch - Driver X5

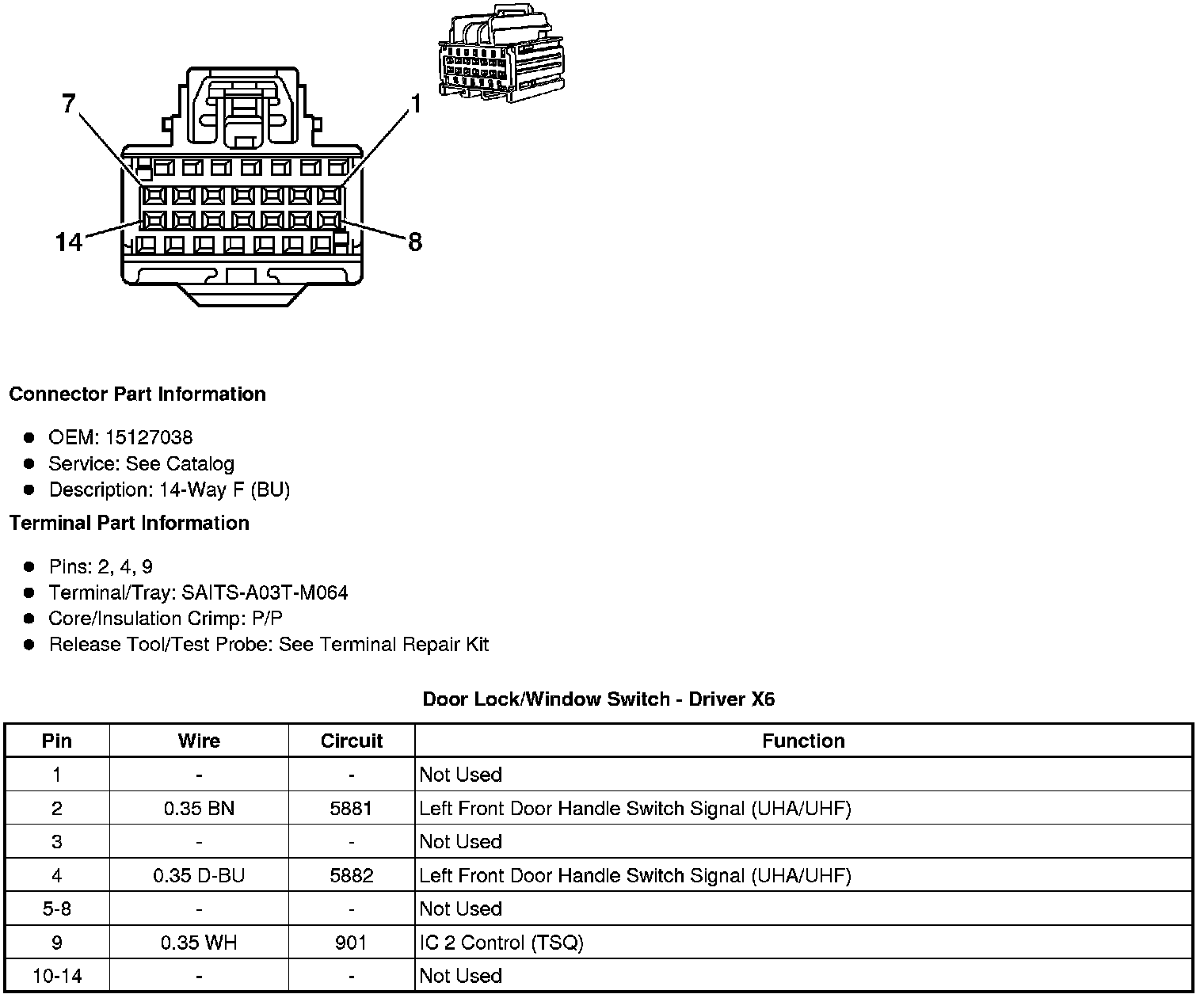

Door Lock/Window Switch - Driver X6

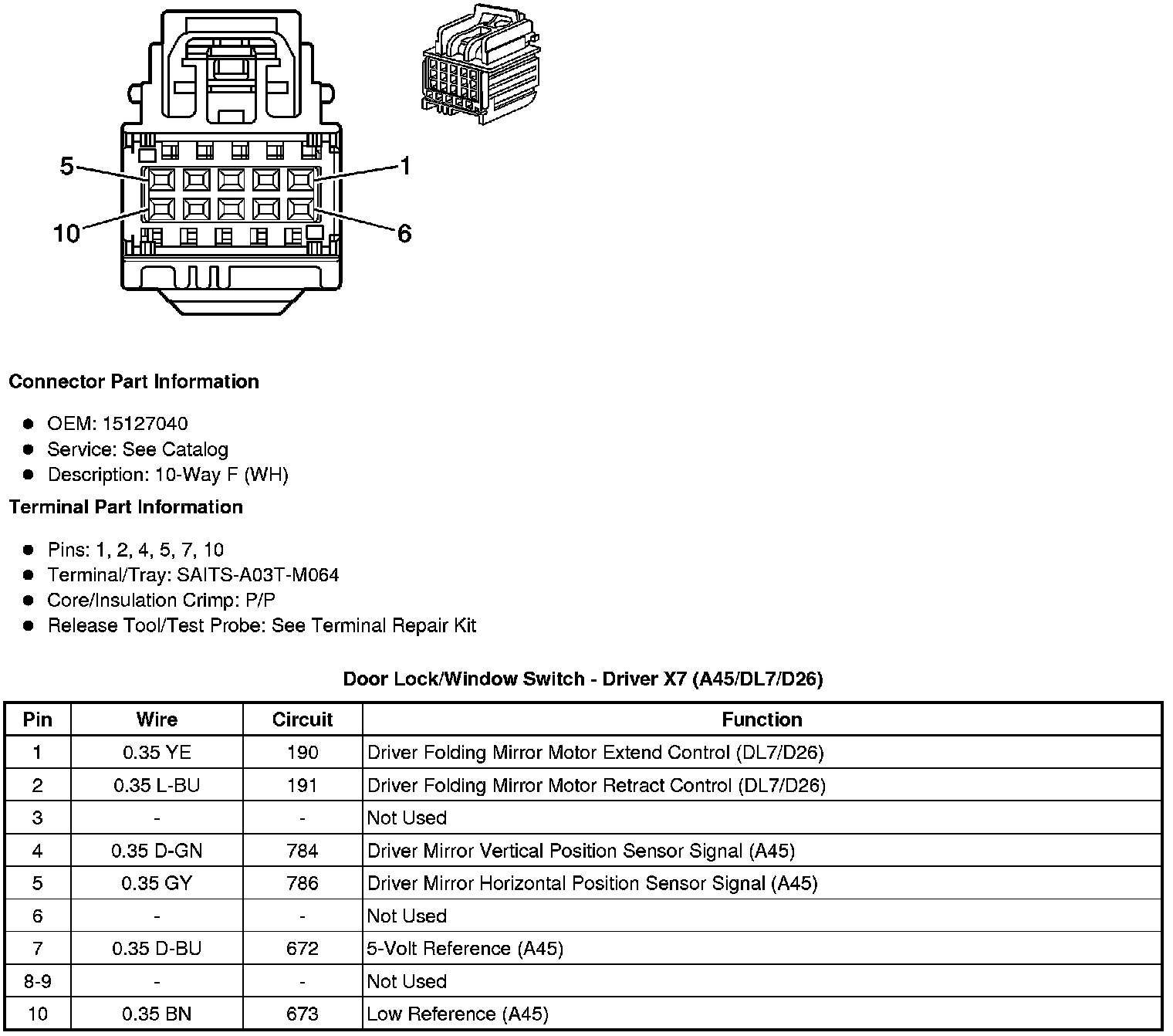

Door Lock/Window Switch - Driver X7 (A45/DL7/D26)

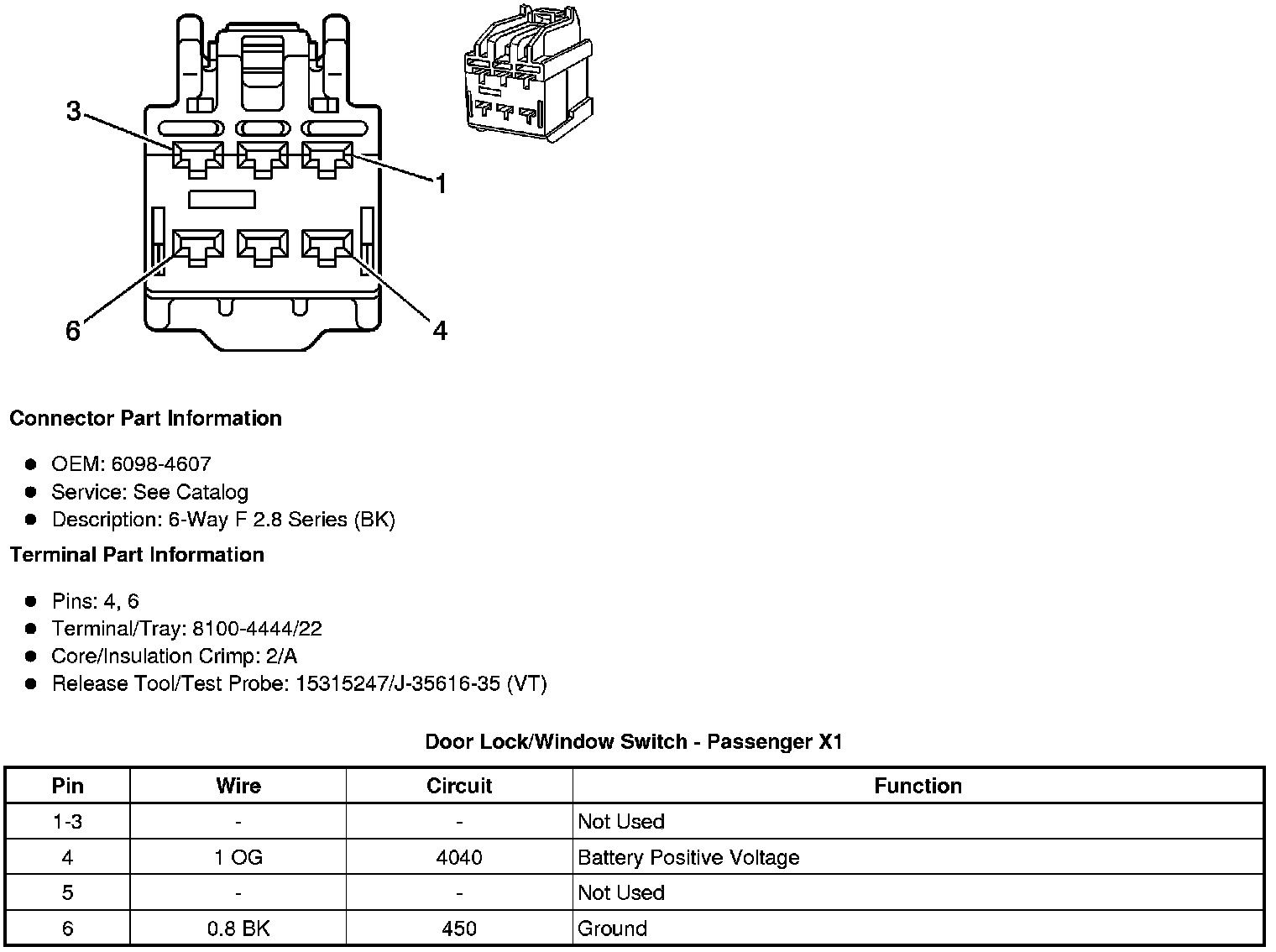

Door Lock/Window Switch - Passenger X1

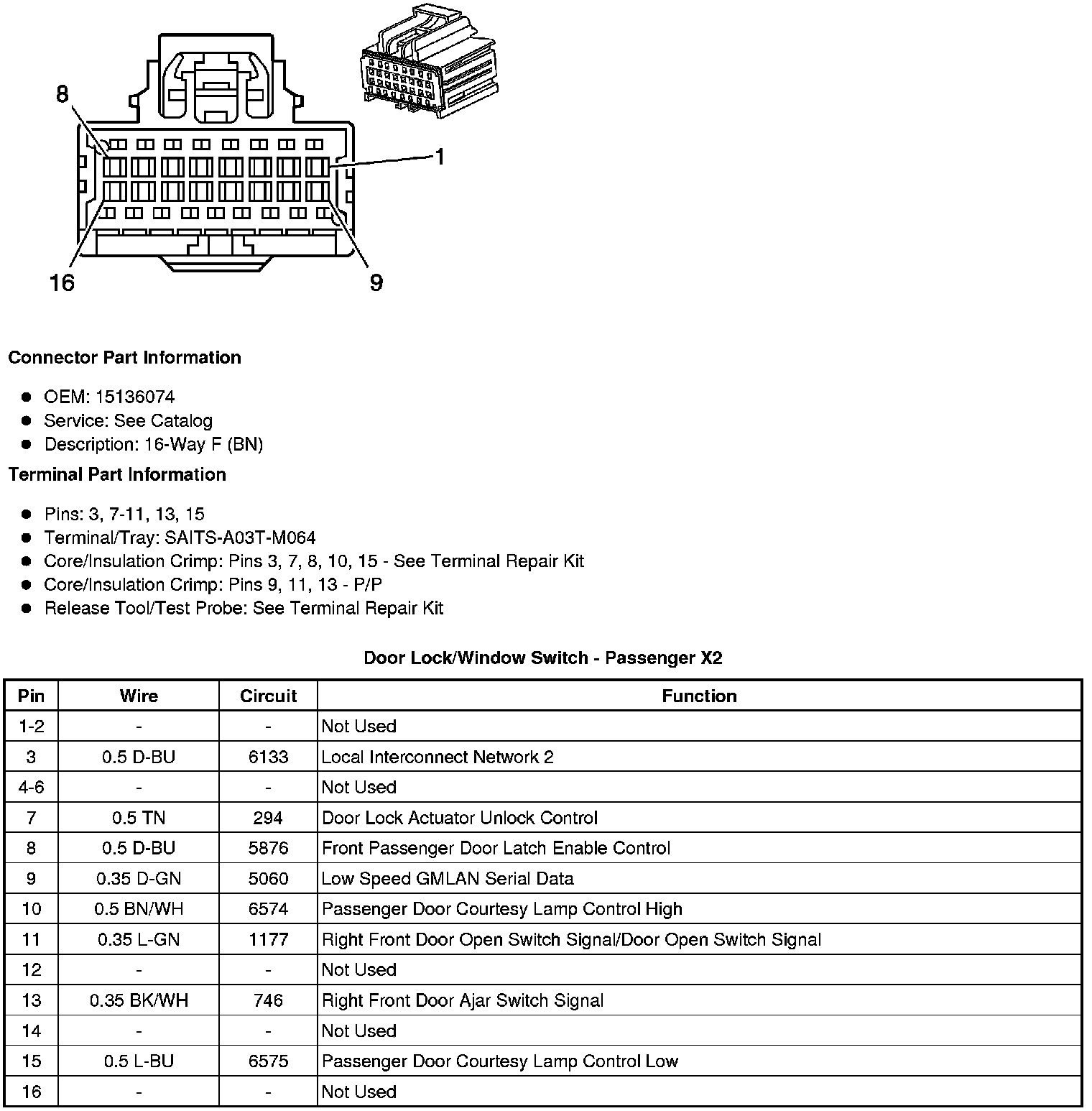

Door Lock/Window Switch - Passenger X2

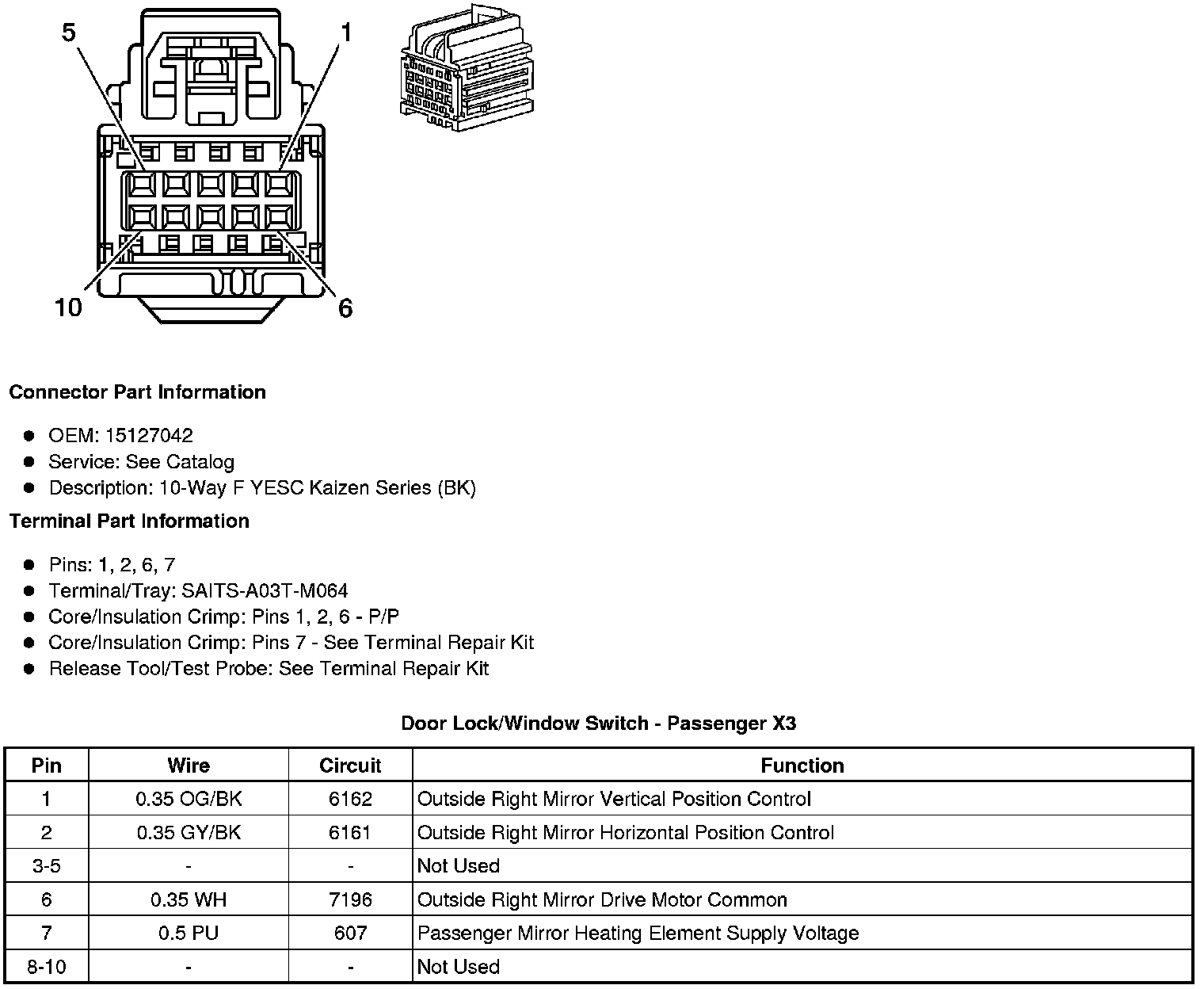

Door Lock/Window Switch - Passenger X3

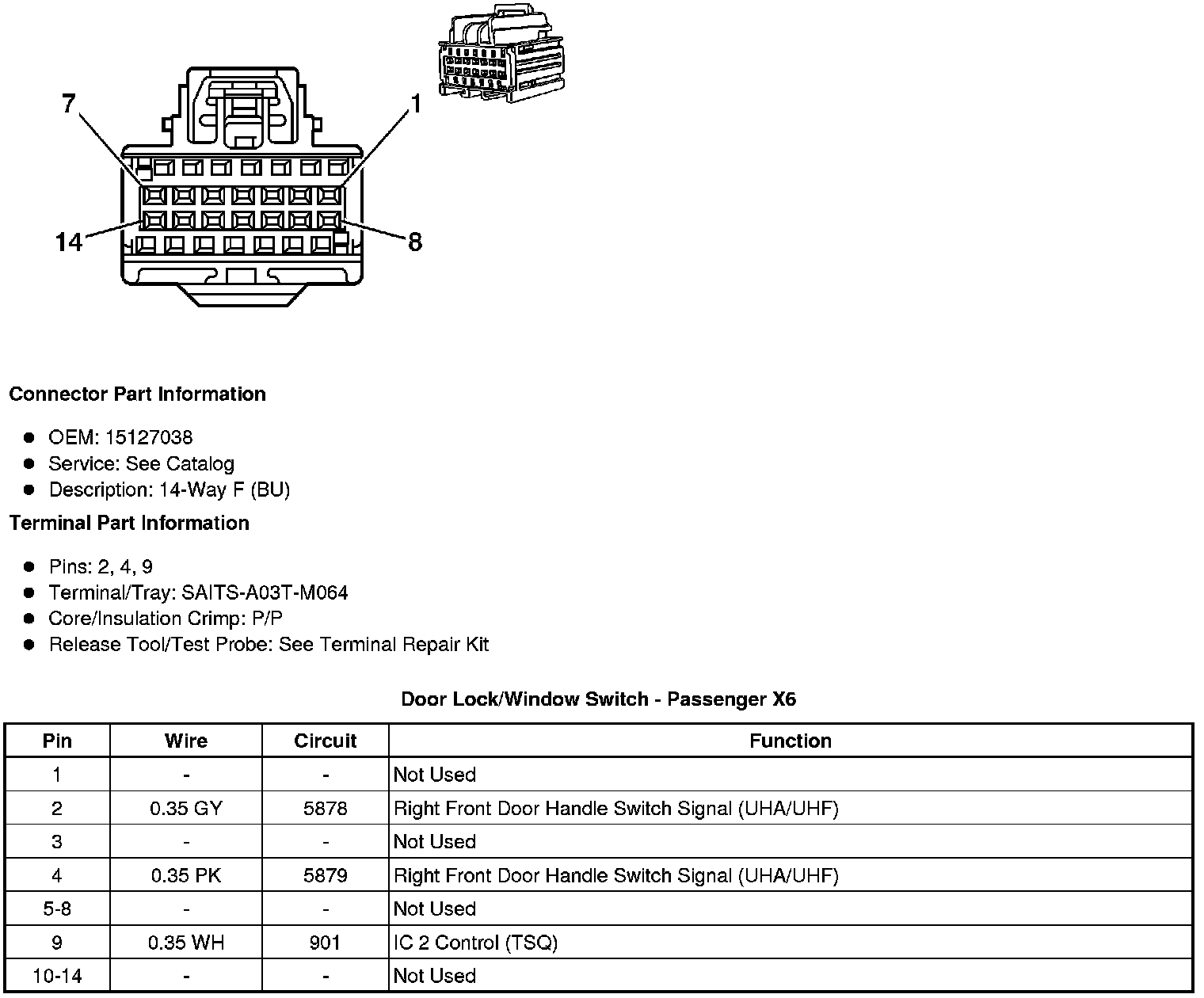

Door Lock/Window Switch - Passenger X6

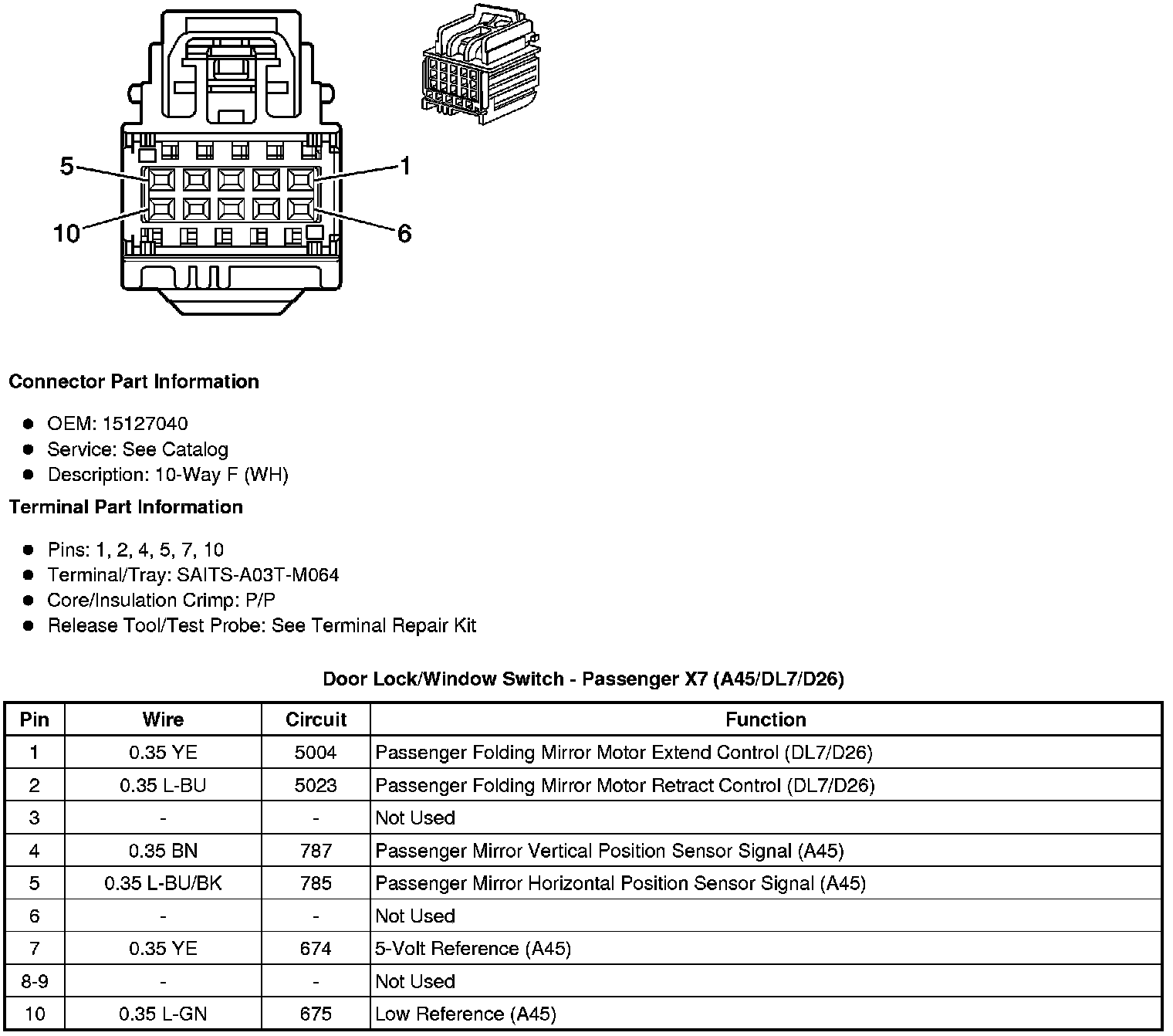

Door Lock/Window Switch - Passenger X7 (A45/DL7/D26)

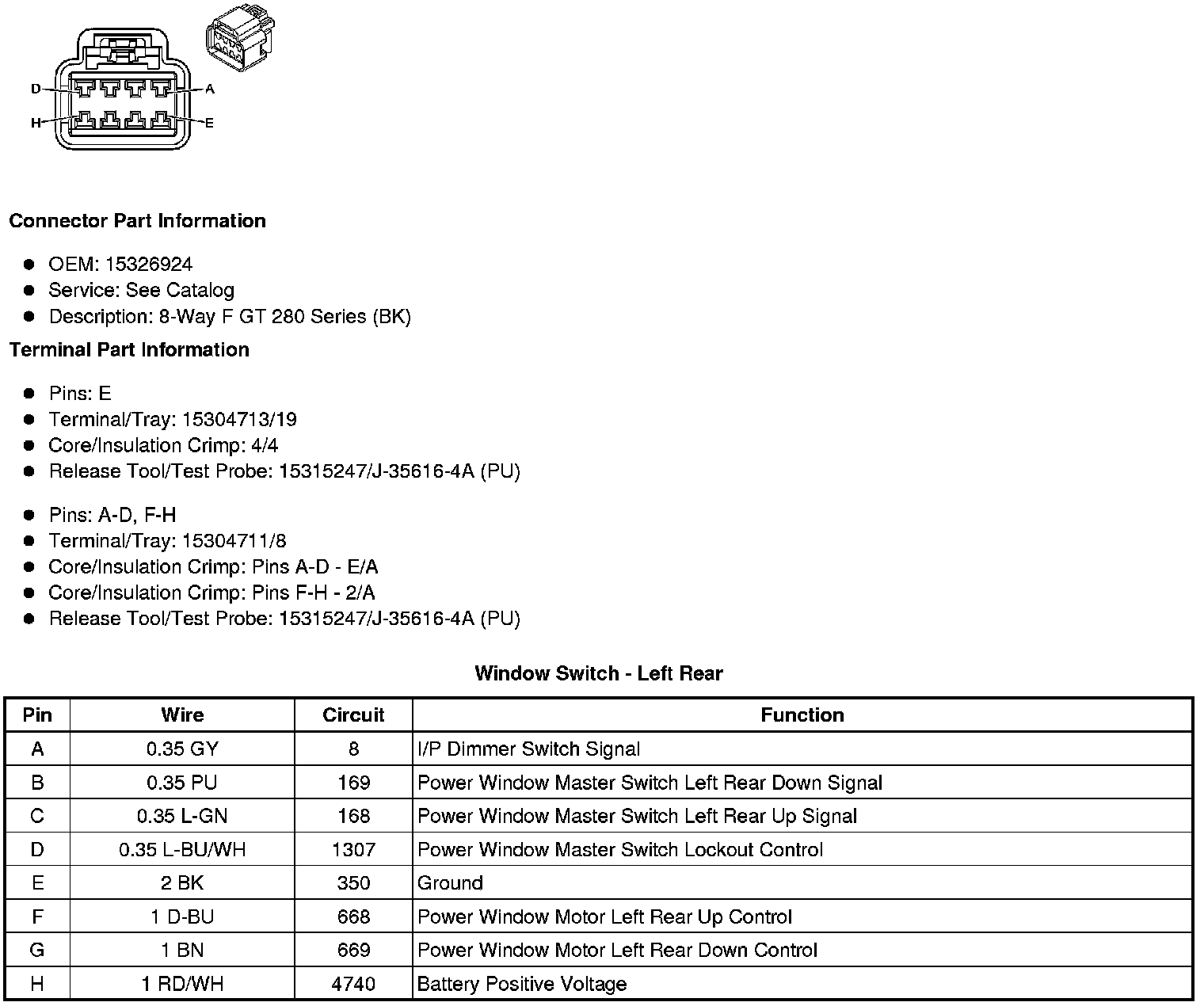

Window Switch - Left Rear

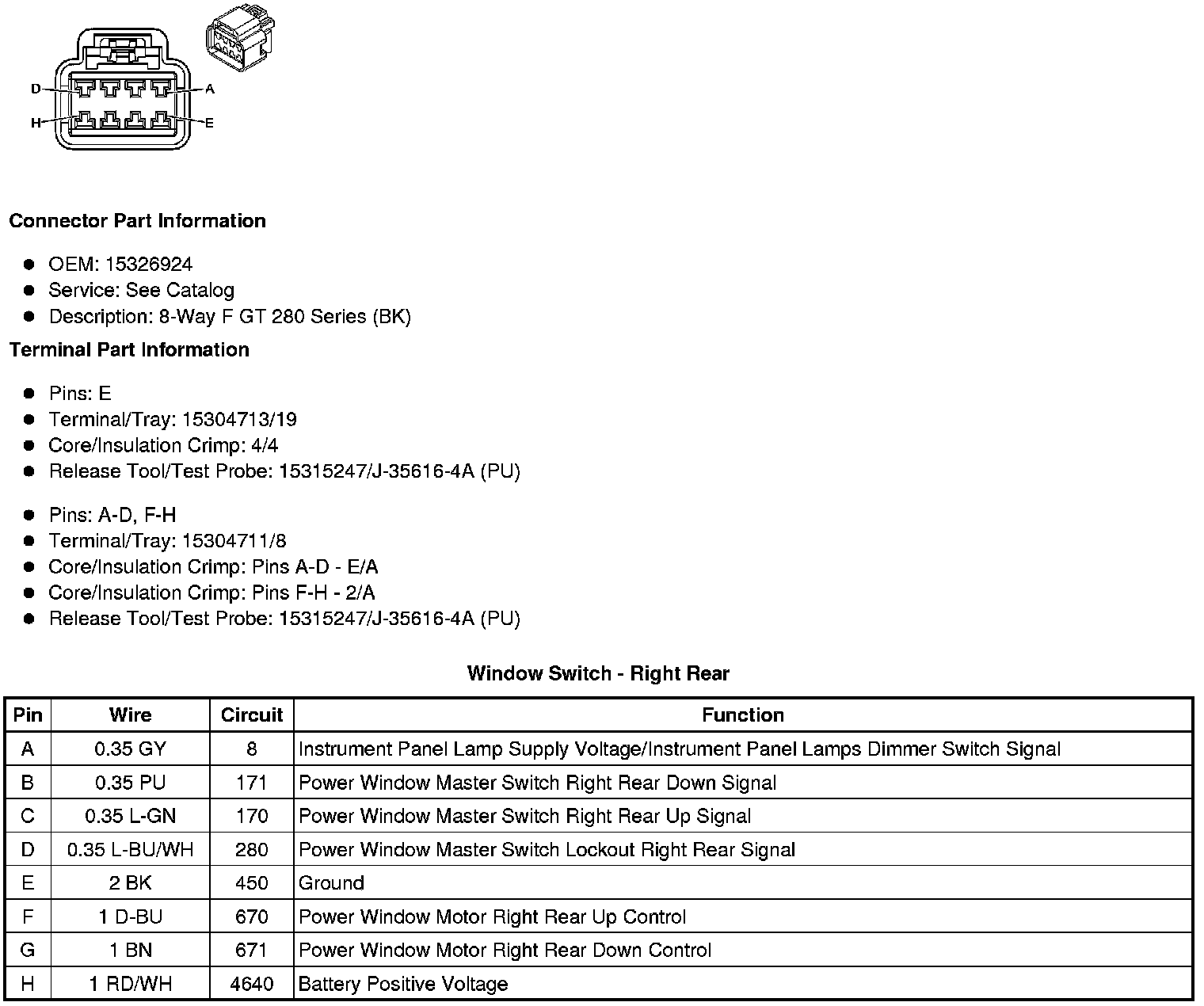

Window Switch - Right Rear
