Control Module, Transfer Case




Component Connector End Views

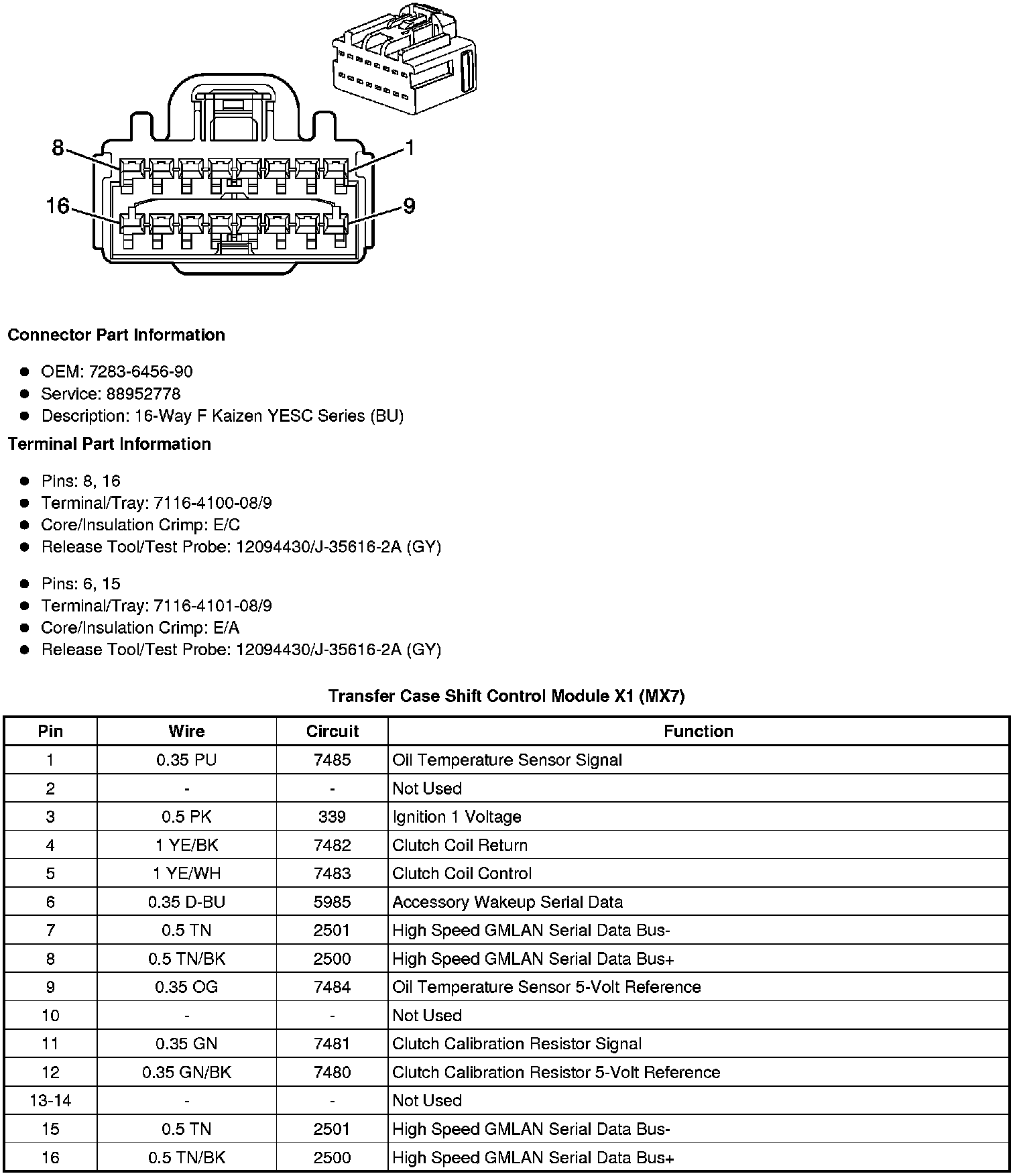

Transfer Case Shift Control Module X1 (MX7)

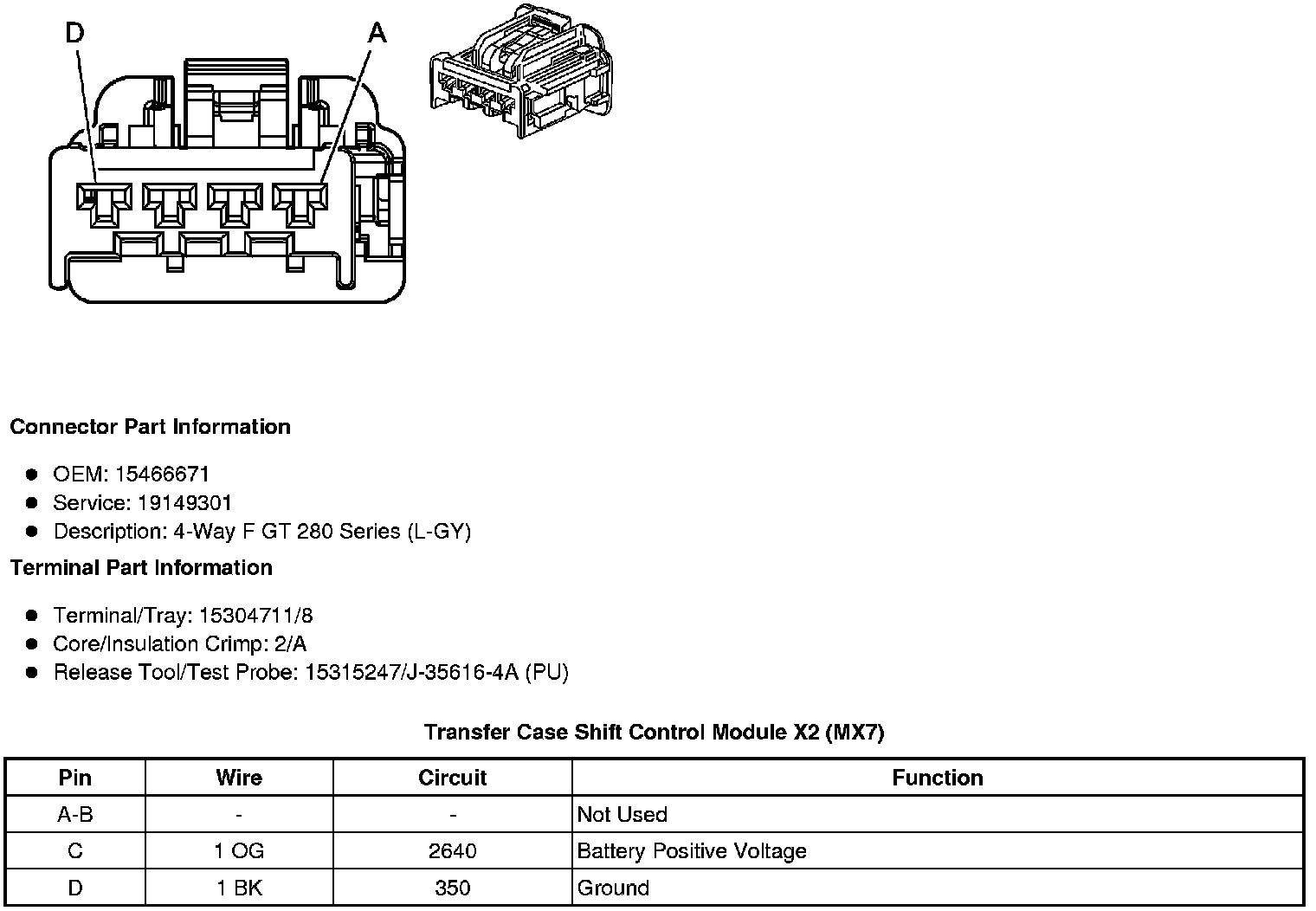

Transfer Case Shift Control Module X2 (MX7)
