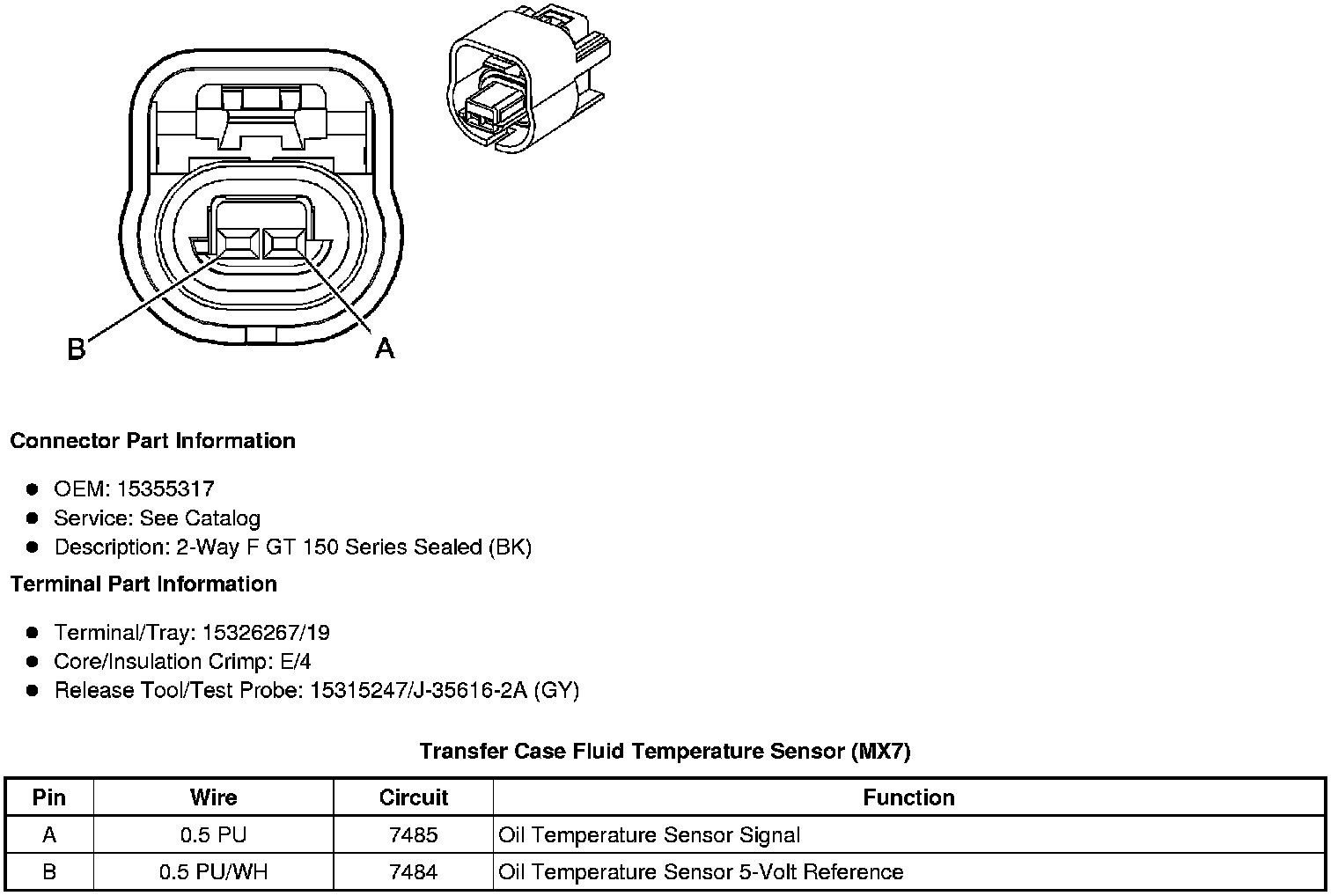

Temperature Sensor/Switch, Transfer Case
Component Connector End Views
Transfer Case Fluid Temperature Sensor (MX7)
