Control Module HVAC: Locations

Instrument Panel/Center Console Component Views

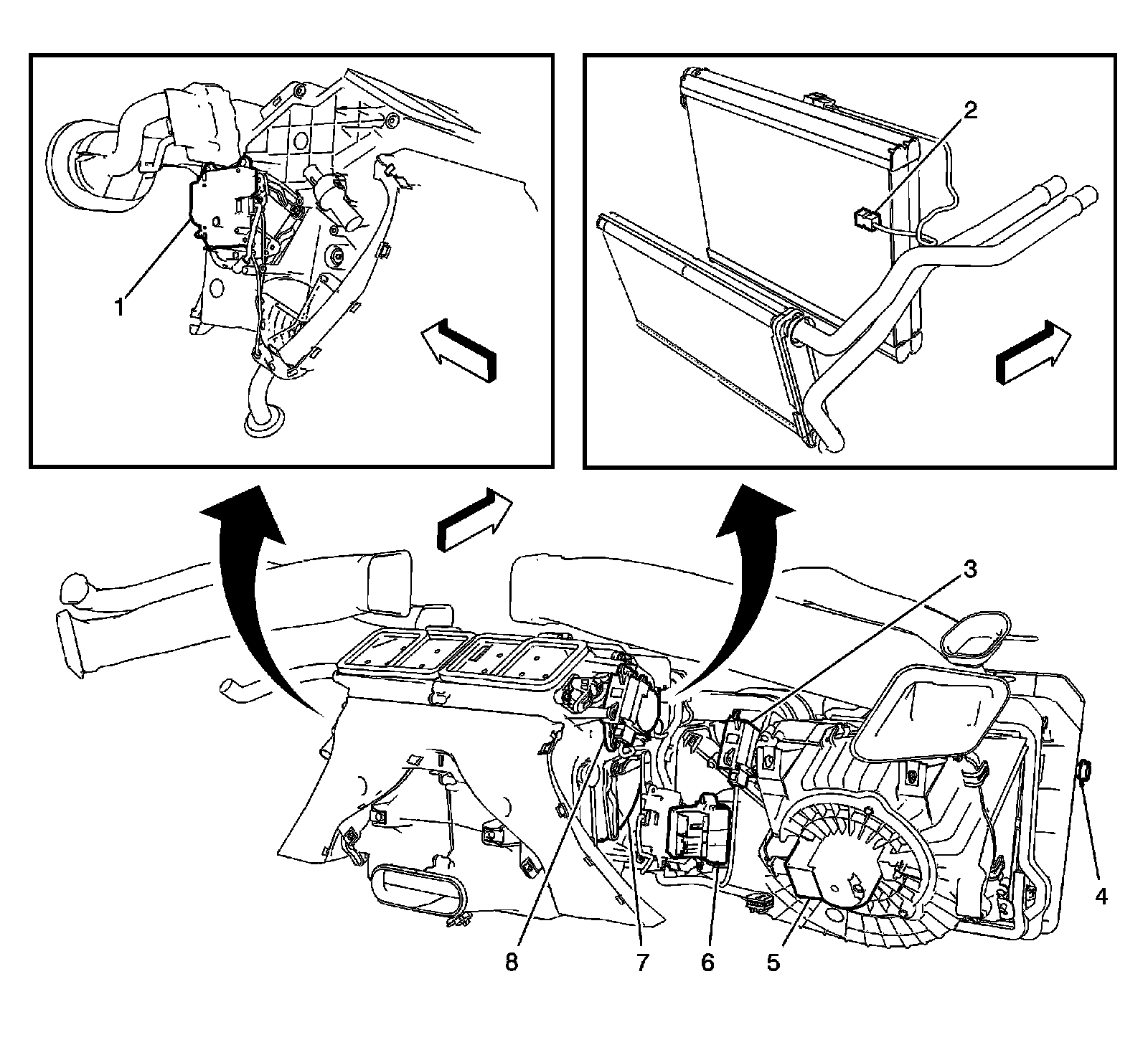

HVAC Module




1 - Air Temperature Actuator - Left
2 - Evaporator Temperature Sensor
3 - Recirculation Actuator
4 - Air Quality Sensor
5 - Blower Motor
6 - Blower Motor Control Module
7 - Air Temperature Actuator - Right
8 - Mode Actuator
