Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

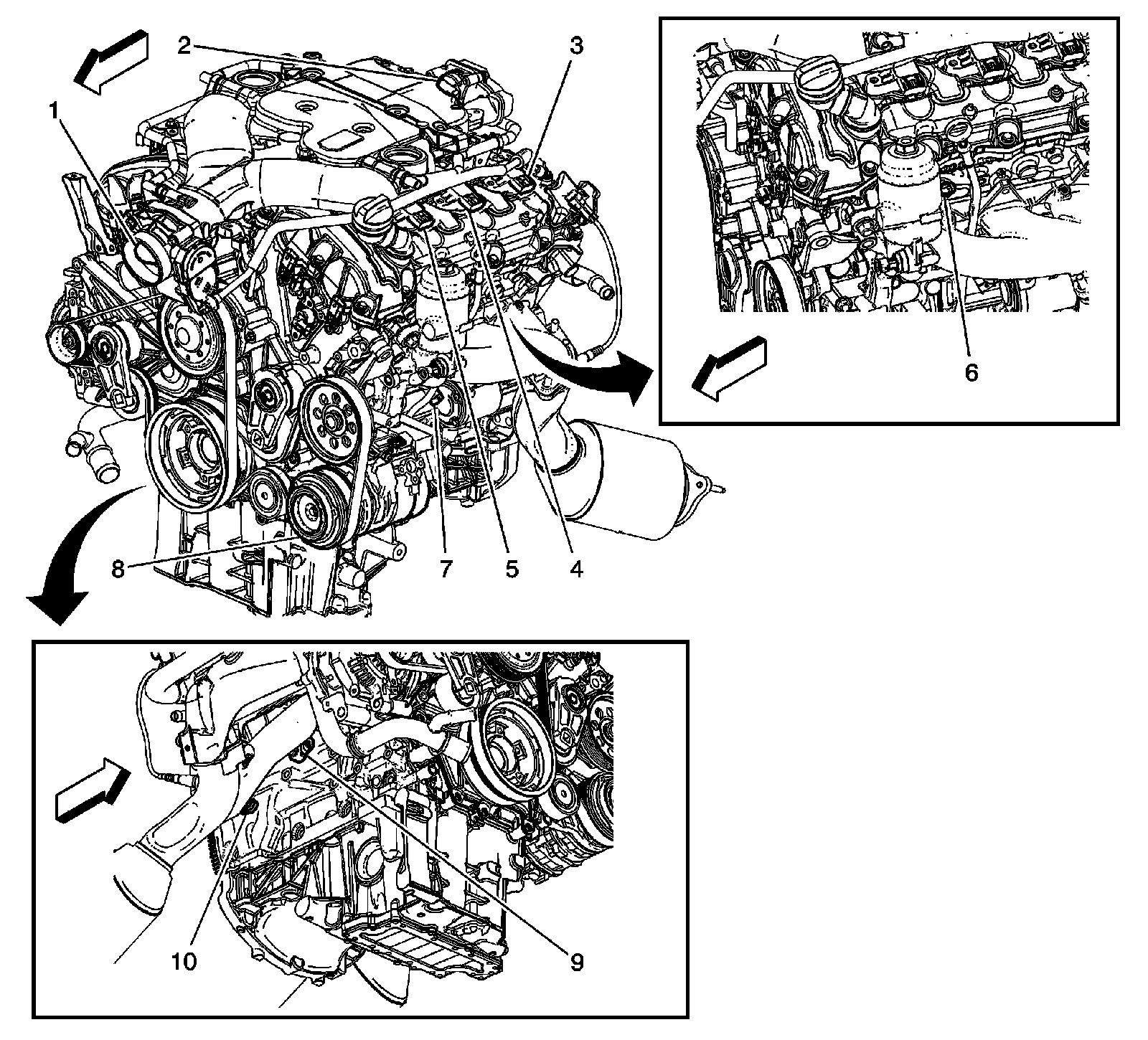

Engine-Right Front (LLT/LP1/LY7)




1 - Throttle Body
2 - Intake Manifold Tuning (IMT) Solenoid Valve (LP1/LY7)
3 - Ignition Coil 5
4 - Ignition Coil 3
5 - Ignition Coil 1
6 - Engine Coolant Temperature (ECT) Sensor
7 - Knock Sensor (KS) 2
8 - A/C Compressor Clutch
9 - Knock Sensor (KS) 1
10 - Crankshaft Position (CKP) Sensor
