Data Link Connector: Locations

Instrument Panel/Center Console Component Views

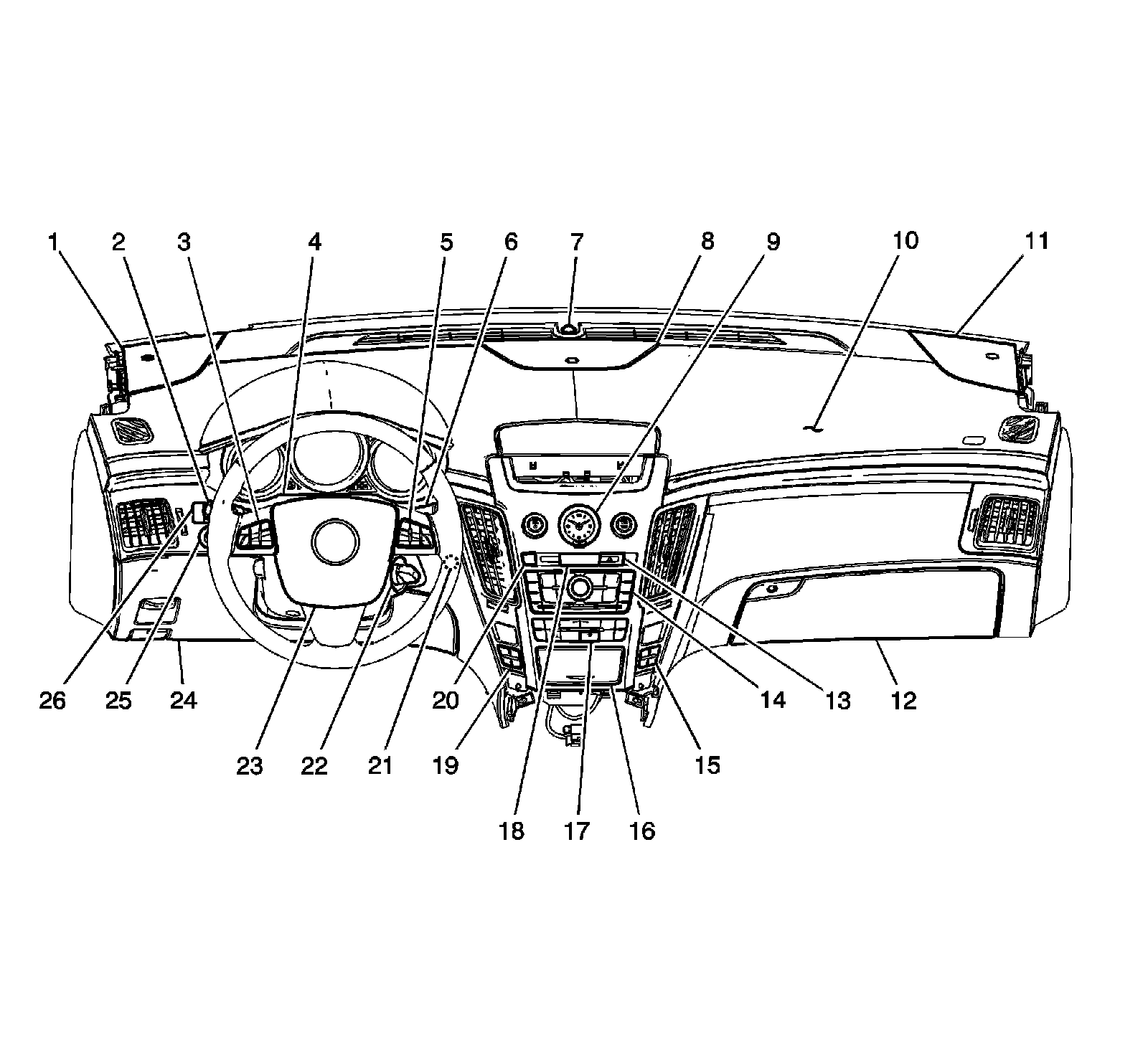

Instrument Panel Overview




1 - Speaker - Left Front
2 - Turn Signal/Multifunction Switch
3 - Steering Wheel Control Switch - Left
4 - Instrument Panel Cluster (IPC)
5 - Steering Wheel Control Switch - Right
6 - Windshield Wiper/Washer Switch
7 - Sunload Sensor
8 - Speaker - Center I/P
9 - Analog Clock
10 - Inflatable Restraint I/P Module
11 - Speaker - Right Front
12 - I/P Compartment Lamp
13 - Hazard Switch
14 - Radio/Navigation Unit
15 - Heated Seat Switch - Front Passenger Seat
16 - Accessory Power Outlet - Center Console
17 - Radio/HVAC Control
18 - Inflatable Restraint Front Passenger Air Bag On/Off Indicator
19 - Heated Seat Switch-Driver
20 - Navigation/Radio Screen Up/Screen Down Switch
21 - Air Temperature Sensor - Inside
22 - Ignition Switch
23 - Inflatable Restraint Steering Wheel Module
24 - Data Link Connector (DLC)
25 - I/P Dimmer Switch
26 - Driver Information Center (DIC) Switch
