Fuel Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

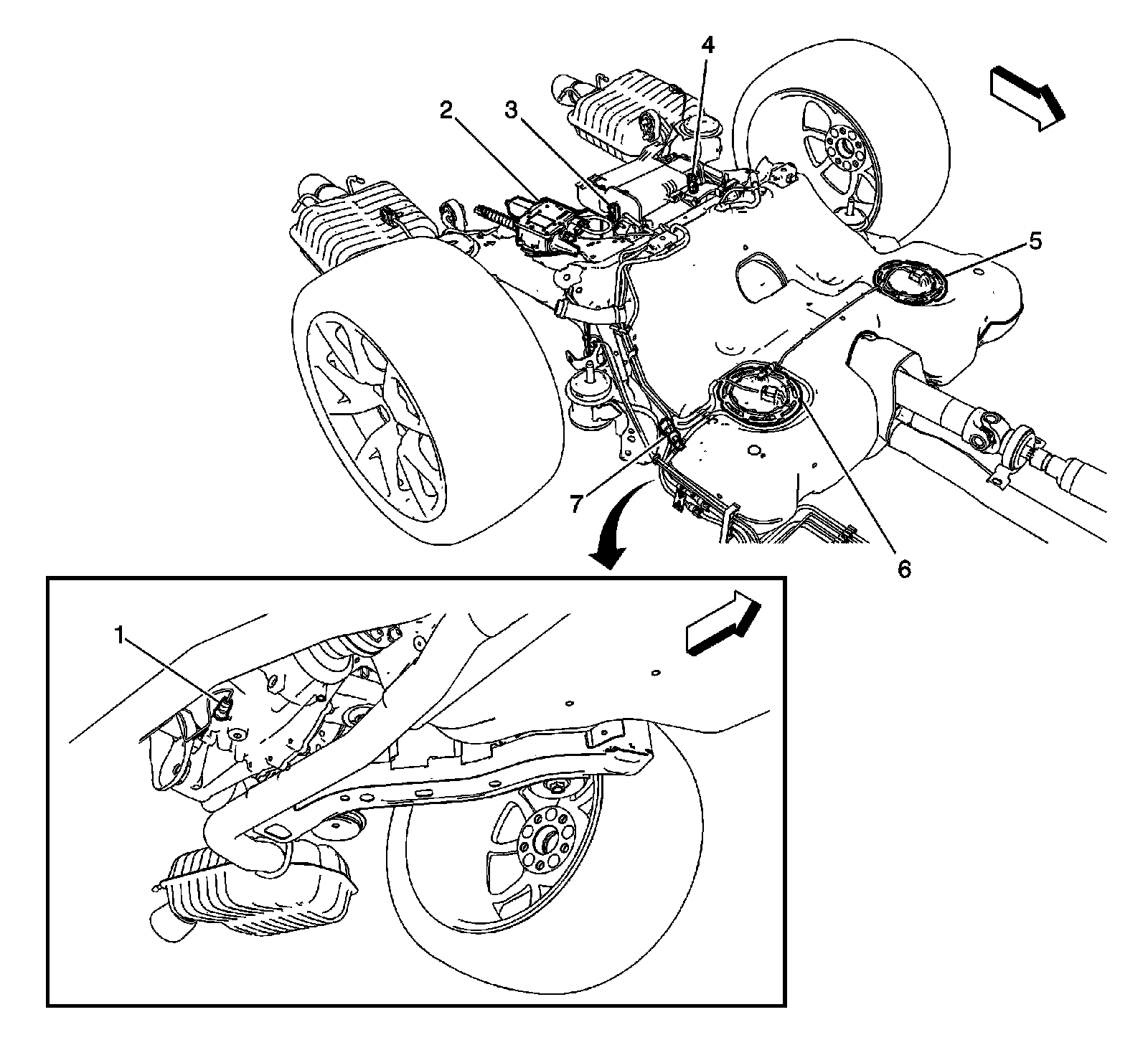

Rear Chassis Components V-Series




1 - Rear Differential Temperature Sensor
2 - Park Brake Module (J77)
3 - Fuel Tank Pressure Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Fuel Pump and Sender Assembly - Primary
6 - Fuel Tank - Secondary
7 - Fuel Pressure Sensor
