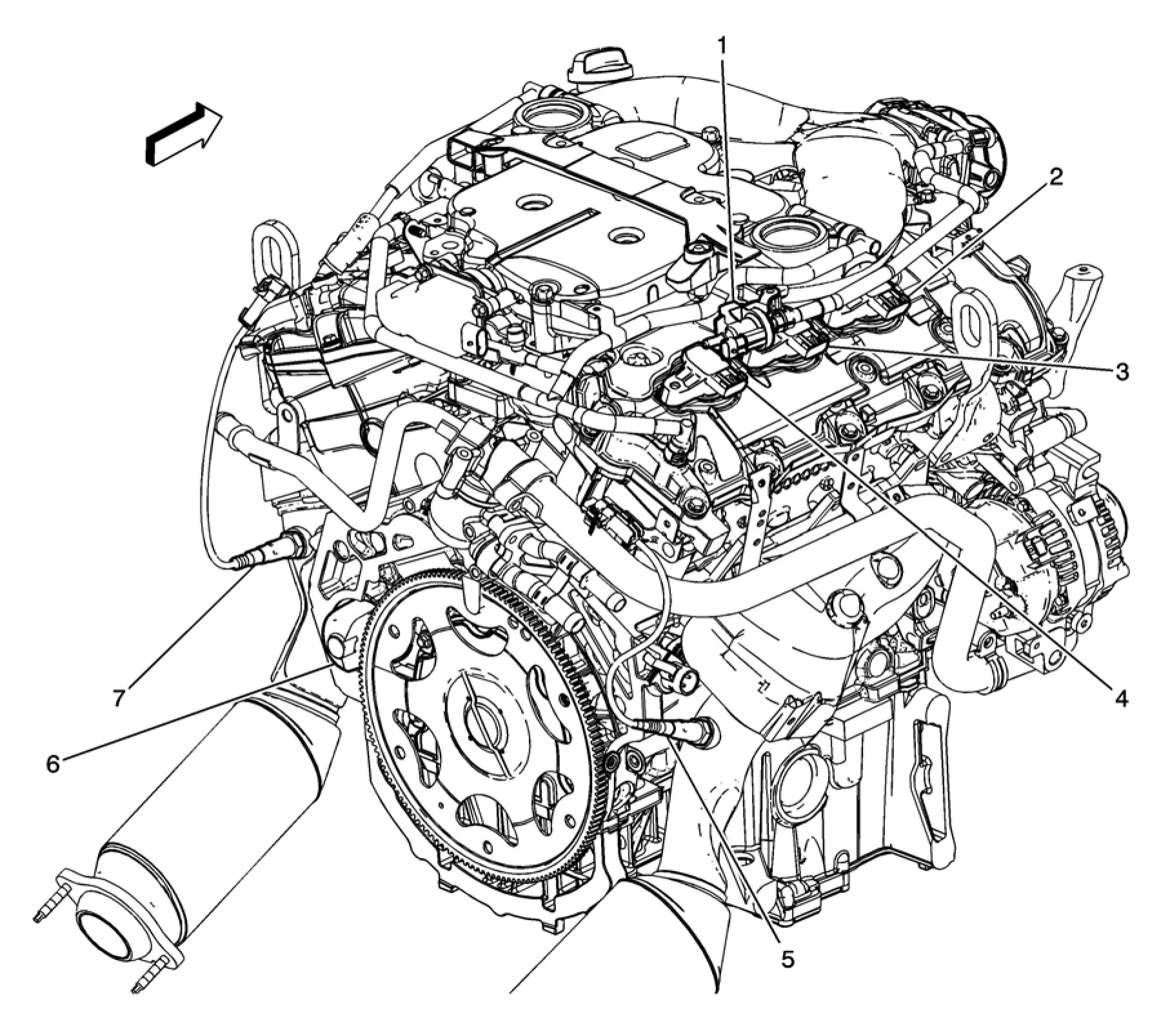

Engine-Right Rear (LLT/LP1/LY7)

1 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
2 - Ignition Coil 1
3 - Ignition Coil 3
4 - Ignition Coil 5
5 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
6 - Starter Motor
7 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
