System Specifications

TIMING CHAIN TENSIONER

Primary Camshaft Drive Chain
Tensioner Bolts 23 Nm (17 lb ft)

Secondary Camshaft Drive Chain
Tensioner Bolts 23 Nm (17 lb ft)

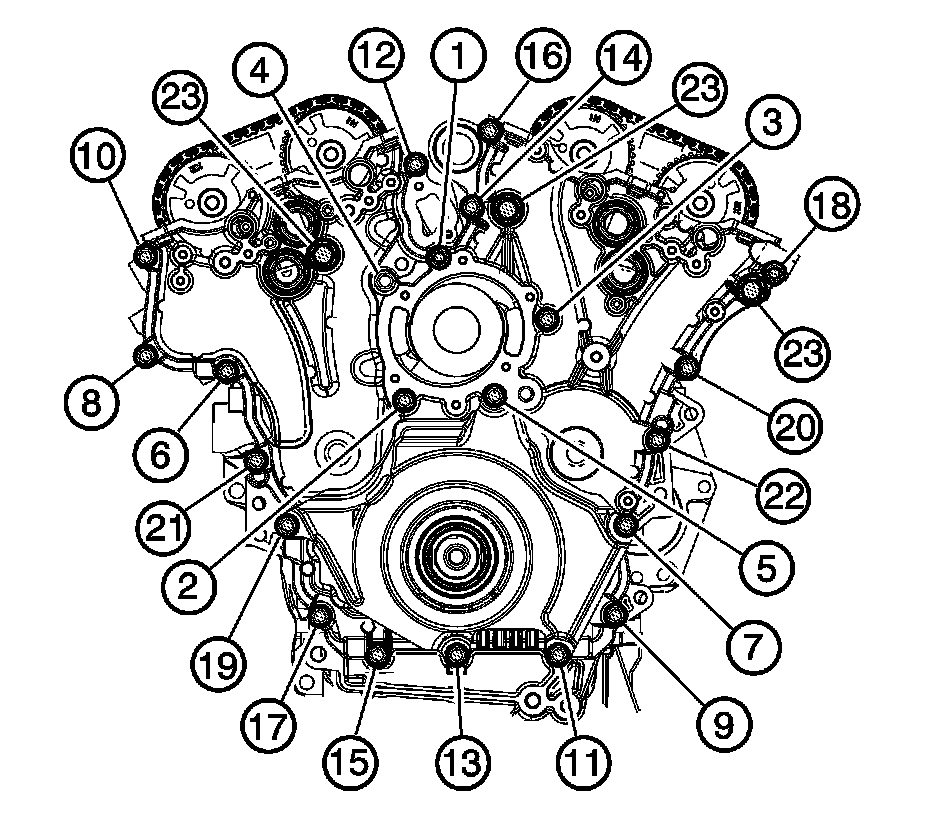

TIMING COVER




Engine Front Cover Bolt 23 Nm (17 lb ft)

CRANKSHAFT BALANCER BOLT

First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees
