Control Module: Service and Repair




Transfer Case Shift Control Module Replacement

Removal Procedure

1. Remove the right side instrument panel insulator. Refer to Instrument Panel Insulator Replacement - Right Side (Left Hand Drive) (Service and Repair)Instrument Panel Insulator Replacement - Right Side (Right Hand Drive) (Instrument Panel, Gauges and Warning Indicators).

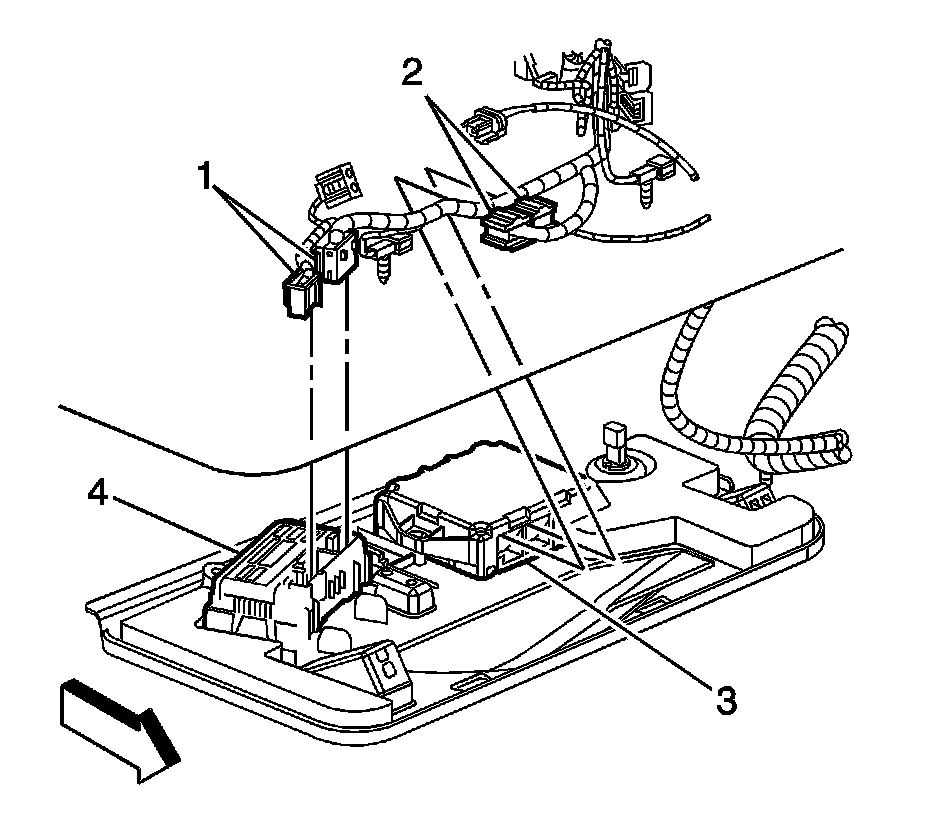

2. Remove the electrical connectors (1) from the transfer case shift control module (4).




3. Remove the transfer case shift control module (1) from the instrument panel insulator (2).

Installation Procedure




1. Install the transfer case shift control module (1) to the instrument panel insulator (2).




2. Install the electrical connectors (1) to the transfer case shift control module (4).
3. Install the right side instrument panel insulator. Refer to Instrument Panel Insulator Replacement - Right Side (Left Hand Drive) (Service and Repair)Instrument Panel Insulator Replacement - Right Side (Right Hand Drive) (Instrument Panel, Gauges and Warning Indicators).
4. For module programming and setup information, refer to Control Module References (Programming and Relearning).
