Installation Procedure

WARNING: This page is about a different car, the 2009 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

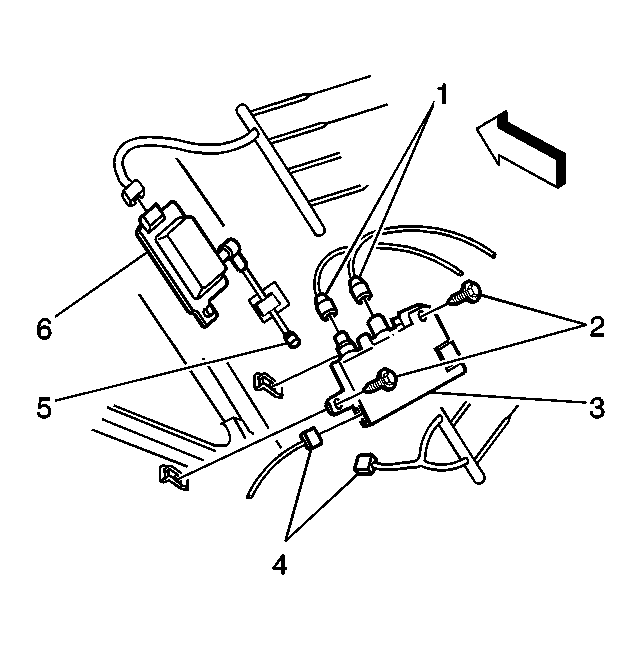

Fig 1: View Of TV Antenna Module & Components

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the TV antenna module (3) and fasteners (2).
Tighten: Tighten the TV antenna module (3) fasteners (2) to 9 N.m (80 lb in).
Connect the electrical wiring and coaxial cables (1, 4, 5) to the TV antenna module (3).
Install the passenger side quarter trim panel. Refer to Quarter Upper Trim Panel Replacement .
