Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2009 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

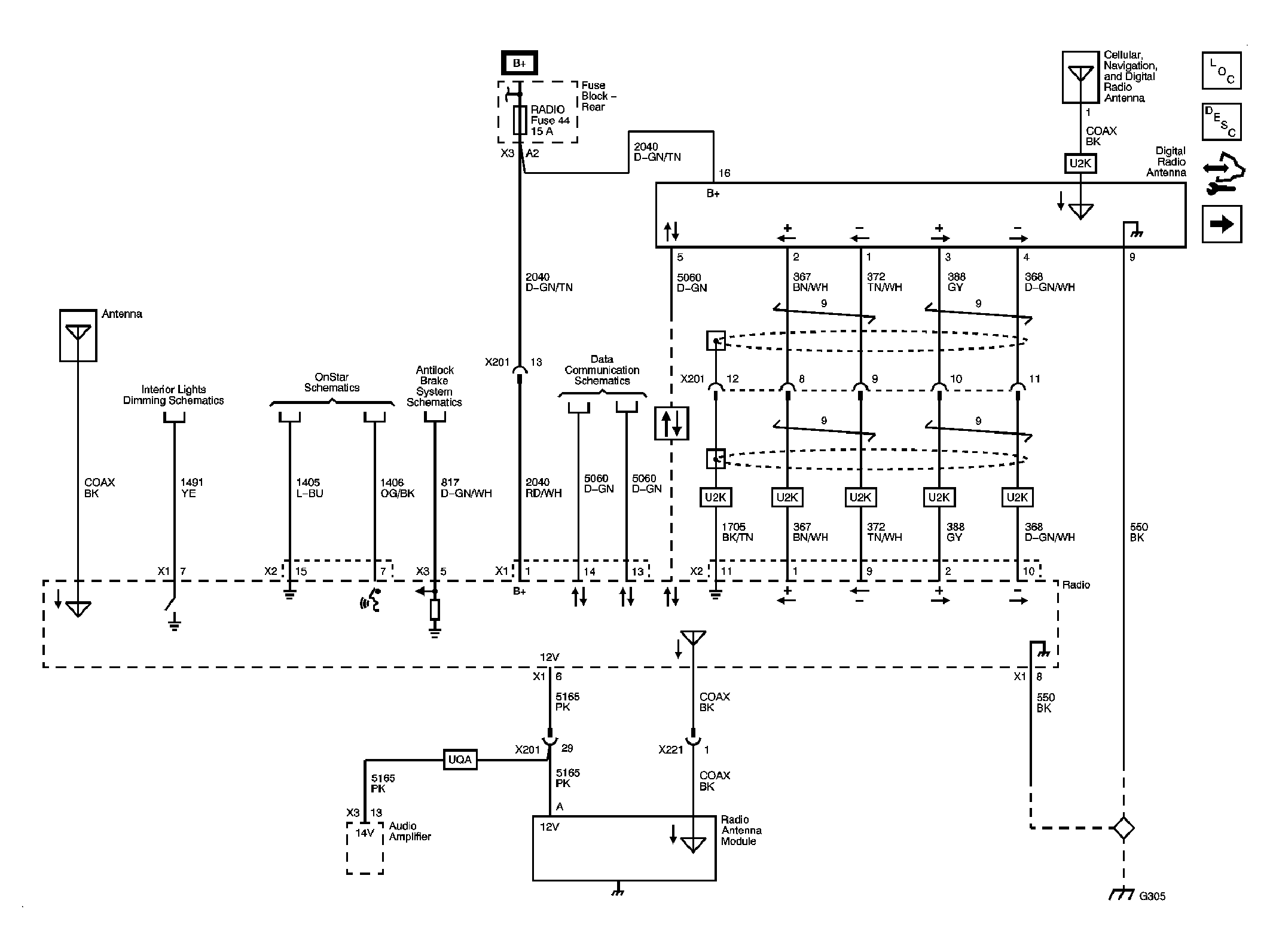

Fig 1: Radio Power and Ground

Courtesy of GENERAL MOTORS CORP.

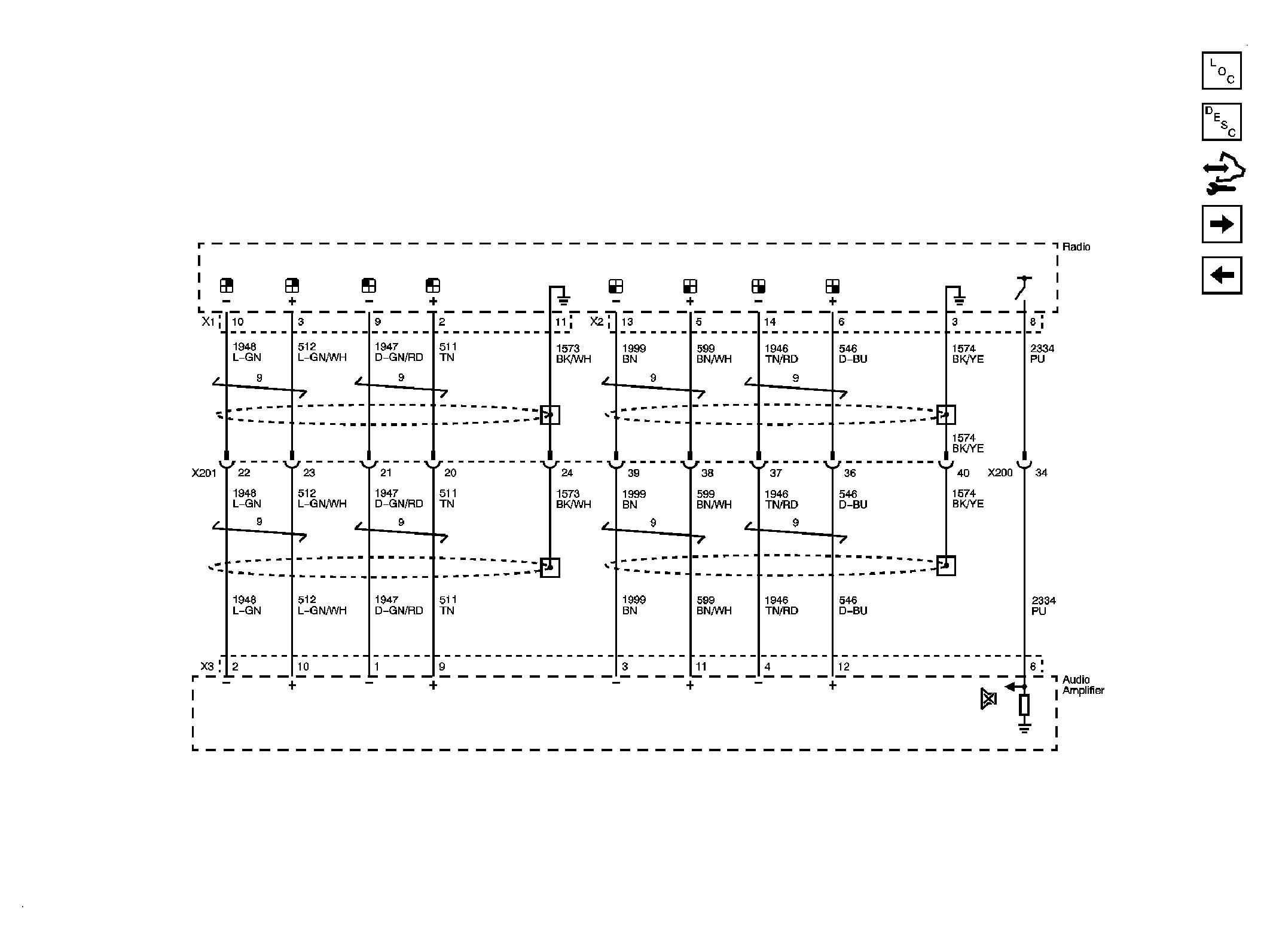

Fig 2: Amplifier (UQA)

Courtesy of GENERAL MOTORS CORP.

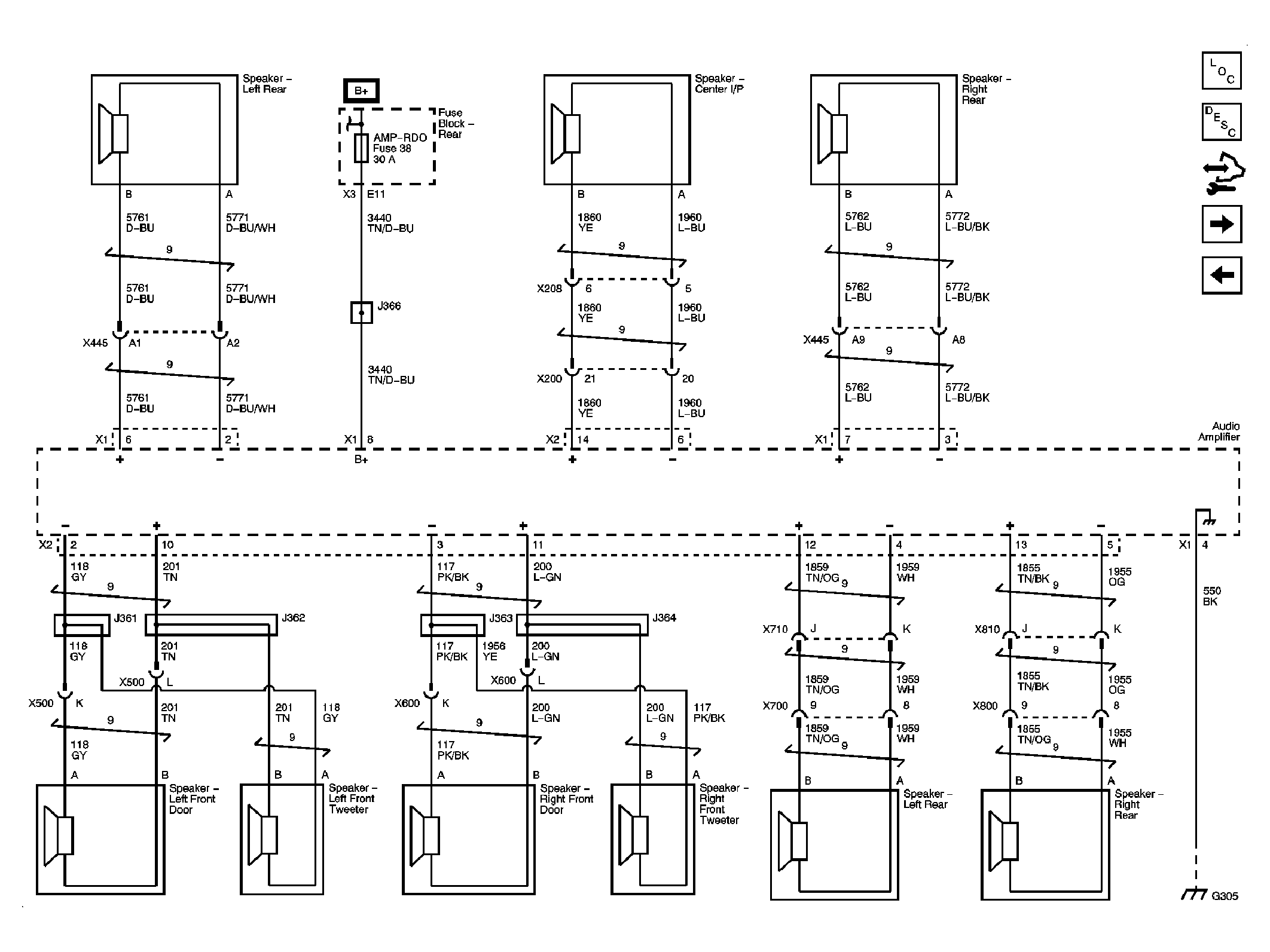

Fig 3: Speakers (UQA)

Courtesy of GENERAL MOTORS CORP.

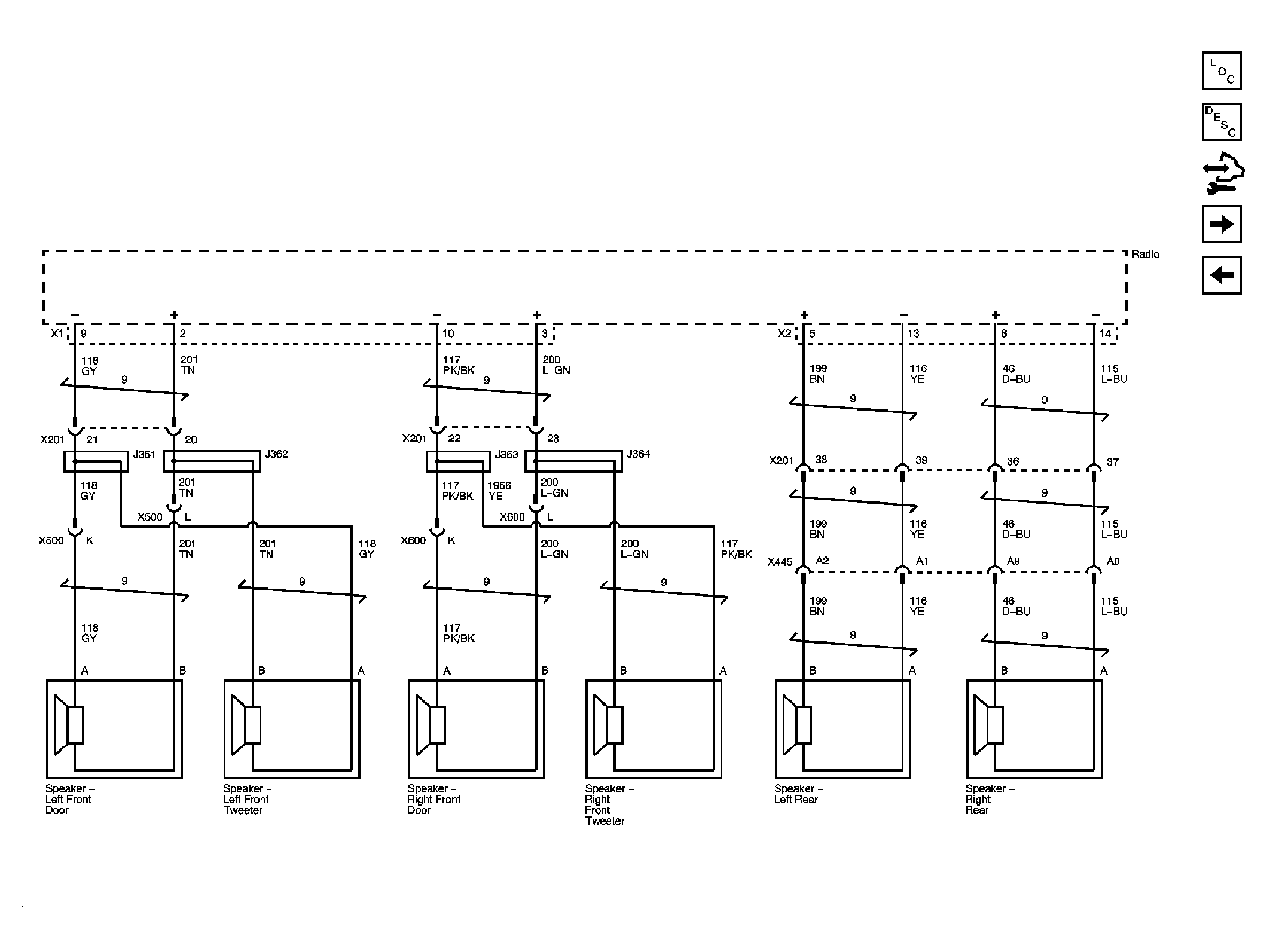

Fig 4: Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

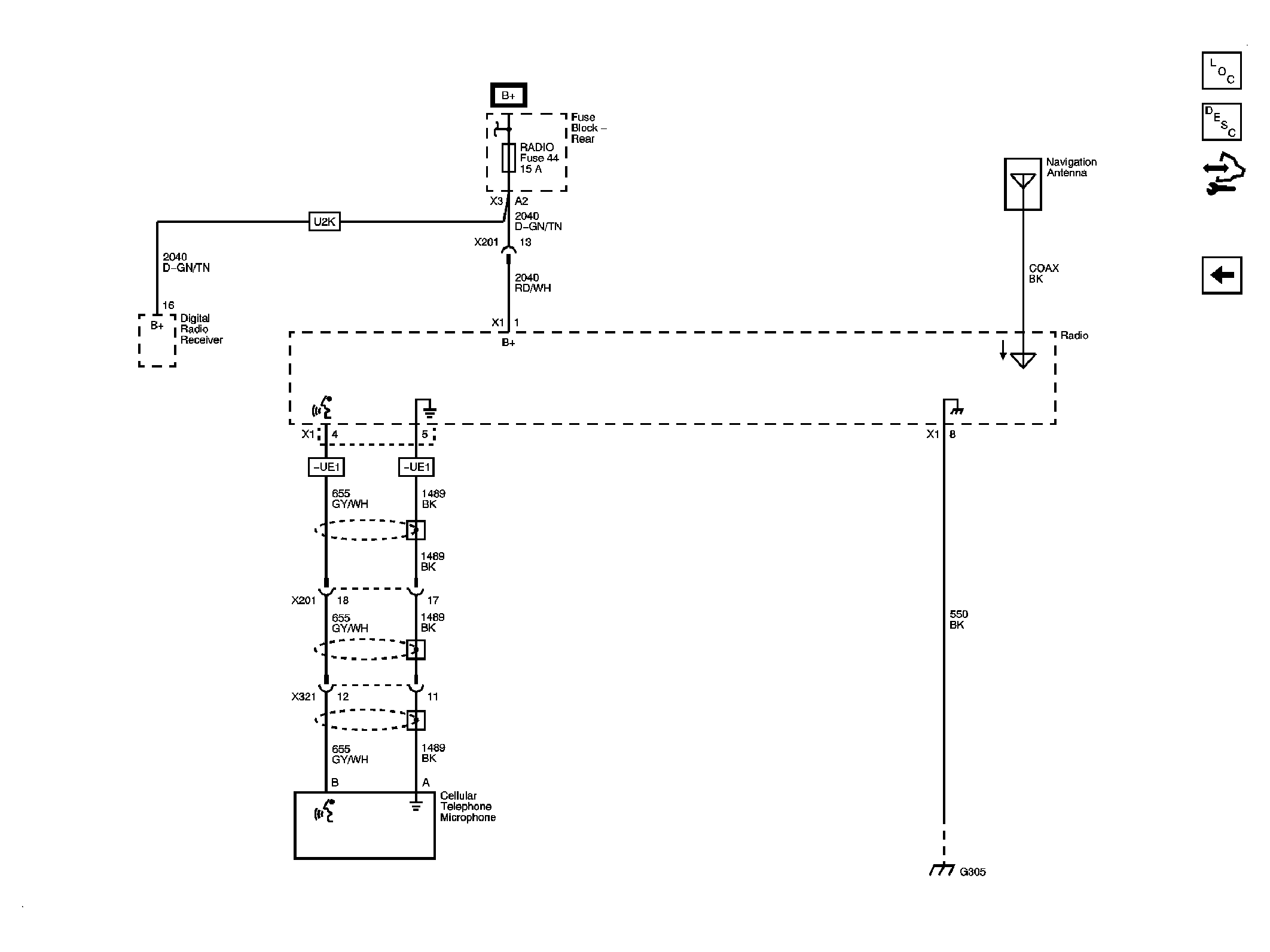

Fig 5: Radio (without UE1)

Courtesy of GENERAL MOTORS CORP.
