Differential Temperature Sensor/Switch

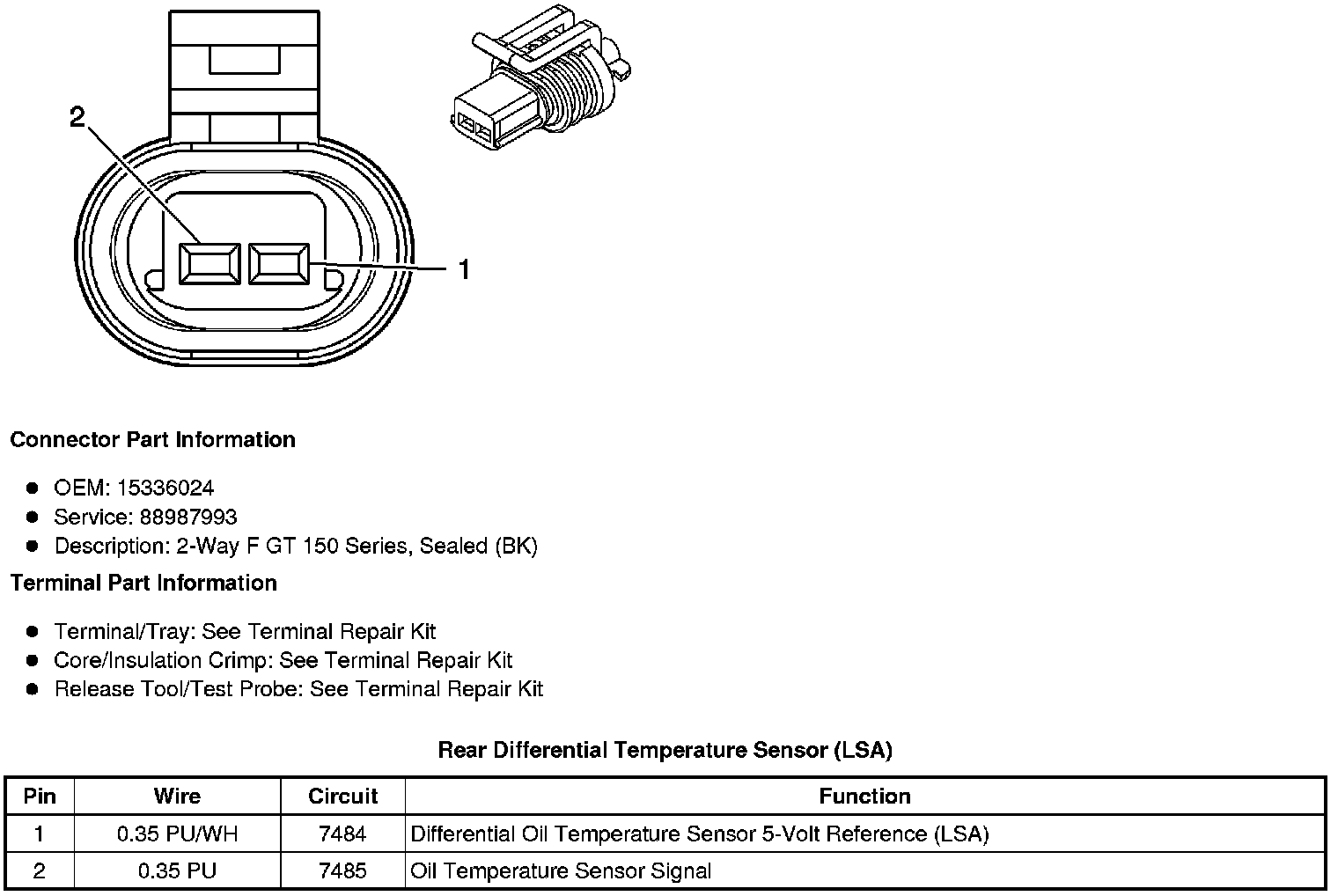

Component Connector End Views
Rear Differential Temperature Sensor (LSA)
