Fuel Injector




Component Connector End Views

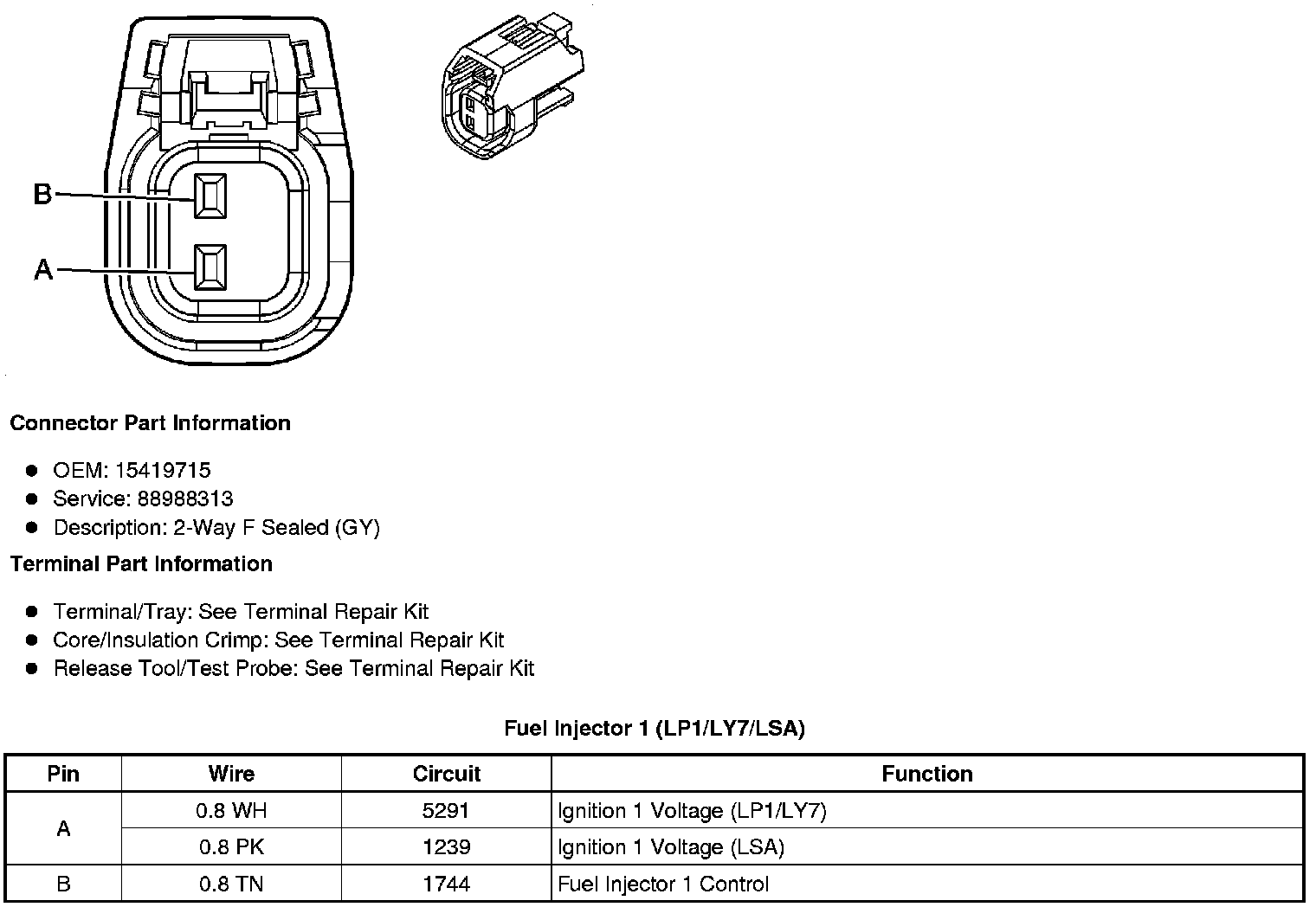

Fuel Injector 1 (LP1/LY7/LSA)

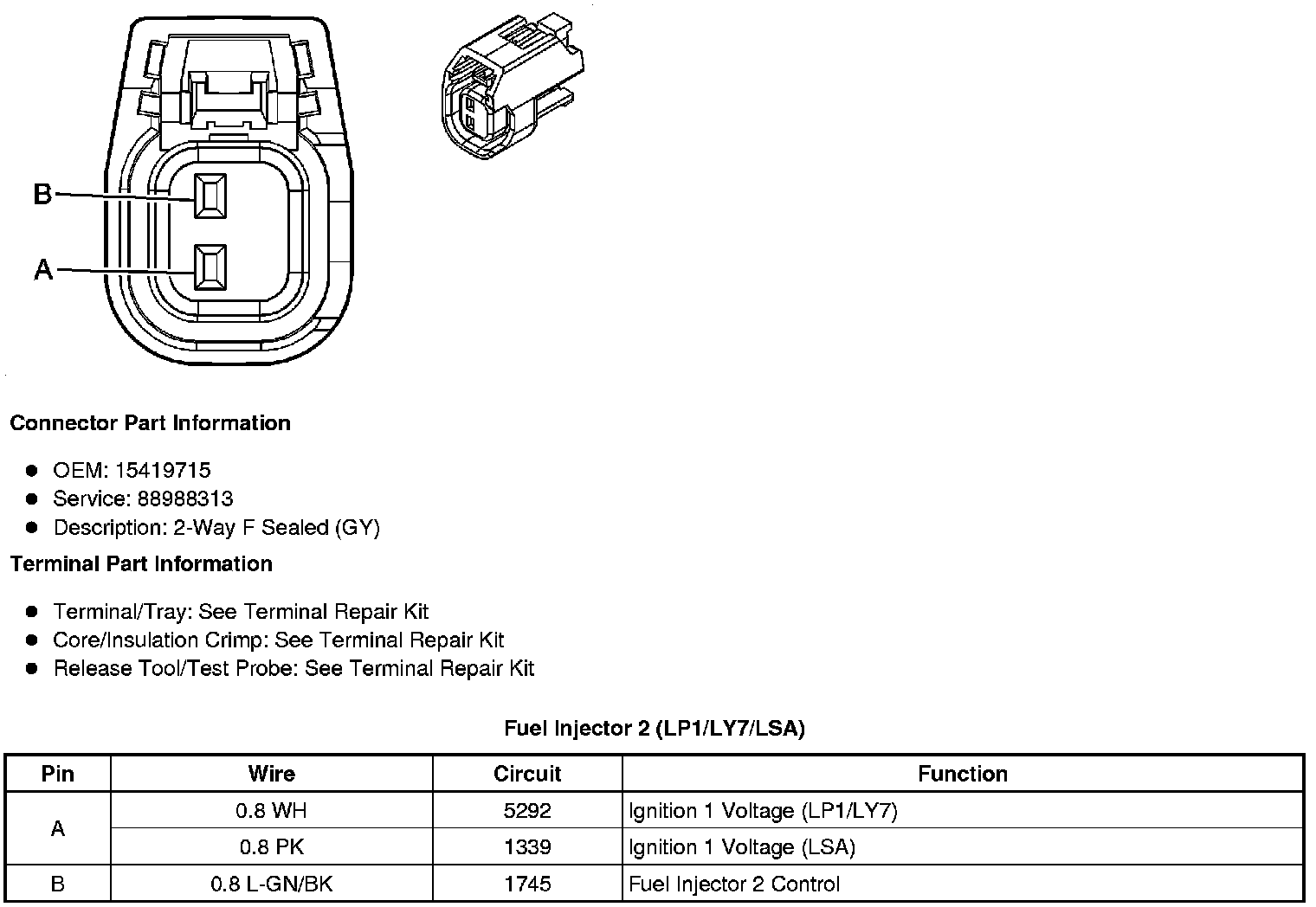

Fuel Injector 2 (LP1/LY7/LSA)






Fuel Injector 3 (LP1/LY7/LSA)






Fuel Injector 4 (LP1/LY7/LSA)






Fuel Injector 5 (LP1/LY7/LSA)

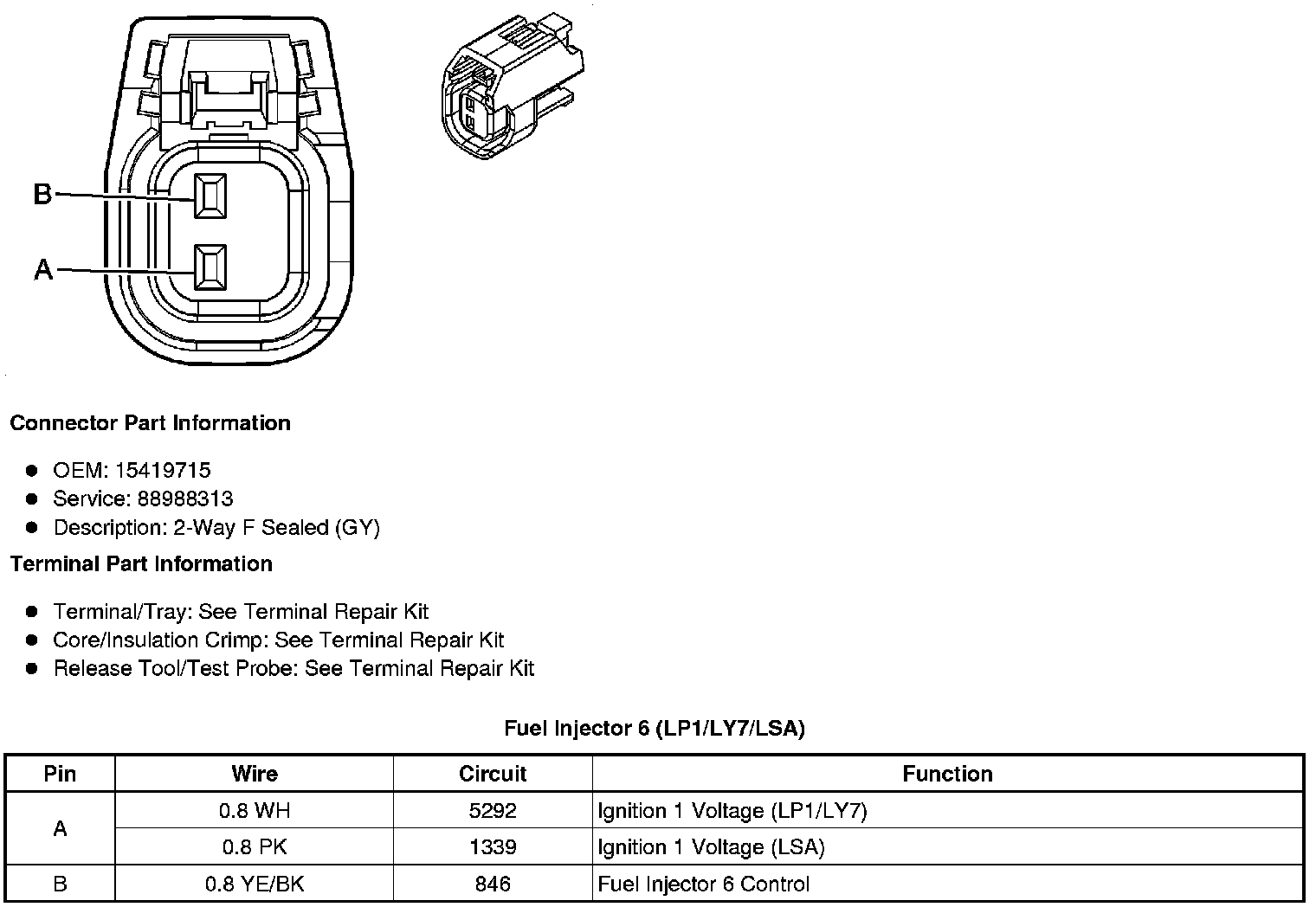

Fuel Injector 6 (LP1/LY7/LSA)

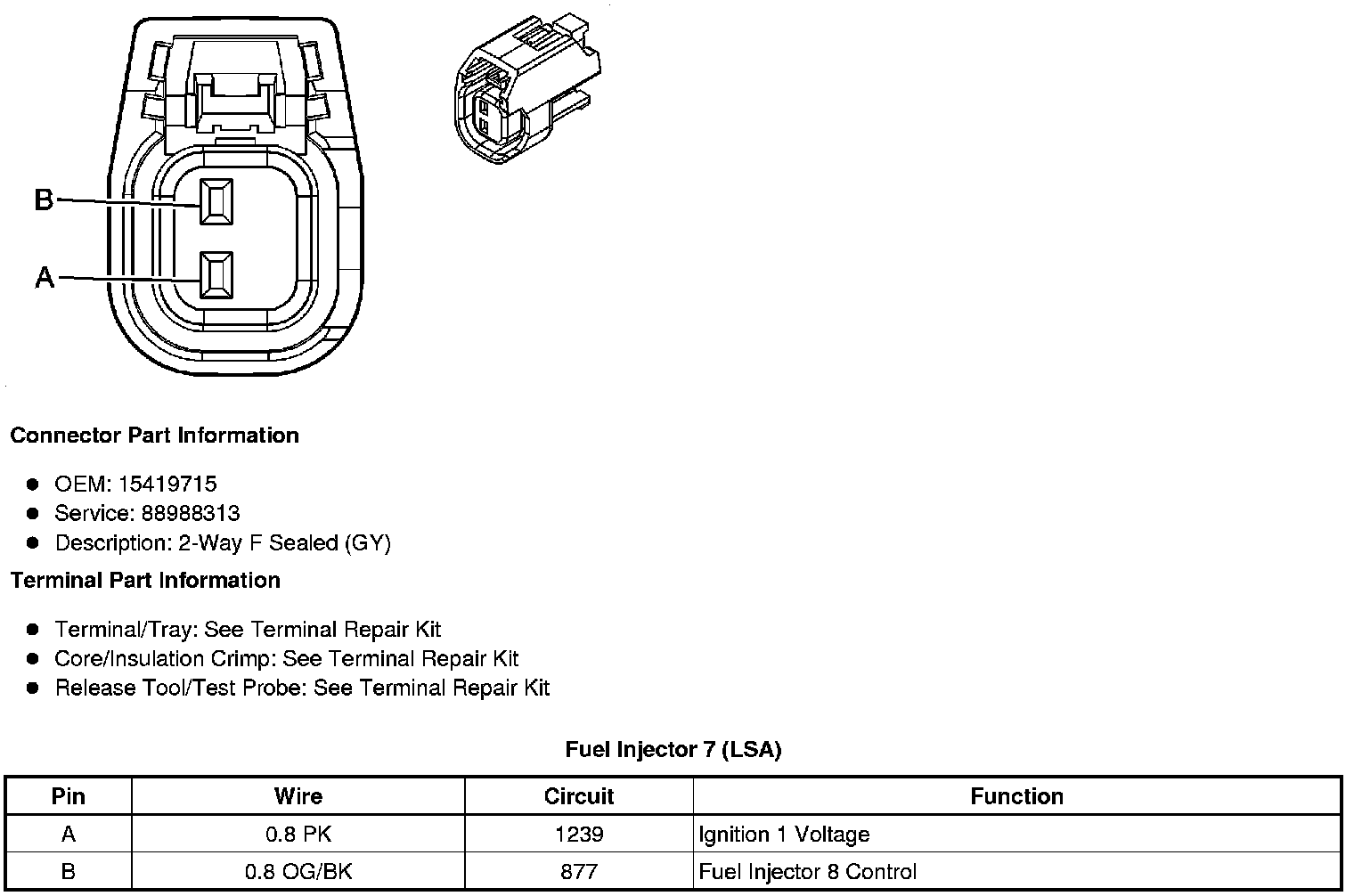

Fuel Injector 7 (LSA)

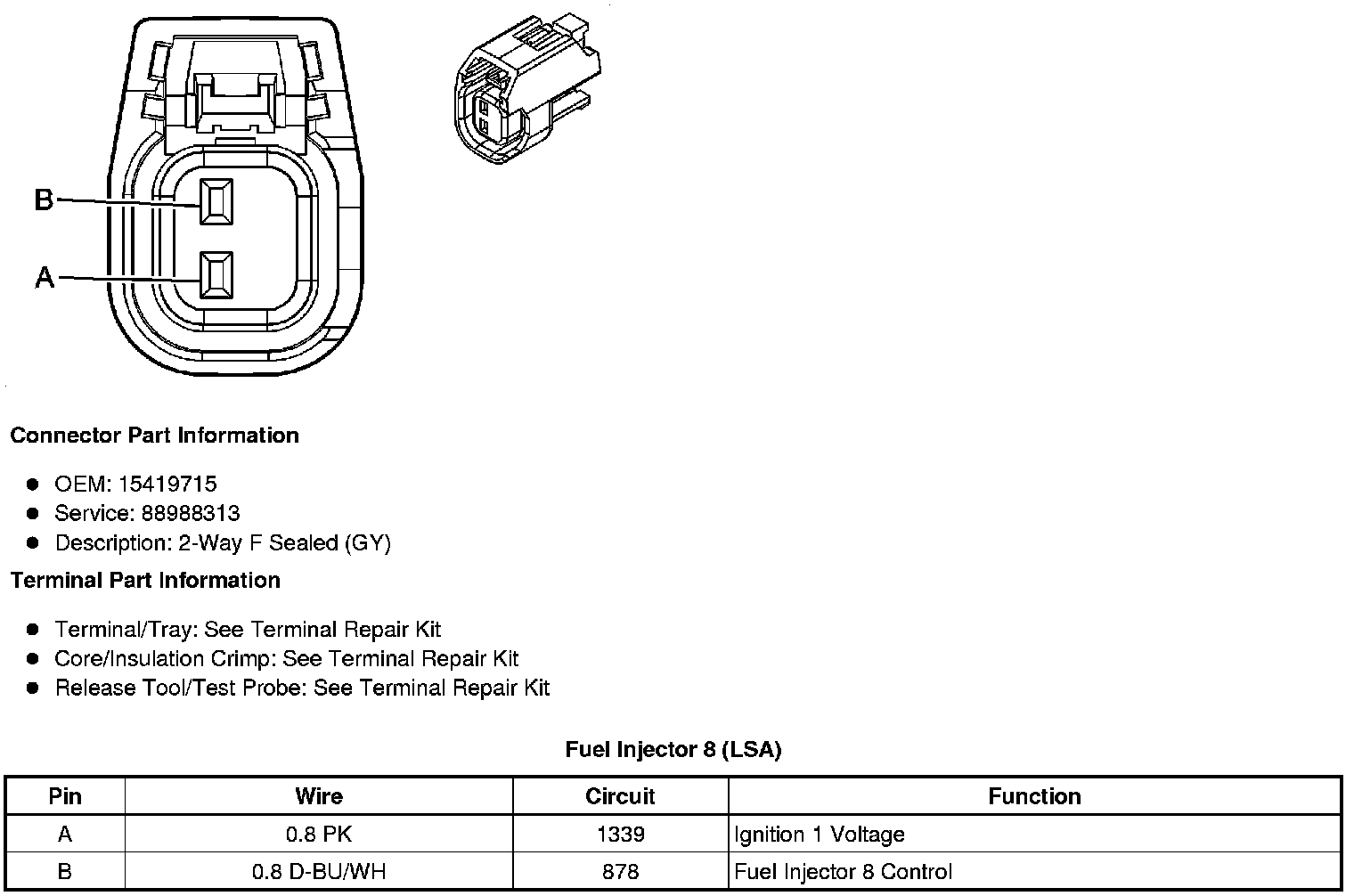

Fuel Injector 8 (LSA)
