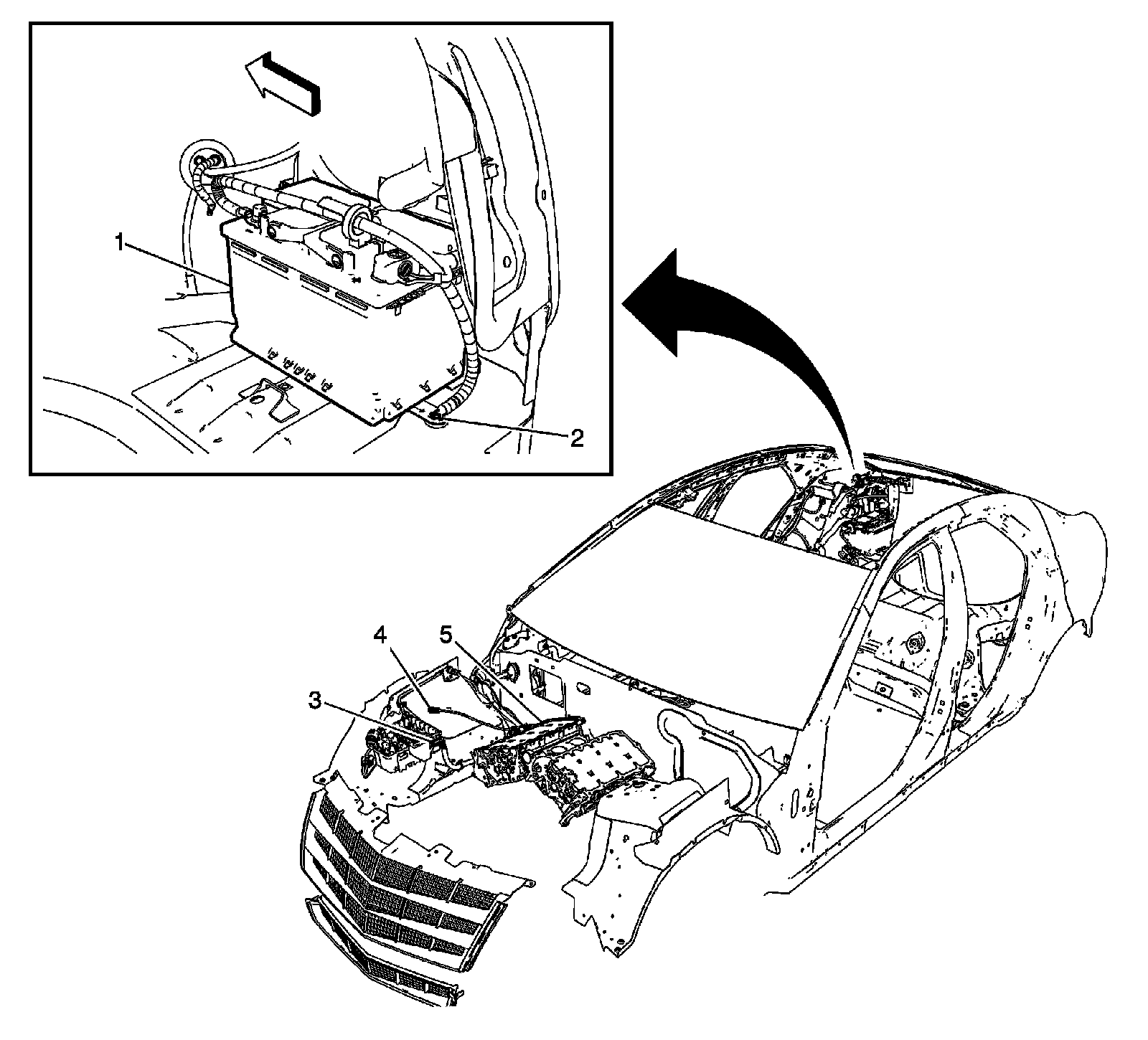

Engine Compartment Views




Harness Routing Views

Engine Electrical Components




1 - Battery
2 - G405
3 - Battery Cable Positive Voltage Stud
4 - G134
5 - G106
